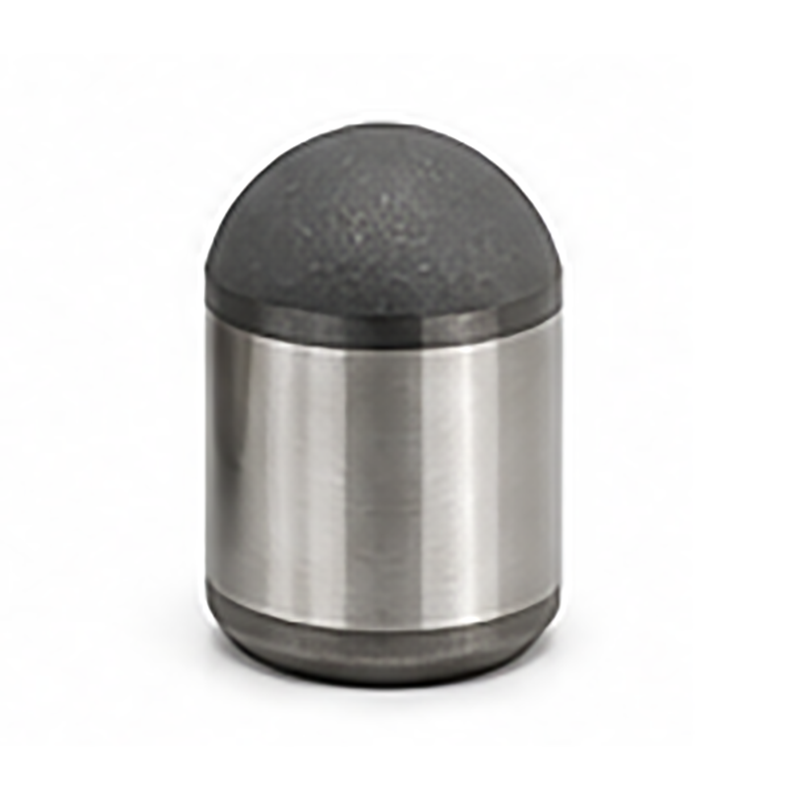

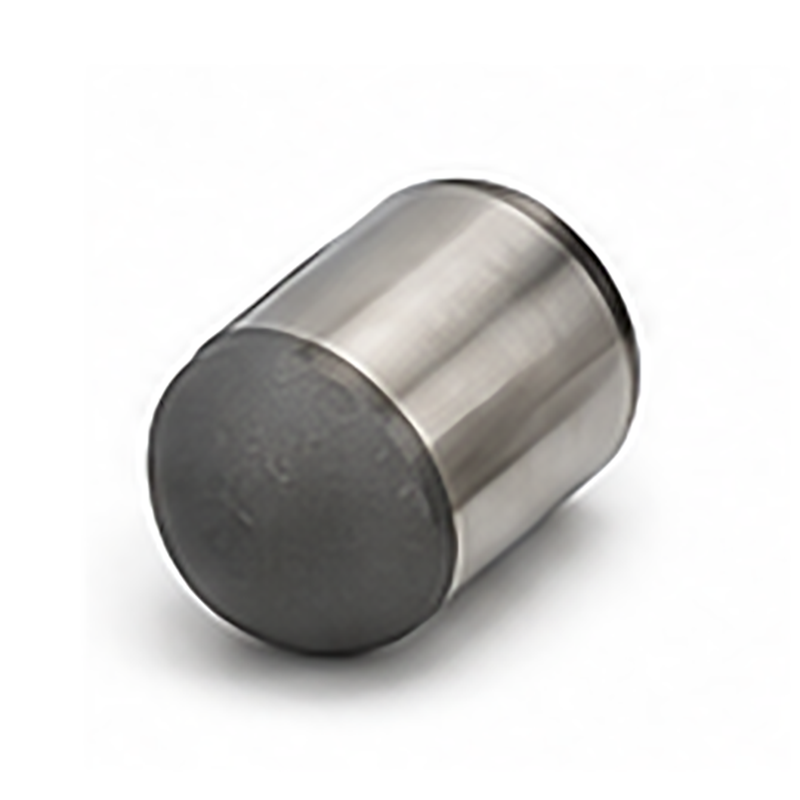

13mm PDC Dome Cutter – DC1318
Cutter Type: Dome
Application: PDC bit
Advantages: Enhanced wear resistance, impact resistance, Superior formation adaptability
Quality Certification: ISO 9001
Zati:
13mm PDC Dome Cutter – DC1318 :
Product Specification
Model: DC1318
Cutter Type: Dome PDC cutter
Diameter: 13.06 mm
Total Height: 18.0 mm
SR Radius: 6.70 mm
Diamond Layer: Premium Polycrystalline Diamond
Substrate: Tungsten Carbide
Surface Finish: Precision Ground
Manufacturing Process: HPHT Sintered
Application: DTH Drill Bits
Rock Formation: Hard & Abrasive Formations
Product Description
DC1318 PDC Dome Cutter for High-Impact Rock Drilling
The DC1318 PDC Dome Cutter is designed for drilling applications where both impact strength and abrasion resistance are critical. Manufactured by bonding a premium polycrystalline diamond layer to a high-strength tungsten carbide substrate using advanced HPHT technology, the cutter delivers stable performance in demanding drilling conditions.
With a 13.06 mm diameter, 18.0 mm overall height, and an optimized 6.70 mm spherical radius, the DC1318 provides excellent load distribution during drilling. The dome geometry helps reduce localized stress while improving resistance to chipping and premature wear.
Applications
The DC1318 PDC Dome Cutter is widely used for manufacturing and repairing:
- DTH hammer drill bits
- Mining drill bits
- Water well drill bits
- Quarry drilling tools
- Geothermal drilling equipment
- Blast hole drilling tools
- Foundation drilling tools
- Hard rock drilling systems
Key Features
- High-quality polycrystalline diamond table
- Excellent impact resistance
- Superior wear resistance in abrasive formations
- Optimized dome geometry
- Precision-ground dimensions
- High bonding strength between PDC layer and carbide substrate
- Consistent quality for mass production
- Long drilling service life
Why Choose Our DC1318 Dome Cutter?
Available Customization: We can manufacture DC1318 PDC Dome Cutters according to customer
• requirements, including:
• Diamond layer thickness
• Surface finish
• Dimensional tolerance
• Edge chamfer
• PDC grade selection
• OEM laser marking
• Customized packaging
