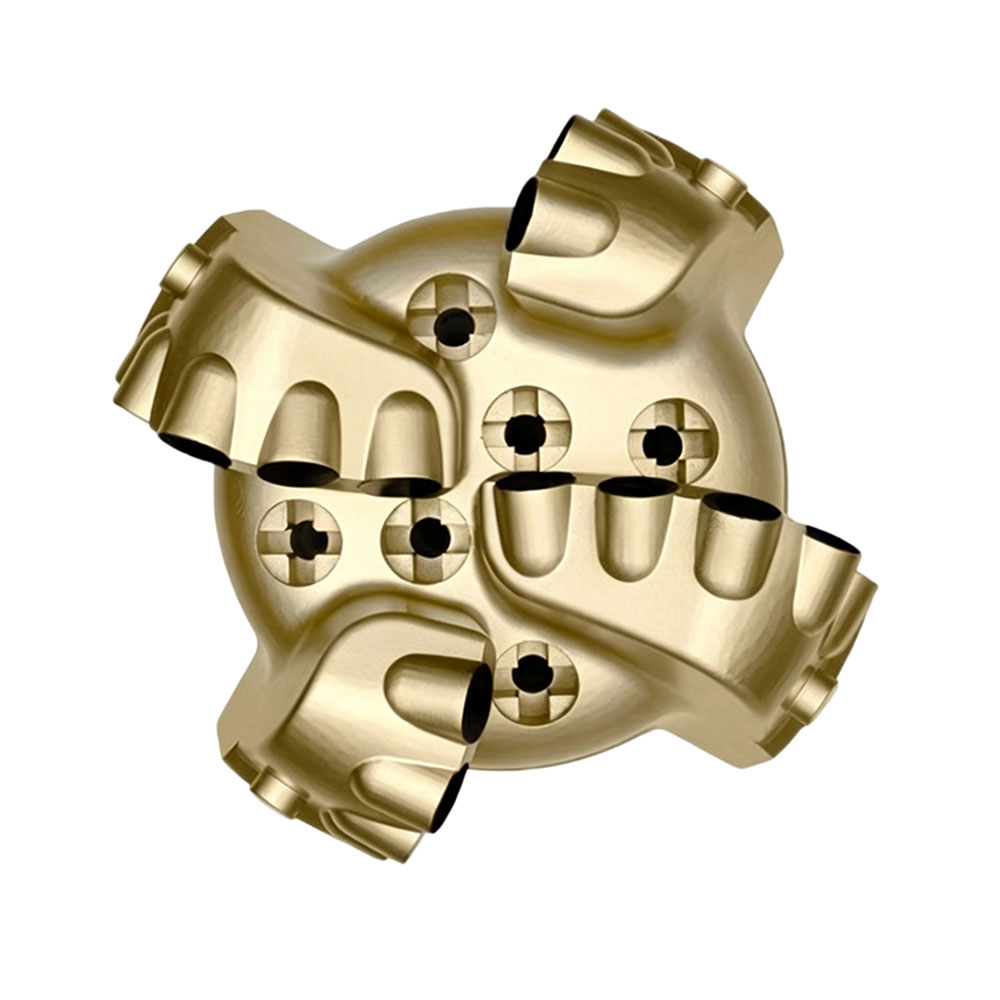

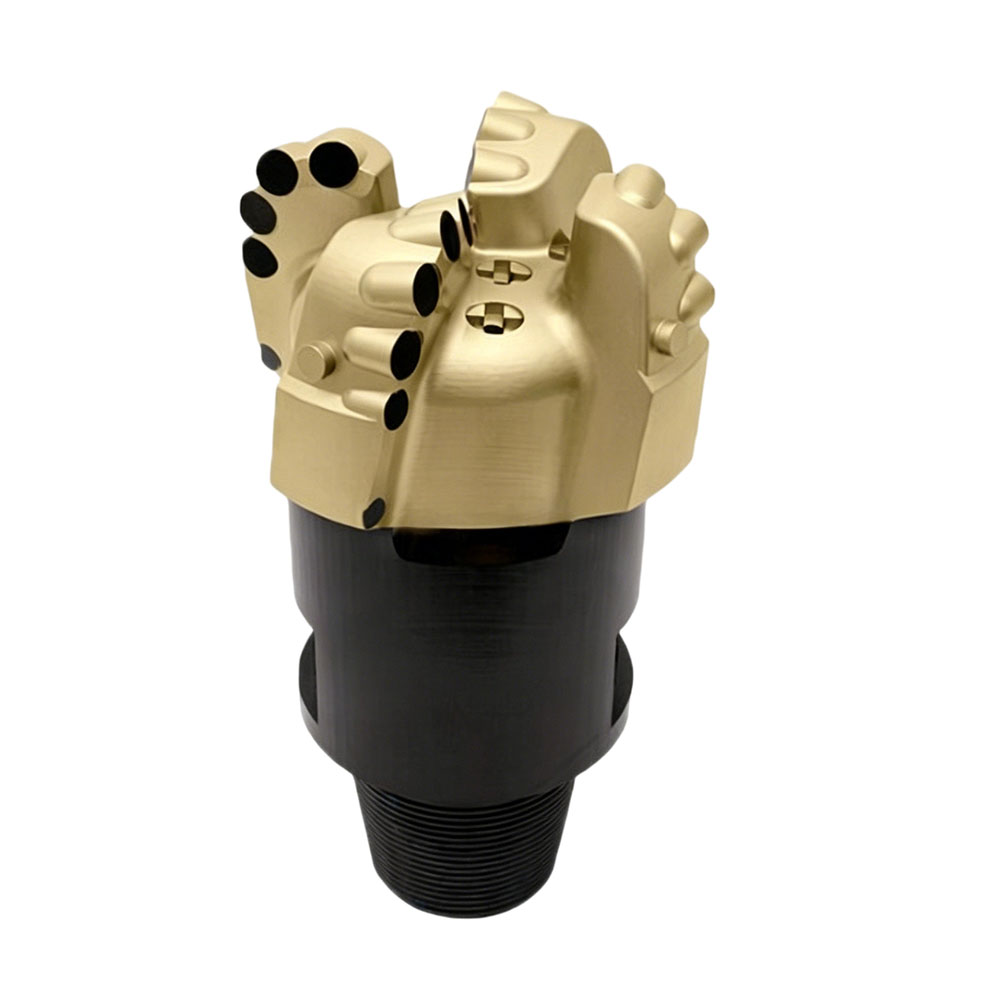

7-1/2" M123 4-Blade PDC Bit
Bit Size: 7-1/2 inch
IADC Code: M123
Blades: 4
Cutter Size: φ19 mm
Request a quote for detailed information (MOQ, price, delivery)
Share:
7-1/2" M123 4-Blade PDC Bit :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Bit Size: 7-1/2"
· IADC Code: M123
· Blades: 4
· Cutter Size: φ19 mm
· Cutter Quantity: 20
· Nozzle Quantity: 6
· Gauge Length: 55 mm
· Connection: 4-1/2” API REG
· Net / Gross Weight: 43 / 59 kg
· Body Material: Tungsten Carbide Matrix
· 20% Erosion Resistance + JFA + Anti-Balling
Product Description
The 7-1/2" M123 4-blade PDC bit combines a tungsten carbide matrix body (20% erosion resistance improvement) with large φ19mm dual-row cutters, JFA-optimized hydraulics, and dynamic flow simulation — delivering aggressive ROP, durability, and anti-balling performance.
Features
· Advanced Tungsten Carbide Matrix Body: 20% improvement in erosion resistance compared to previous matrix bits — less cutting structure and bit body damage.
· 4-Blade JFA (Junk Flowed Area) Optimization: Only 4 blades maximize the junk flowed area, allowing efficient cuttings evacuation and preventing balling.
· Large φ19mm PDC cutters: Largest cutter size available — provides aggressive penetration and high ROP.
· Dual Row Cutter Layout – Without Sacrificing Aggressiveness: With only 4 blades, the dual row cutter layout maintains aggressiveness while achieving desired ROP and durability.
· Multi-Optimized Force Balance: Optimized cutting structure increases bit stability and cutting efficiency during drilling.
· Dynamic Flow Simulation Technology: Used for hydraulic design — optimizing nozzle quantity and placement to ensure optimum bottom hole flow patterns and anti-balling performance.
· Advanced GRT-Series Cutters: Premium GRT-series cutters endure frictional heat generated during drilling. Improved abrasion resistance maintains a sharp drilling edge for higher ROP.
