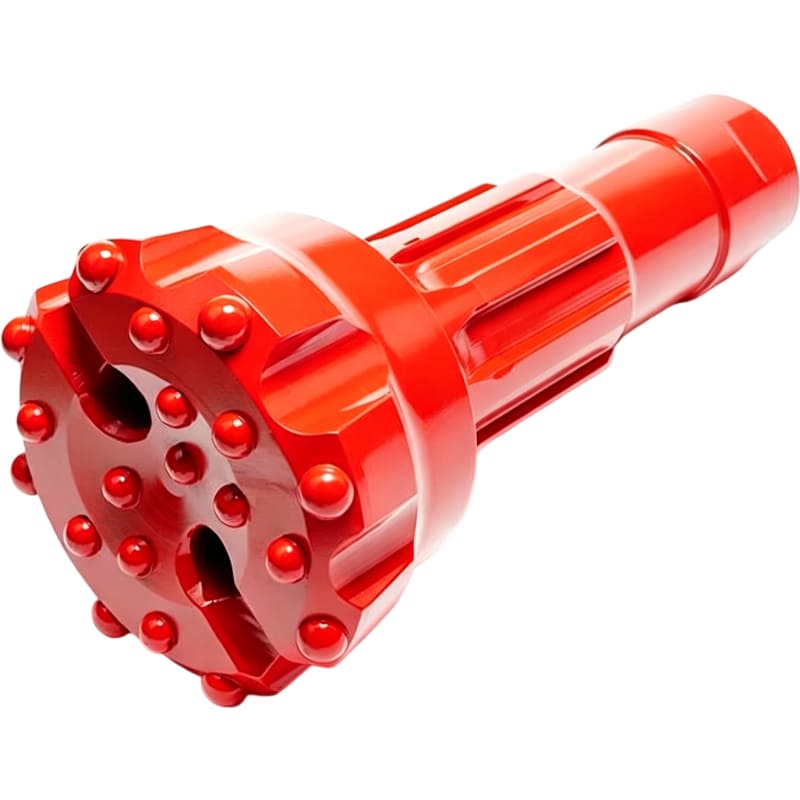

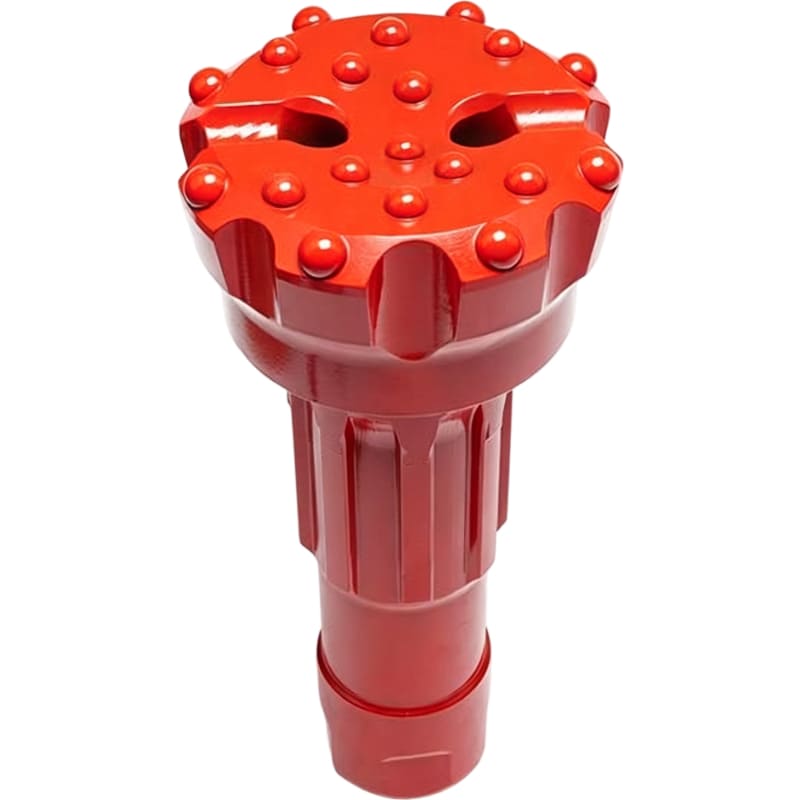

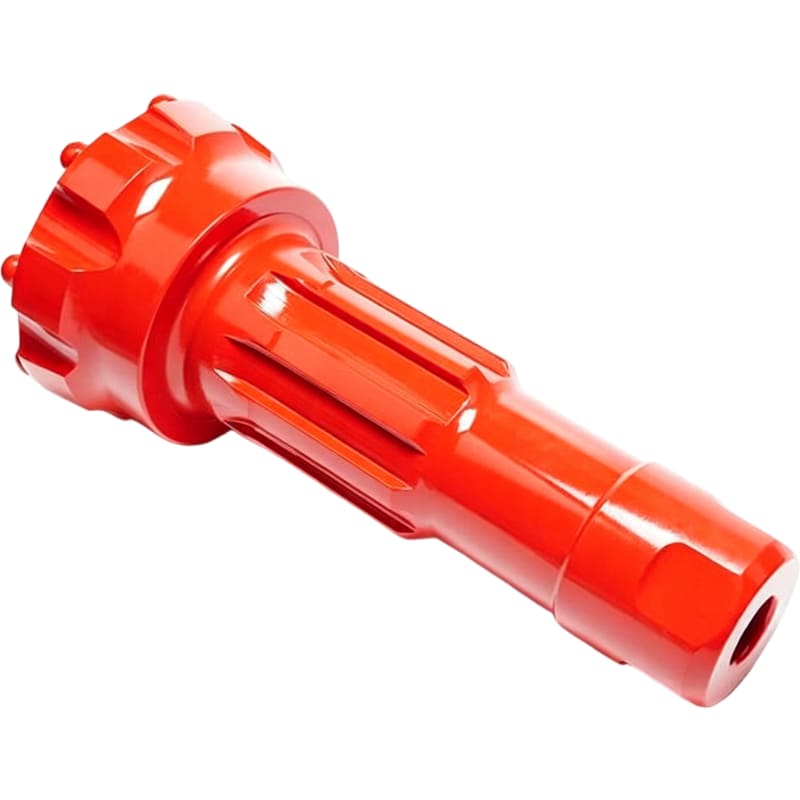

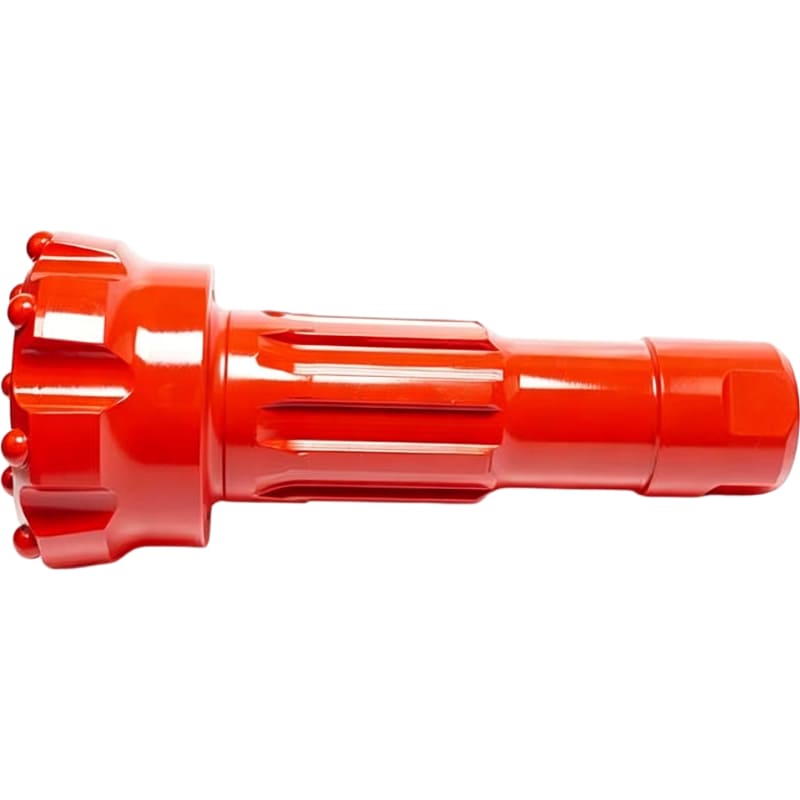

165mm DHD360-165 DTH Drill Bit with Premium PDC Cutters for Water Well & Deep Hole Drilling
Code No.: DHD360-165
Diameter: 165 mm
Inserts: PDC cutters
Face Design: Concave
Request a quote for detailed information (MOQ, price, delivery)
Share:
165mm DHD360-165 DTH Drill Bit with Premium PDC Cutters for Water Well & Deep Hole Drilling :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Bit Type: DTH Hammer Bit
· Code No.: DHD360-165
· Diameter: 165 mm
· Shank Type: DHD360
· Air Holes: 2
· Gauge Buttons: 8 × φ18mm
· Face Buttons: 11 × φ16mm
· PDC cutter Type: Dome PDC Cutters
· PDC Cutter Function: Gauge Protection & Hole Straightness
· Face Design: Concave
· Application: Water Well Drilling
The embedded PDC cutter configuration improves drilling stability and minimizes gauge wear, making this drill bit an excellent choice for water well drilling, geothermal drilling, deep foundation construction, and other long-hole drilling applications requiring consistent hole quality.
Product Description

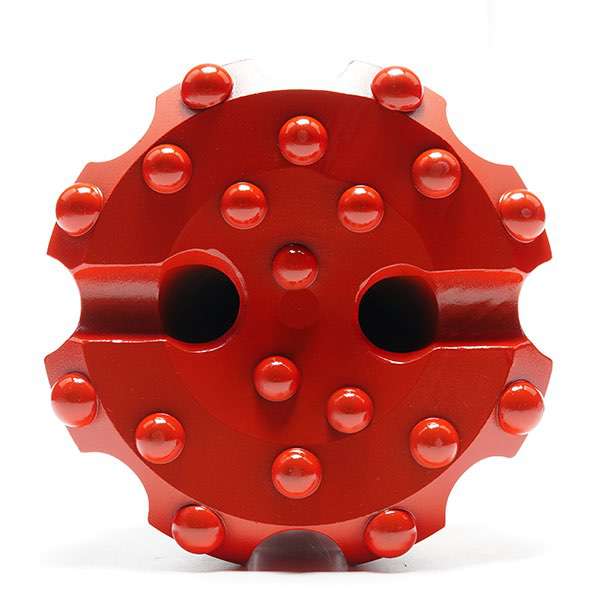

The DHD360-165 DTH hammer bit features a concave face design with 19 dome carbide buttons and DHD360 shank. Engineered for water well drilling applications, it delivers good hole deviation control and excellent flushing capacity in medium hard to hard rock formations.
Embedded PDC Cutters for Reliable Deep Hole Drilling
The DHD360-165 DTH drill bit is engineered with strategically embedded premium PDC cutters to improve gauge protection and drilling stability during deep hole operations. By reinforcing the gauge area with wear-resistant PDC cutters, the bit maintains consistent hole diameter while reducing edge wear in abrasive formations.
Combined with a concave face design and high-strength dome carbide buttons, this hybrid drilling structure delivers smooth penetration, excellent hole straightness, and dependable performance throughout extended drilling cycles. It is particularly well suited for water well drilling, geothermal wells, and foundation projects where drilling accuracy, durability, and long service life are essential.
Features
· Concave Face Design – All-around application bit face specifically for medium hard and homogeneous rock formations. Provides good hole deviation control and good flushing capacity.
· 19 Dome Carbide Buttons – 8 gauge buttons (φ18mm) & 11 face buttons (φ16mm) for balanced cutting action and long service life.
· Dome/Hemispherical Buttons – Universal buttons for all rock formations, best suited to hardest and very abrasive rock formations.
· DHD360 Shank Type – Compatible with DHD360 series DTH hammers for reliable performance.
· Water Well Drilling Application – Specifically engineered for water well drilling operations.
Advantages of Embedded PDC Cutters
· Embedded premium PDC cutters for enhanced gauge protection
· Concave face design for improved hole straightness
· Stable drilling performance during continuous deep hole operations
· Excellent wear resistance in medium-hard and hard rock formations
· High-strength dome carbide buttons for superior impact resistance
· Ideal for water well, geothermal, and foundation drilling
