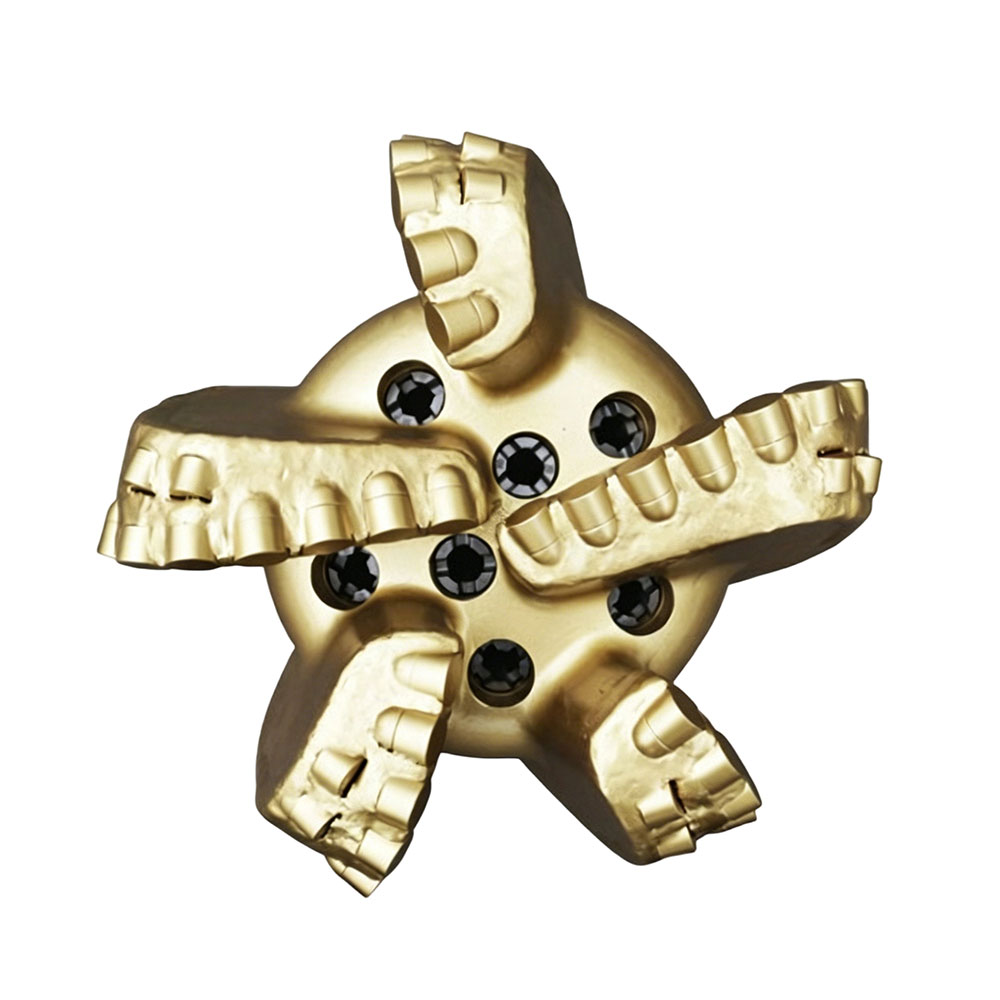

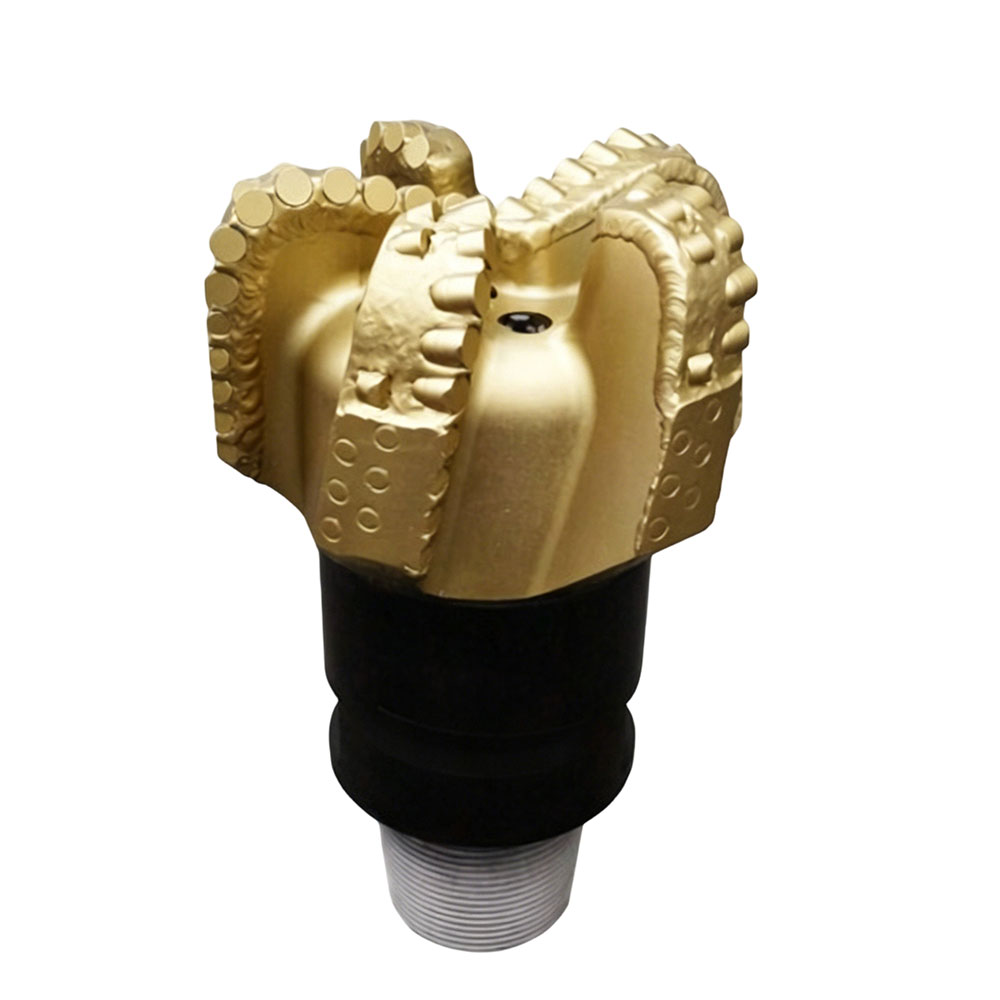

12 1/4" S423 5-Blade PDC Bit
Bit Size: 12-1/4 inch
IADC Code: S423
Blades: 5
Cutter Size: φ13mm;φ16mm; φ19mm
Request a quote for detailed information (MOQ, price, delivery)
Share:
12 1/4" S423 5-Blade PDC Bit :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Bit Size: 12-1/4"
· IADC Code: S423
· Blades: 5
· Cutter Size: φ13 mm; φ16 mm; φ19 mm
· Cutter Quantity: φ16×49; φ13×56; φ19×35
· Nozzle Quantity: 7
· Gauge Length: 80 mm
· Connection: 6-5/8” API REG
· Net / Gross Weight: 105 / 130 kg
Product Description
The 12-1/4" S423 5-blade PDC bit features triple mixed cutters (φ13/φ16/φ19mm) and dual-row layout, with FBS-optimized cutter angles for superior aggressiveness, durability, and interbedded lithology performance.
Features
· Triple Mixed Cutter Sizes – φ13 / φ16 / φ19mm: Strategically combines three cutter sizes for optimal performance across variable formations.
· Dual Row Cutter Layout: Extends aggressiveness and durability compared to single-row designs.
· FBS-Optimized Cutter Angles: Optimized in both axial and radial directions for stronger aggressiveness and enhanced durability.
· Interbedded Lithology Advantage: Provides multiple advantages in interbedded formations with mixed hardness.
· Enhanced Bit Stability: BHA shock and vibration mitigation for smoother drilling.
· Anti-Balling Design: Increase cleaning and reduce balling in sticky formations.
· Advanced PDC cutter Technology: Perfect performance on impact strength resistance and abrasive resistance.
· FEA-Optimized Cutter Layout: Reduces NPT and improves overall drilling efficiency.
· DOC Optimization: Calculated from field experience for rational formation penetration.
· Spiral Blade Design: Effectively improves stability and ROP.
