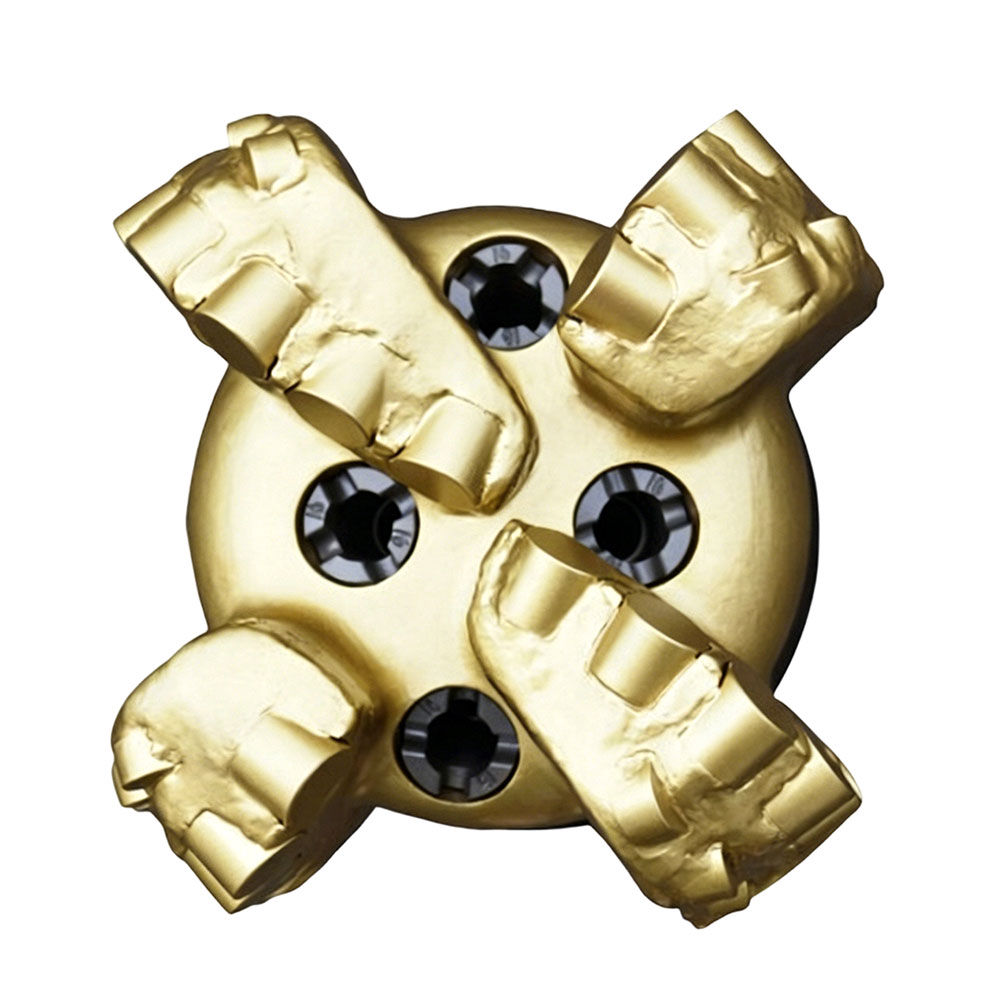

6" S323 4-Blade Anti-Balling PDC Bit
Bit Size: 6 inch
IADC Code: S323
Blades: 4
Cutter Size: φ13mm;φ16mm
Request a quote for detailed information (MOQ, price, delivery)
Share:
6" S323 4-Blade Anti-Balling PDC Bit :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Bit Size: 6"
· IADC Code: S323
· Blades: 4
· Cutter Size: φ13 mm; φ16 mm
· Cutter Quantity: φ16×19; φ13×19
· Nozzle Quantity: 6
· Gauge Length: 45 mm
· Connection: 3-1/2” API REG
· Net / Gross Weight: 21 / 31 kg
Product Description
Bit balling in clay/shale drilling severely limits ROP and causes swabbing during tripping. The 6" S323 4-blade anti-balling PDC bit (S323-4AB) solves this with optimized JFA, dual-row cutters, dynamic flow simulation, and advanced GRT-series cutters — delivering high ROP without sacrificing durability.
The Problem
- The Challenge: Bit Balling in Clay/Shale Formations
In clay and shale drilling environments, bit balling is a critical issue that severely limits PDC bit performance:
· Lower ROP – cutters become clogged with sticky clay
· Swabbing during tripping – increased drag and stuck pipe risk
· Reduced drilling efficiency – operators often lower RPM & WOB and increase SPM, sacrificing performance
Conventional solutions force operators to compromise between ROP and bit life. The S323-4AB changes that.
Features
· 4-Blade JFA (Junk Flowed Area) Optimization: Only 4 blades maximize the junk flowed area, allowing efficient cuttings evacuation and preventing balling.
· Dual Row Cutters – Without Sacrificing Aggressiveness: With only 4 blades, the dual row cutter layout maintains aggressiveness while achieving desired ROP and durability — free from bit balling.
· Multi-Optimized Force Balance: Optimized cutting structure increases bit stability and cutting efficiency during drilling.
· Dynamic Flow Simulation Technology: Used for hydraulic design — optimizing nozzle quantity and placement to ensure optimum bottom hole flow patterns and anti-balling performance.
· Advanced Hardfacing Material: Enhanced abrasion resistance and erosion resistance for longer bit life.
· Advanced GRT-Series Cutters: Premium GRT-series cutters endure frictional heat generated during drilling. Improved abrasion resistance maintains a sharp drilling edge for higher ROP.
