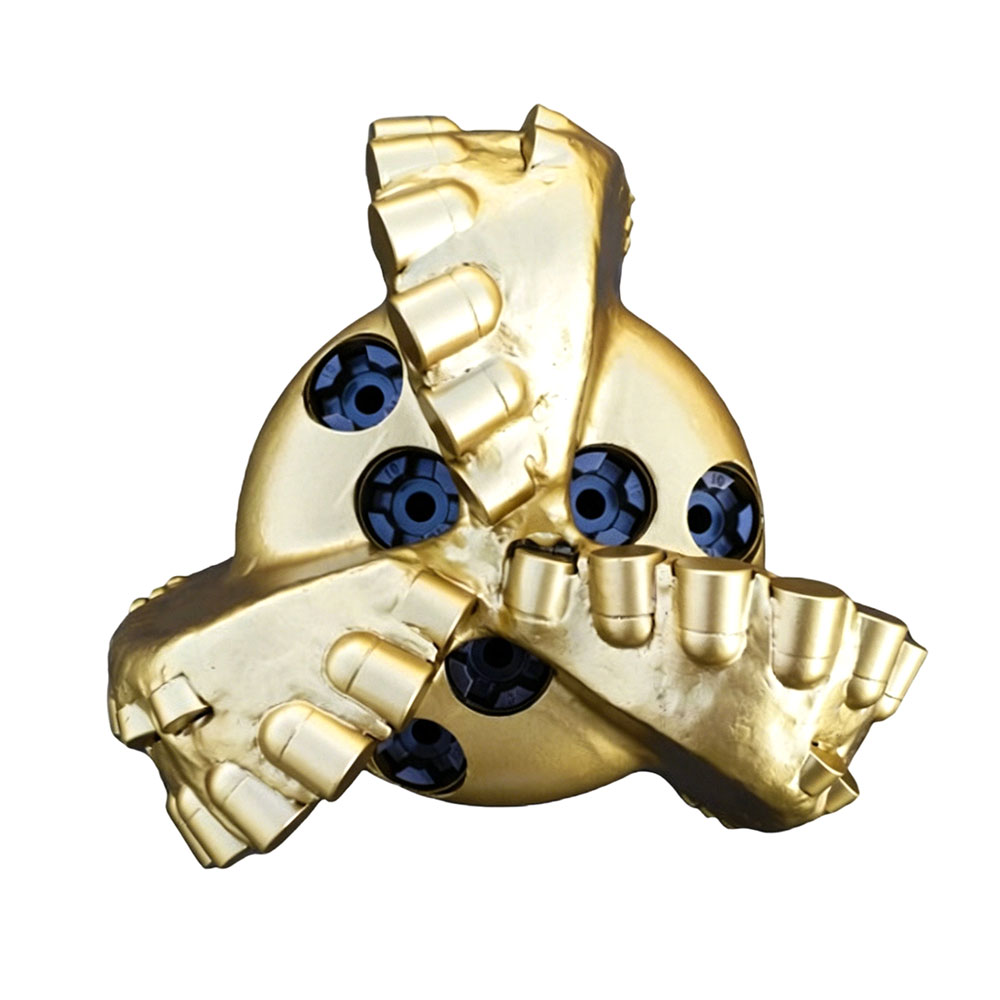

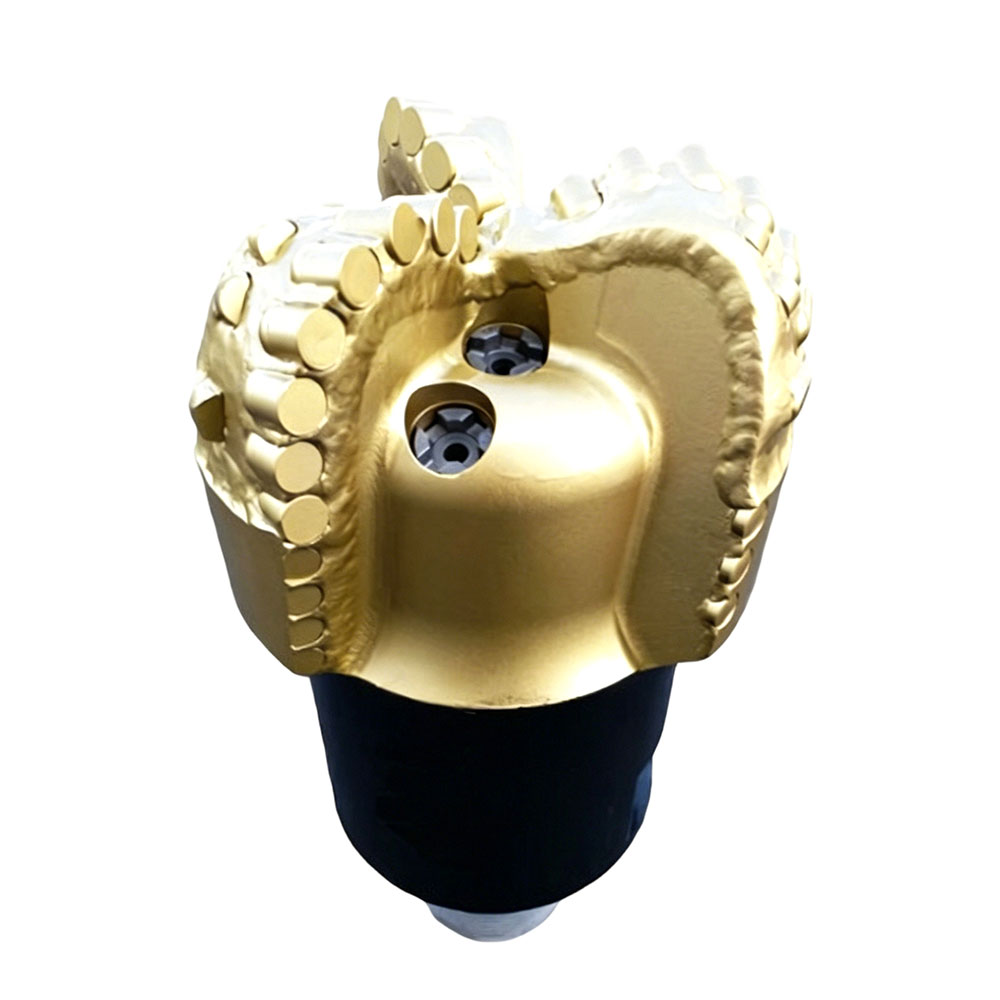

8-1/2" S223 3-Blade PDC Bit
Bit Size: 8 1/2 inch
IADC Code: S223
Blades: 3
Cutter Size: φ13mm;φ16mm
Request a quote for detailed information (MOQ, price, delivery)
Share:
8-1/2" S223 3-Blade PDC Bit :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Bit Size: 8-1/2"
· IADC Code: S223
· Blades: 3
· Cutter Size: φ13 mm; φ16 mm
· Cutter Quantity: φ16×24; φ16×3; φ13×18
· Nozzle Quantity: 6
· Gauge Length: 55 mm
· Connection: 4-1/2” API REG
· Net / Gross Weight: 47 / 62 kg
Product Description
The 8-1/2" S223 3-blade PDC bit delivers 53% higher blade standoff than matrix bits, maximizing junk slot area for superior cuttings evacuation, cooling, and anti-balling — with dual row cutters maintaining high ROP and durability.
Features
· 3-Blade Design – Maximized Junk Slot Area: Three blades provide the sharpest and largest junk slot area, significantly improving cuttings evacuation, cleaning, cooling, and reducing bit balling risk.
· 53% Higher Blade Standoff vs Matrix Bits: Advanced GS-series engineering delivers 53% higher blade standoff without sacrificing blade durability — resulting in greater open face volume for faster ROP and better hydraulics.
· Dual Row Cutters – Maintaining Aggressiveness: Despite only 3 blades, the dual row cutter layout achieves high drilling efficiency without sacrificing aggressiveness.
· Multi-Optimized Force Balance: Optimized cutting structure increases bit stability and cutting efficiency during drilling.
· Dynamic Flow Simulation Technology: Used for hydraulic design — optimizing nozzle quantity and placement to ensure optimum bottom hole flow patterns and anti-balling performance.
· Advanced Hardfacing Material: Enhanced abrasion resistance and erosion resistance for longer bit life.
· Advanced GRT-Series Cutters: Premium GRT-series cutters endure frictional heat generated during drilling. Improved abrasion resistance maintains a sharp drilling edge for higher ROP.
