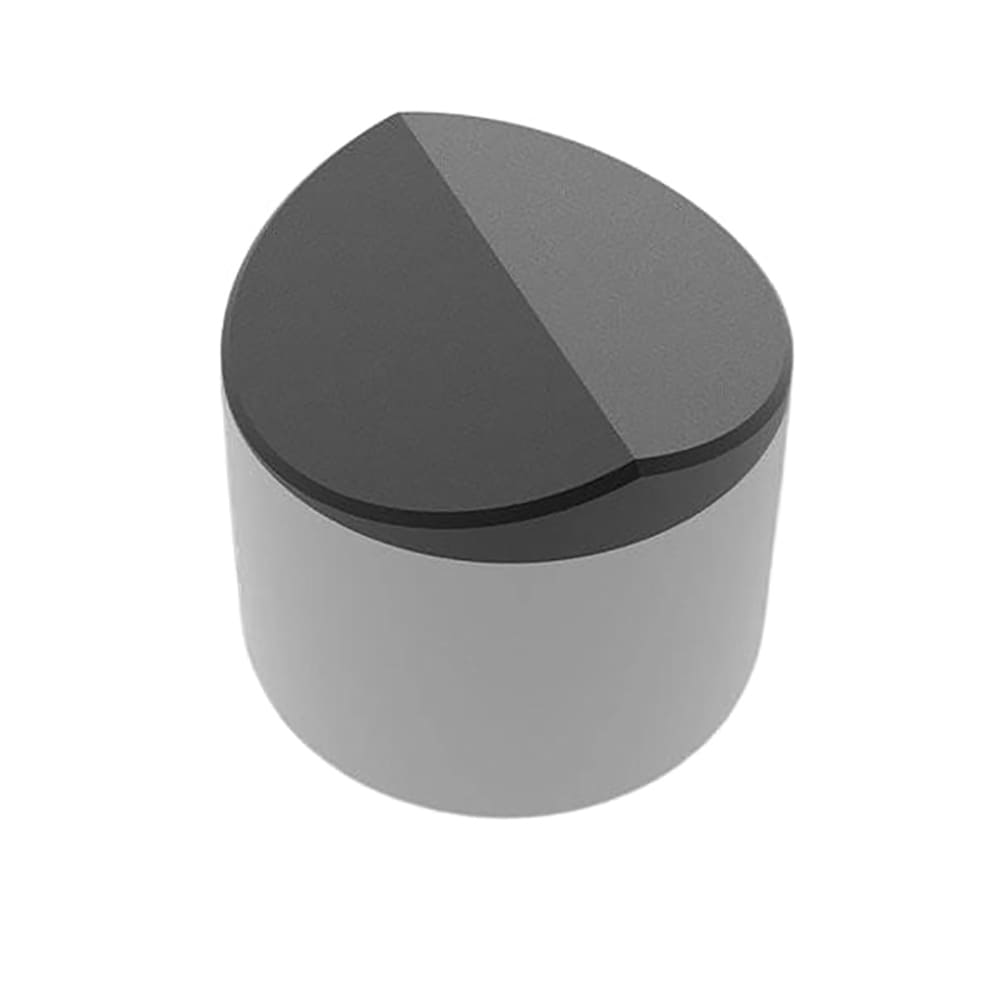

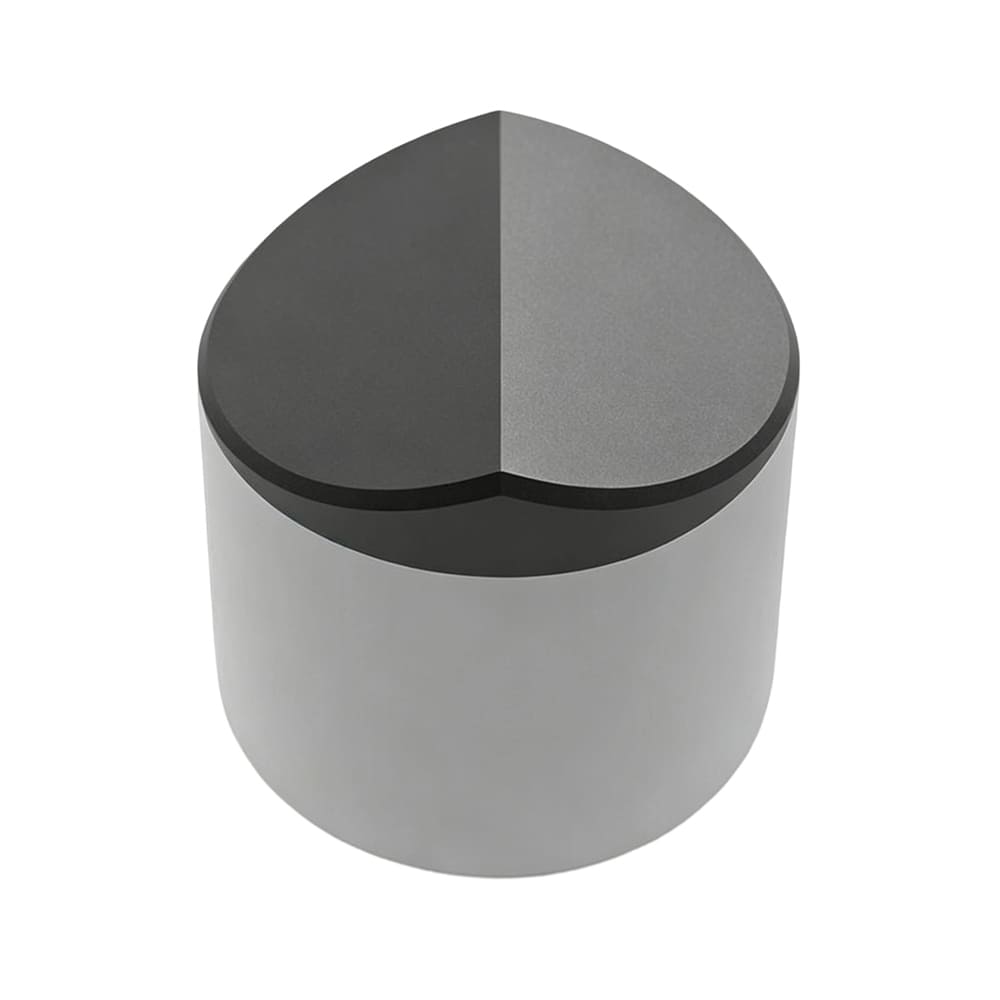

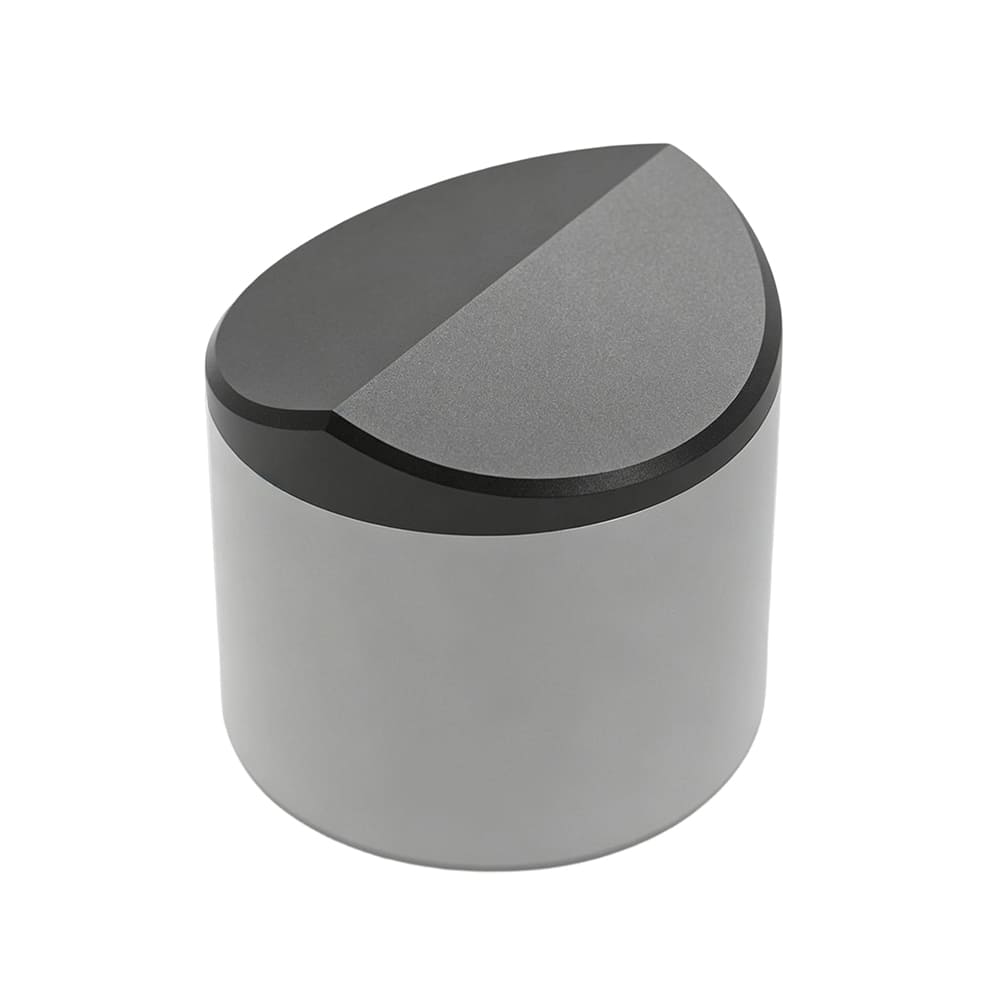

13mm RC1313 PDC Ridged Cutter | Polycrystalline Diamond Compact Cutter for Oil & Gas Drilling
Diameter: 13.00 mm
Height: 13.0 mm
Diamond layer thickness: 2.0~3.0 mm
Quality Certification: ISO 9001
Request a quote for detailed information (MOQ, price, delivery)
Share:
13mm RC1313 PDC Ridged Cutter | Polycrystalline Diamond Compact Cutter for Oil & Gas Drilling :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: RC1313
· Product Type: PDC Ridged Cutter
· Tooth Shape: Ridged
· Diameter (mm): 13.00
· Total Height (mm): 13.0
· Diamond Height (mm): 2.0~3.0
· Manufacturing Process: HPHT Sintering
· Substrate: Tungsten Carbide
· Application: The RC1313 PDC Ridged Cutter is suitable for:
- Oil and gas drilling
- PDC drill bits
- Oil drilling tools
- Directional drilling tools
- Downhole drilling applications
- Formation cutting
- Rock drilling tools
Product Description
The RC1313 PDC Ridged Cutter is a 13 mm PDC cutting element with a 13 mm total height and 2.0–3.0 mm diamond height. Its extended body configuration and specialized ridged cutting profile are designed for controlled formation engagement and durable cutting performance in oil and gas drilling tools.
RC1313 PDC Ridged Cutter for Oil & Gas Drilling
The RC1313 PDC Ridged Cutter is a specialized Polycrystalline Diamond Compact cutting element designed for PDC drilling tools requiring a ridged, non-planar cutting structure.
With a 13 mm diameter and 13 mm total height, RC1313 has a taller overall configuration than the RC1308 model. This provides an alternative cutter geometry for drill bit designs where additional cutter height is required as part of the cutting structure.
The cutter incorporates a 2.0–3.0 mm diamond height, providing the active PDC working section for formation cutting and wear resistance.
The ridged working profile creates a specialized contact geometry between the cutter and formation. Instead of relying on a conventional flat cutting face, the raised structure provides a different interaction with the rock during drilling.
RC1313 combines a polycrystalline diamond layer with a tungsten carbide substrate. The diamond layer performs the primary cutting function, while the carbide substrate provides mechanical support for integration into the drilling tool.
RC series
The RC series PDC Parabolic Cutters are available in various dimensions to meet different bit designs and rock cutting requirements. Standard models are listed below.
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) |
RC1308 | 13.00 | 8.0 | 2.0~3.0 |
RC1313 | 13.00 | 13.0 | 2.0~3.0 |
RC1613 | 16.00 | 13.0 | 2.0~3.0 |
RC1616 | 16.00 | 16.0 | 2.0~3.0 |
RC1913 | 19.00 | 13.0 | 2.0~3.0 |
RC1916 | 19.00 | 16.0 | 2.0~3.0 |
Note: Custom heights and chamfer angles are available for OEM orders. | |||
Key Features
- 13 mm cutter diameter
- 13 mm total height
- 2.0–3.0 mm diamond height
- Extended cutter body configuration
- Specialized ridged PDC profile
- Non-planar cutting geometry
- Polycrystalline diamond cutting layer
- Tungsten carbide substrate
- Controlled formation engagement
- High wear resistance
- Good impact resistance
- Designed for oil drilling applications
Performance Advantages
Extended 13mm Cutter Configuration - The 13 mm total height gives RC1313 a taller configuration than RC1308 while maintaining the same 13 mm diameter. This makes it suitable for PDC bit designs requiring a different cutter height within the same diameter class.
Specialized Ridged Cutting Surface - The ridged working surface creates a non-planar contact profile during formation cutting. This gives drill bit designers an alternative to conventional flat PDC cutting elements.
Controlled Formation Interaction - The raised cutting geometry can influence the way the cutter enters and interacts with the formation. This helps provide a specialized cutting mechanism for PDC drilling structures.
Durable Composite Construction - The PDC diamond layer provides a hard and wear-resistant cutting surface, while the tungsten carbide substrate supports the cutter during drilling operations.
PDC Diamond Cutting Technology
The RC1313 uses a specialized ridged PDC geometry developed for oil drilling applications.
Ridged cutters differ from conventional flat PDC cutters through their raised working structure. The non-planar profile changes the cutter-to-rock contact area and can introduce additional formation interaction during the cutting process.
With a 13 mm diameter, 13 mm total height, and 2.0–3.0 mm diamond height, RC1313 provides a taller configuration for PDC drill bit designs that require a specialized ridged cutting element.
The PDC layer is sintered onto a tungsten carbide substrate using high-temperature and high-pressure technology, forming an integrated composite cutting element.
OEM & Customization
We provide OEM and ODM services for PDC Ridged Cutters according to specific drill bit designs and drilling requirements.
Customization options include:
· Cutter diameter
· Total height
· Diamond height
· Ridged cutting geometry
· Diamond specifications
· Tungsten carbide substrate specifications
· Surface finishing
· Custom packaging
Customers can provide their cutter drawings, dimensions, or drill bit requirements for customized PDC cutting solutions.
