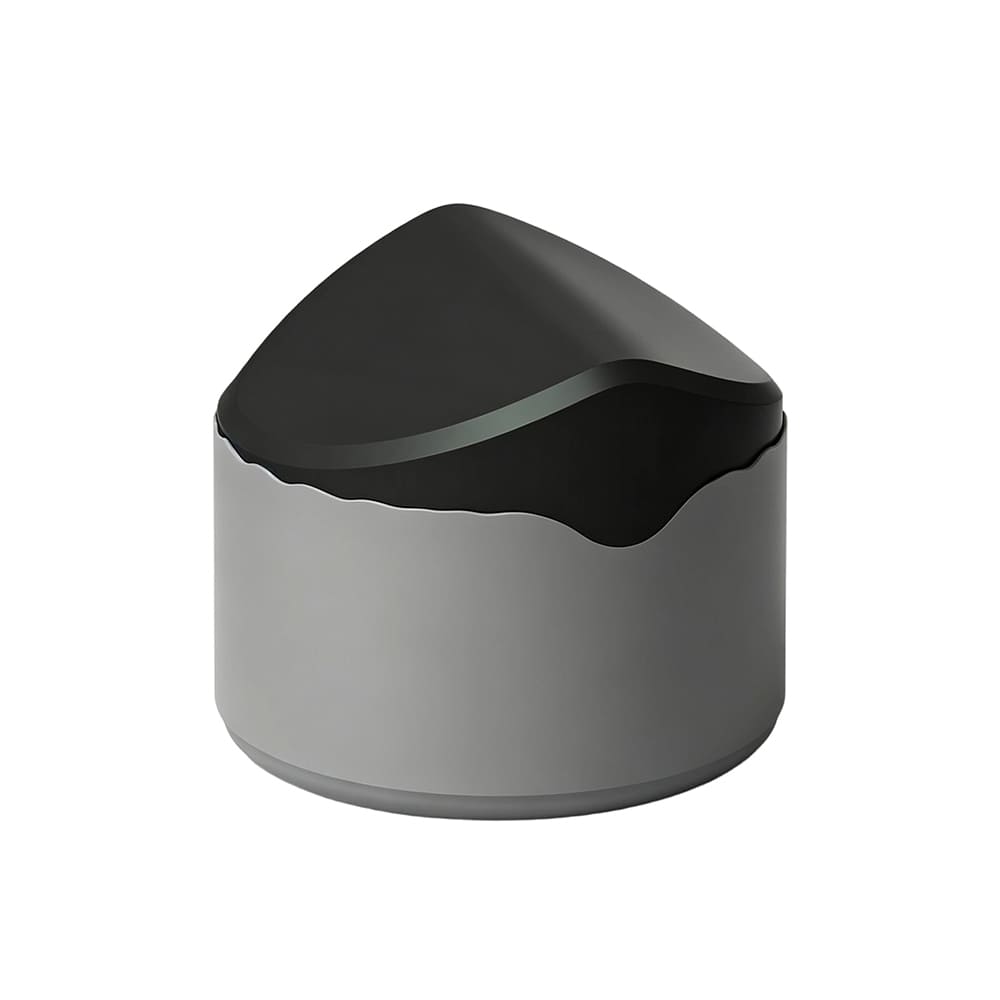

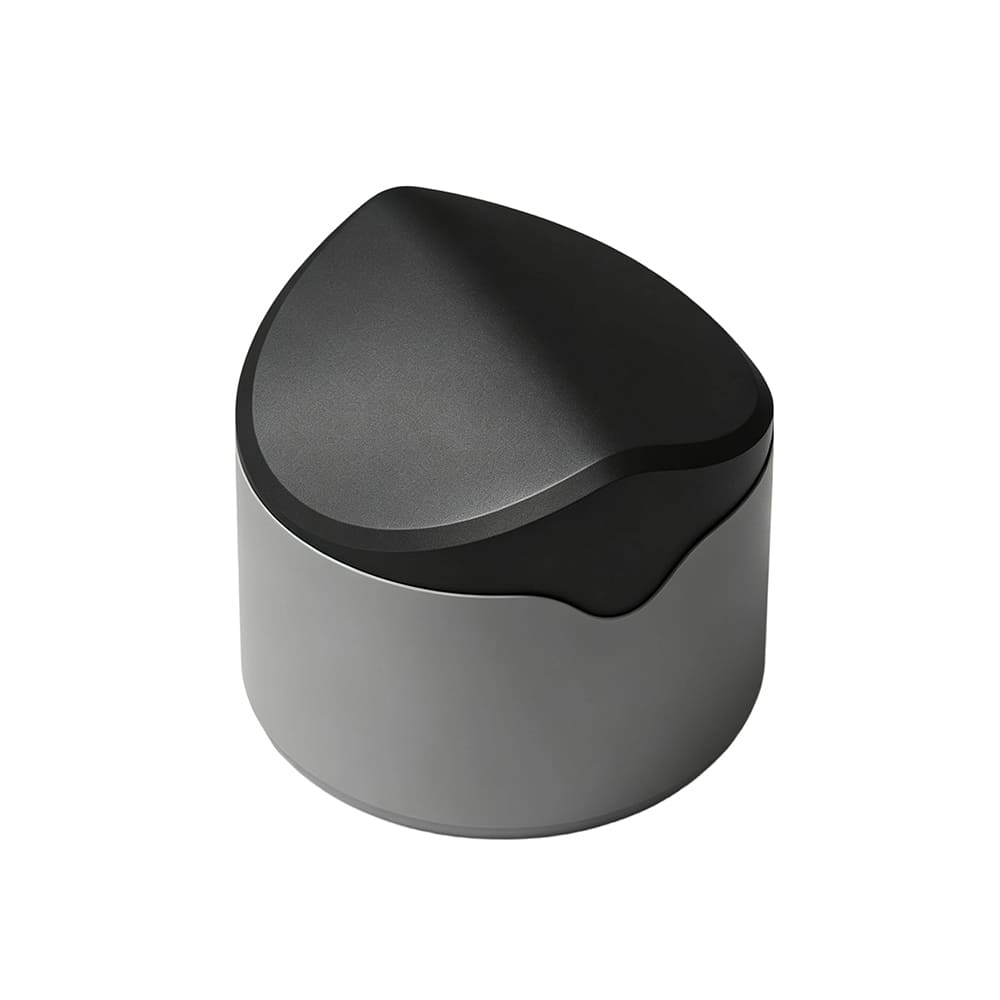

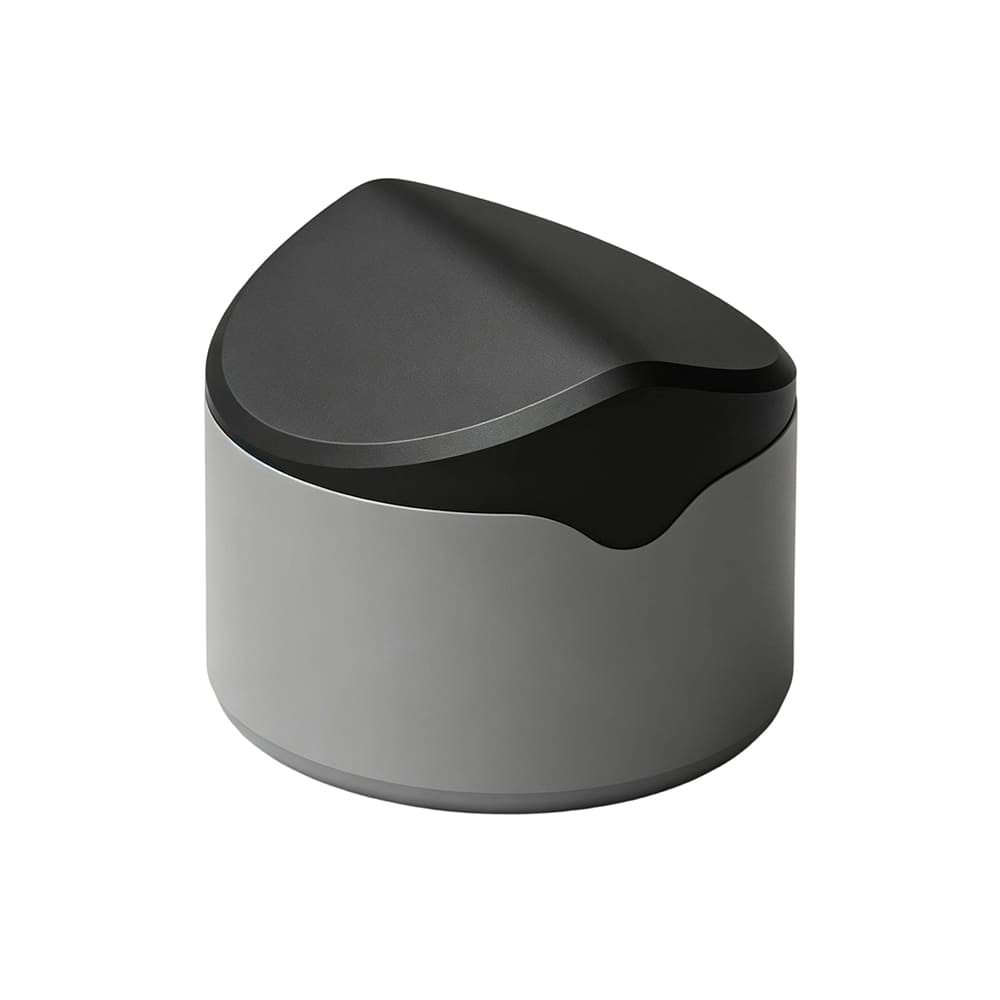

16mm RC1613 PDC Ridged Cutter | Polycrystalline Diamond Compact Cutter for Oil & Gas Drilling
Diameter: 16.00 mm
Height: 13.0 mm
Diamond layer thickness: 2.0~3.0 mm
Quality Certification: ISO 9001
Request a quote for detailed information (MOQ, price, delivery)
Share:
16mm RC1613 PDC Ridged Cutter | Polycrystalline Diamond Compact Cutter for Oil & Gas Drilling :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: RC1613
· Product Type: PDC Ridged Cutter
· Tooth Shape: Ridged
· Diameter (mm): 16.00
· Total Height (mm): 13.0
· Diamond Height (mm): 2.0~3.0
· Manufacturing Process: HPHT Sintering
· Substrate: Tungsten Carbide
· Application: The RC1613 PDC Ridged Cutter is suitable for:
- Oil and gas drilling
- PDC drill bits
- Oil drilling tools
- Directional drilling tools
- Downhole drilling applications
- Formation cutting
- Rock drilling tools
Product Description
The RC1613 PDC Ridged Cutter is a 16 mm PDC cutting element with a 13 mm total height and 2.0–3.0 mm diamond height. Its larger diameter and specialized ridged profile provide a robust cutting configuration for PDC drill bits and oil drilling tools requiring controlled formation engagement.
RC1613 PDC Ridged Cutter for Oil & Gas Drilling
The RC1613 PDC Ridged Cutter is a larger-diameter Polycrystalline Diamond Compact cutting element developed for PDC drilling tools and oil drilling applications.
With a 16 mm diameter and 13 mm total height, RC1613 provides a larger cutting configuration than the 13 mm RC series models. Its dimensions make it suitable for drill bit designs that require a larger ridged cutting element while maintaining a moderate overall cutter height.
The cutter features a 2.0–3.0 mm diamond height, providing the active PDC working section for formation cutting and wear resistance.
The specialized ridged profile creates a non-planar cutting surface that changes the interaction between the cutter and formation. This geometry provides an alternative cutting structure to conventional flat PDC cutters.
RC1613 combines a polycrystalline diamond cutting layer with a tungsten carbide substrate. The diamond layer provides the primary cutting function, while the carbide substrate provides structural support during drilling.
RC series
The RC series PDC Parabolic Cutters are available in various dimensions to meet different bit designs and rock cutting requirements. Standard models are listed below.
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) |
RC1308 | 13.00 | 8.0 | 2.0~3.0 |
RC1313 | 13.00 | 13.0 | 2.0~3.0 |
RC1613 | 16.00 | 13.0 | 2.0~3.0 |
RC1616 | 16.00 | 16.0 | 2.0~3.0 |
RC1913 | 19.00 | 13.0 | 2.0~3.0 |
RC1916 | 19.00 | 16.0 | 2.0~3.0 |
Note: Custom heights and chamfer angles are available for OEM orders. | |||
Key Features
- 16 mm cutter diameter
- 13 mm total height
- 2.0–3.0 mm diamond height
- Larger-diameter ridged PDC configuration
- Specialized non-planar cutting profile
- Polycrystalline diamond cutting layer
- Tungsten carbide substrate
- Stable formation engagement
- High wear resistance
- Good impact resistance
- Suitable for oil drilling applications
Performance Advantages
Larger 16mm Cutting Configuration - The 16 mm diameter gives RC1613 a larger working configuration than the 13 mm RC1308 and RC1313 models. This makes it suitable for PDC bit designs requiring larger ridged cutting elements.
Balanced Diameter and Height - RC1613 combines a 16 mm diameter with a 13 mm total height, providing a balanced configuration between cutter width and overall body height.
Specialized Ridged Profile - The raised cutting structure provides a non-planar formation contact surface. This allows RC1613 to function differently from conventional flat PDC cutters and gives drill bit designers additional flexibility in cutter layout.
Durable Composite Structure - The PDC diamond layer provides the cutting and wear-resistant surface, while the tungsten carbide substrate provides mechanical support for the cutter during drilling.
PDC Diamond Cutting Technology
The RC1613 uses a specialized ridged PDC cutting structure for oil drilling applications.
Unlike a conventional flat PDC cutter, the ridged profile introduces a raised working geometry. This changes the contact relationship between the cutting element and the rock formation and can combine shearing with additional formation interaction.
With its 16 mm diameter, 13 mm total height, and 2.0–3.0 mm diamond height, RC1613 provides a larger-format option for PDC drill bit designs.
The PDC diamond layer is bonded to a tungsten carbide substrate through high-temperature and high-pressure sintering technology to form an integrated composite cutting element.
OEM & Customization
We provide OEM and ODM services for PDC Ridged Cutters according to specific drill bit designs and drilling requirements.
Customization options include:
· Cutter diameter
· Total height
· Diamond height
· Ridged cutting geometry
· Diamond specifications
· Tungsten carbide substrate specifications
· Surface finishing
· Custom packaging
Customers can provide their cutter drawings, dimensions, or drill bit requirements for customized PDC cutting solutions.
