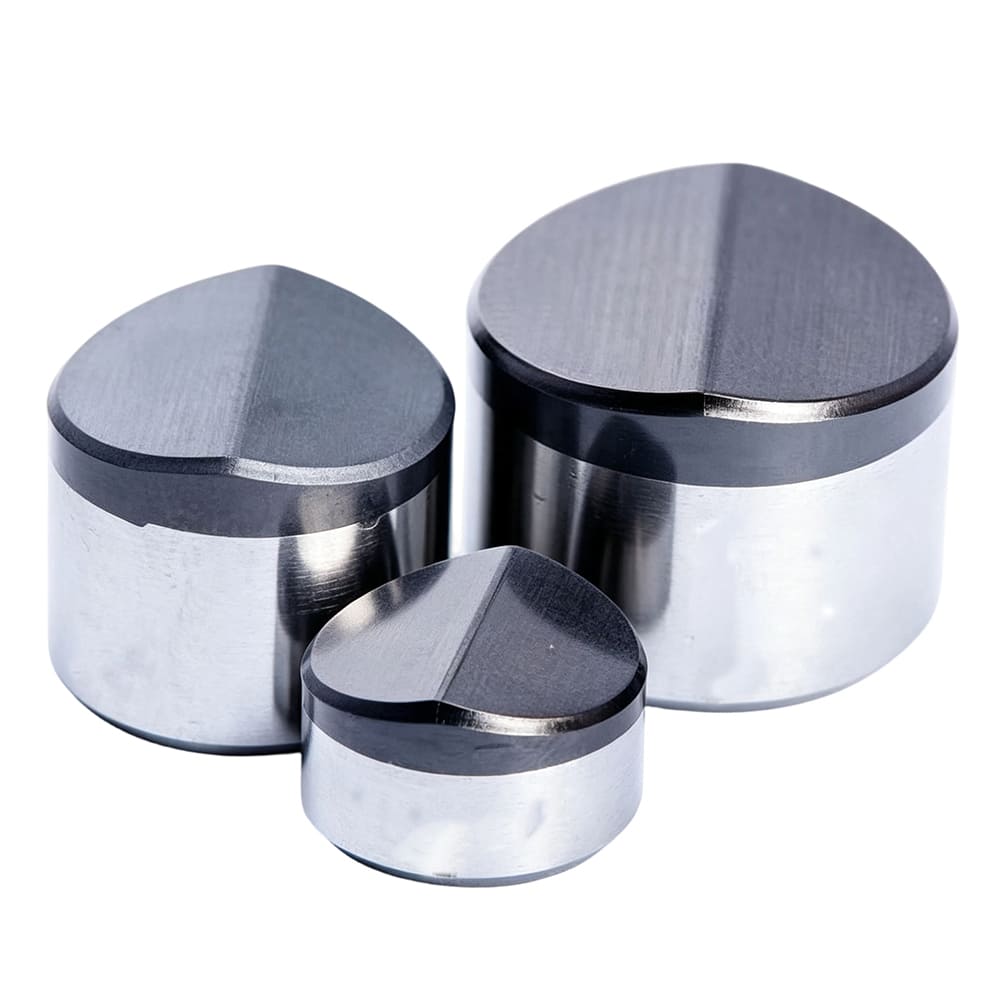

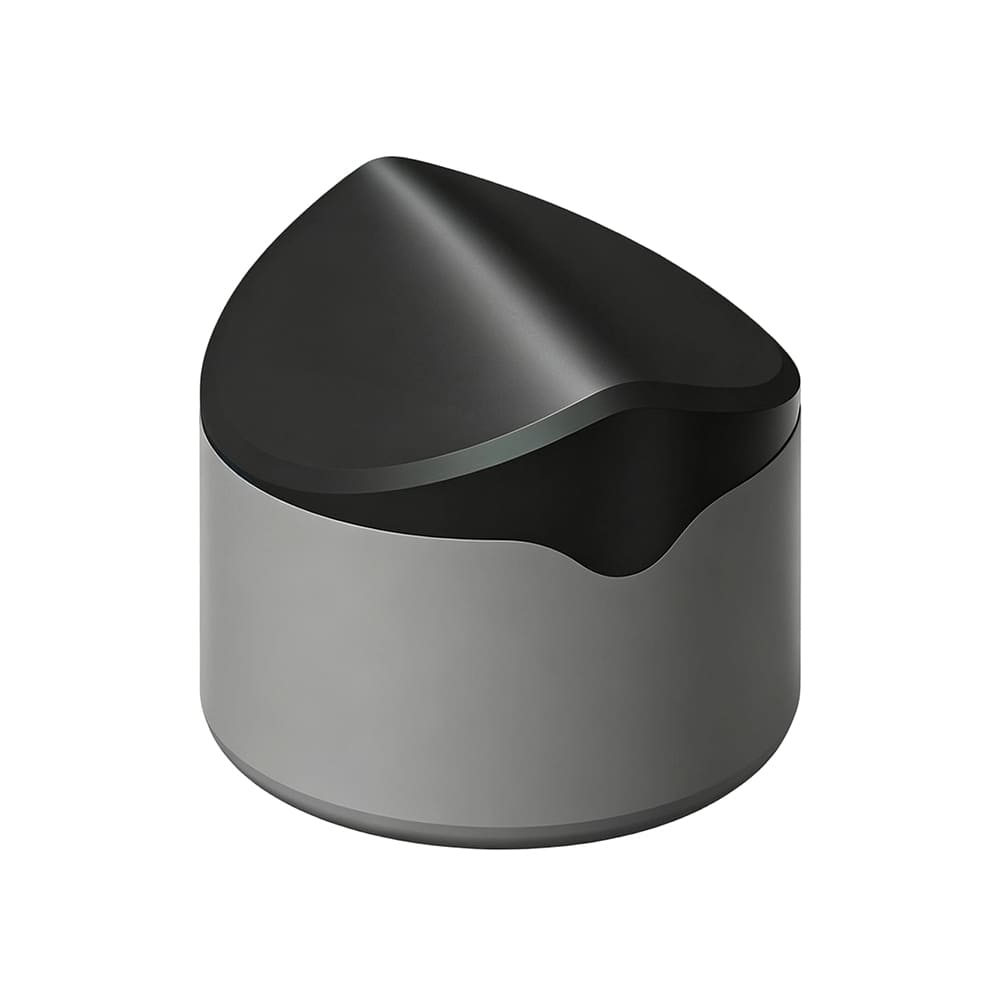

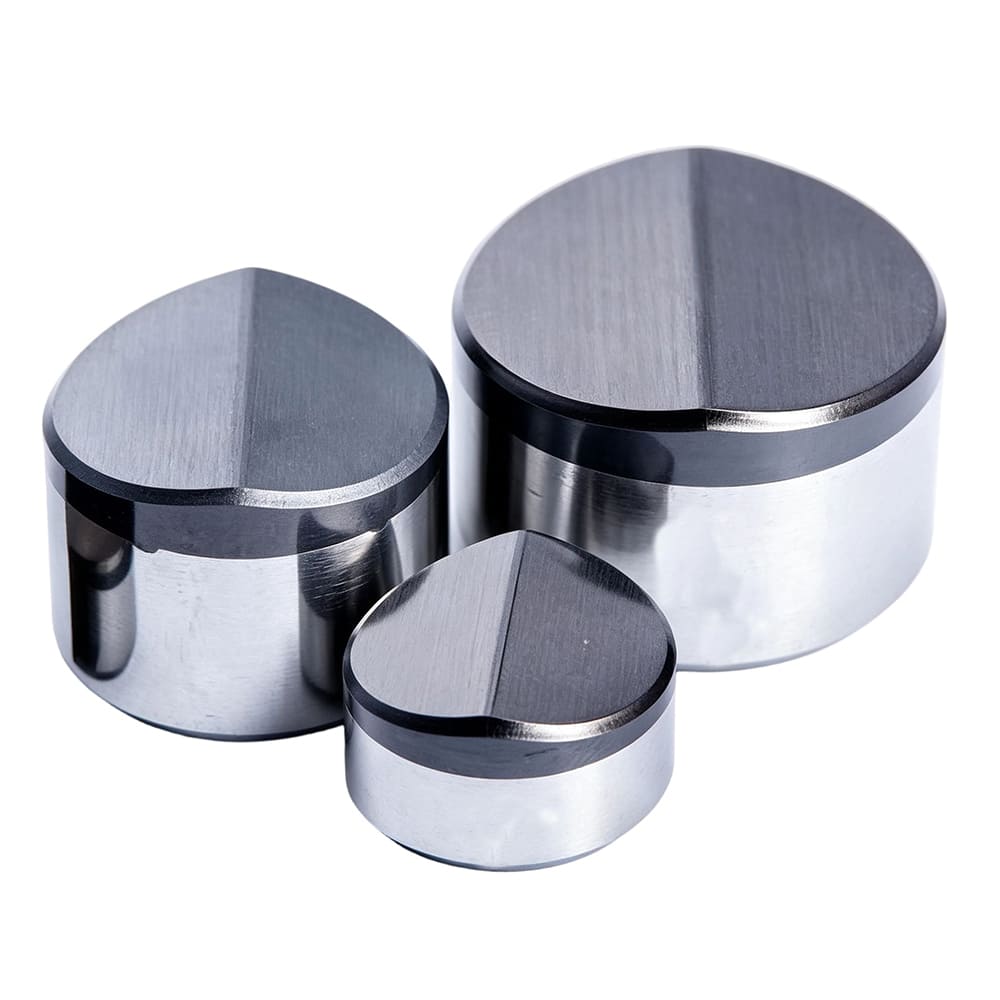

19mm RC1916 PDC Ridged Cutter | Polycrystalline Diamond Compact Cutter for Oil & Gas Drilling
Diameter: 19.00 mm
Height: 16.0 mm
Diamond layer thickness: 2.0~3.0 mm
Quality Certification: ISO 9001
Request a quote for detailed information (MOQ, price, delivery)
Share:
19mm RC1916 PDC Ridged Cutter | Polycrystalline Diamond Compact Cutter for Oil & Gas Drilling :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: RC1916
· Product Type: PDC Ridged Cutter
· Tooth Shape: Ridged
· Diameter (mm): 19.00
· Total Height (mm): 16.0
· Diamond Height (mm): 2.0~3.0
· Manufacturing Process: HPHT Sintering
· Substrate: Tungsten Carbide
· Application: The RC1916 PDC Ridged Cutter is suitable for:
- Oil and gas drilling
- PDC drill bits
- Oil drilling tools
- Directional drilling tools
- Downhole drilling applications
- Formation cutting
- Rock drilling tools
The manufacturer's RC series data specifically lists RC1916 for oil drilling
Product Description
The RC1916 PDC Ridged Cutter is a specialized Polycrystalline Diamond Compact cutting element designed for PDC drilling tools requiring a larger-diameter ridged cutter with an extended overall height.
RC1916 features a 19 mm diameter and 16 mm total height, making it the taller configuration within the 19 mm RC series. Compared with RC1913, which has the same 19 mm diameter and a 13 mm total height, RC1916 provides a different cutter geometry for drill bit designs requiring increased overall cutter height.
The cutter incorporates a 2.0–3.0 mm diamond height and a specialized ridged working profile. Its non-planar structure provides an alternative cutting geometry to conventional flat PDC cutters.
RC1916 combines a polycrystalline diamond cutting layer with a tungsten carbide substrate. The diamond layer forms the active cutting surface, while the carbide substrate provides mechanical support for integration into drilling tools.
The manufacturer's PDC cutter data lists RC1916 for oil drilling applications.
RC series
The RC series PDC Parabolic Cutters are available in various dimensions to meet different bit designs and rock cutting requirements. Standard models are listed below.
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) |
RC1308 | 13.00 | 8.0 | 2.0~3.0 |
RC1313 | 13.00 | 13.0 | 2.0~3.0 |
RC1613 | 16.00 | 13.0 | 2.0~3.0 |
RC1616 | 16.00 | 16.0 | 2.0~3.0 |
RC1913 | 19.00 | 13.0 | 2.0~3.0 |
RC1916 | 19.00 | 16.0 | 2.0~3.0 |
Note: Custom heights and chamfer angles are available for OEM orders. | |||
Key Features
- 19 mm cutter diameter
- 16 mm total height
- 2.0–3.0 mm diamond height
- Extended-height cutter configuration
- Specialized ridged PDC profile
- Non-planar cutting geometry
- Polycrystalline diamond cutting layer
- Tungsten carbide substrate
- Controlled formation interaction
- High wear resistance
- Good impact resistance
- Suitable for oil drilling applications
Performance Advantages
Larger 19mm Diameter - The 19 mm diameter places RC1916 in the larger cutter configuration of the RC series. It is designed for PDC drill bit layouts requiring a larger ridged cutting element.
Extended 16mm Height - RC1916 combines a 19 mm diameter with a 16 mm total height. This provides a taller configuration than RC1913 while maintaining the same 19 mm diameter.
Specialized Ridged Profile - The ridged working structure creates a non-planar cutting surface and provides a specialized cutter-to-formation contact geometry for PDC drilling tools.
Durable Composite Construction - The PDC diamond layer provides the active cutting surface, while the tungsten carbide substrate supports the cutter during mounting and drilling operations.
PDC Diamond Cutting Technology
The RC1916 uses a specialized ridged PDC geometry for oil drilling applications.
Compared with conventional flat PDC cutters, the raised ridged profile creates a different working geometry between the cutting element and the formation. This allows drill bit manufacturers to incorporate a specialized cutting structure into the PDC bit design.
With a 19 mm diameter, 16 mm total height, and 2.0–3.0 mm diamond height, RC1916 provides the taller configuration within the 19 mm RC series.
The PDC diamond layer is integrated with a tungsten carbide substrate through high-temperature and high-pressure manufacturing technology to form a composite cutting element. ZZBETTER describes PDC cutters as composites consisting of a polycrystalline diamond layer and a tungsten carbide substrate.
OEM & Customization
We provide OEM and ODM services for PDC Ridged Cutters according to specific drill bit designs and drilling requirements.
Customization options include:
· Cutter diameter
· Total height
· Diamond height
· Ridged cutting geometry
· Diamond specifications
· Tungsten carbide substrate specifications
· Surface finishing
· Custom packaging
Customers can provide their cutter drawings, dimensions, or drill bit requirements for customized PDC cutting solutions.
