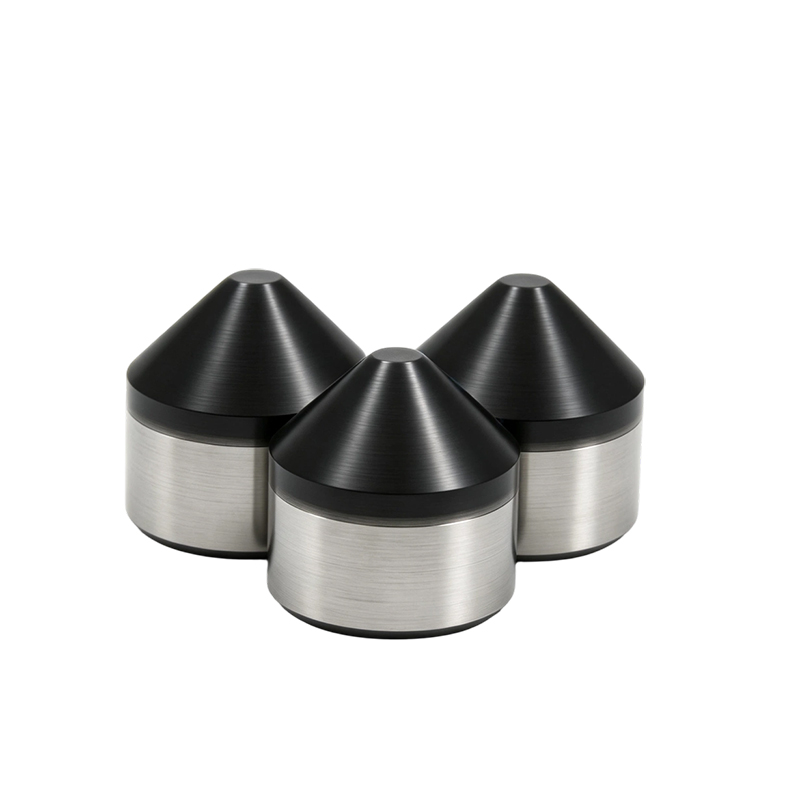

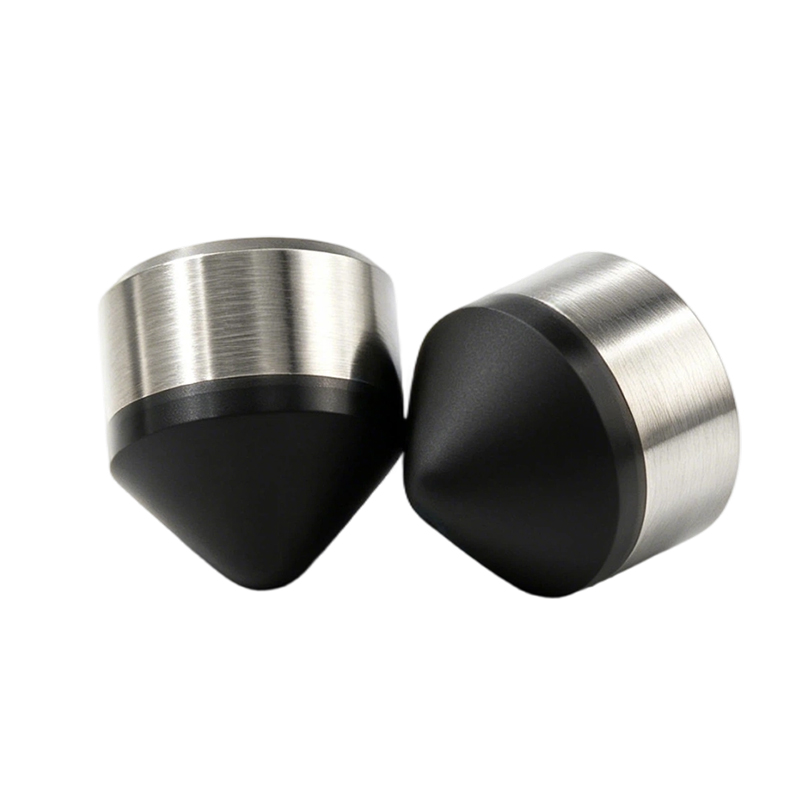

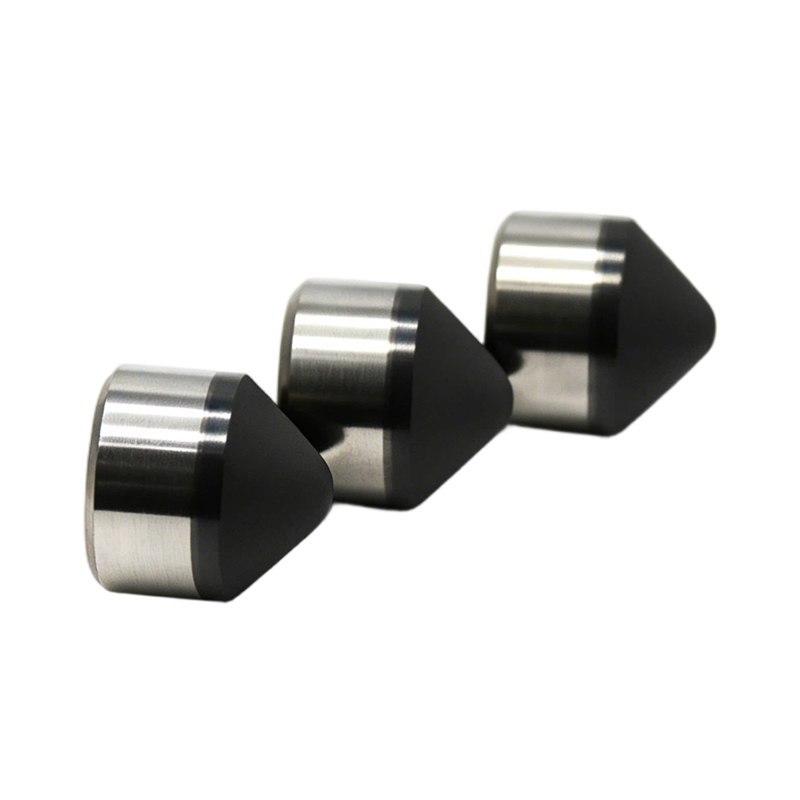

8mm CC080093 PDC Conical Cutter | Polycrystalline Diamond Compact Cutter
Diameter: 8.01 mm
Height: 9.3 mm
Diamond layer thickness: 3.33 mm
Radius: 3.05 mm
Request a quote for detailed information (MOQ, price, delivery)
Share:
8mm CC080093 PDC Conical Cutter | Polycrystalline Diamond Compact Cutter :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: CC080093
· Product Type: Mining PDC Conical Cutter
· Tooth Shape: Conical
· Diameter (mm): 8.01
· Total Height (mm): 9.3
· Diamond Height (mm): 3.33
· Radius: 3.05mm
· Manufacturing Process: HPHT Sintering
· Application: The CC080093 Mining PDC Conical Cutter is widely used in:
- Rock cutting tools
- Mining drilling tools
- PDC drilling tools
- Rock drilling equipment
- Geological drilling tools
- Specialized cutting tools
- Heavy-duty drilling applications
Product Description
The CC080093 PDC Conical Cutter is an 8.01 mm cutting element featuring a 3.33 mm diamond height and 9.3 mm total height. Its conical PDC cutting tip is designed to provide efficient rock penetration, excellent wear resistance, and reliable performance in demanding rock cutting applications.
CC080093 PDC Conical Cutter for Efficient Rock Cutting
The CC080093 PDC Conical Cutter is a precision-engineered polycrystalline diamond compact cutting element designed for demanding rock cutting and drilling applications.
Unlike conventional flat PDC cutters, the conical geometry concentrates the cutting force onto a smaller contact area, helping the cutter penetrate rock efficiently while maintaining a sharp and durable cutting profile.
The CC080093 features an 8.01 mm diameter, 9.3 mm total height, and 3.33 mm diamond height. Its PDC diamond cutting tip is integrated with a high-strength carbide substrate to provide a combination of cutting efficiency, wear resistance, and structural strength.
The conical profile makes this PDC cutting element suitable for drilling and cutting tools where controlled rock penetration and durable cutting performance are required.
CC series
The CC series PDC Conical Cutters are available in various dimensions to meet different bit designs and rock cutting requirements. Standard models are listed below.
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) | Radius |
CC080093 | 8.01 | 9.30 | 3.33 | 3.05 |
CC096111 | 9.60 | 11.1 | 4.20 | 4 |
CC116189 | 11.58 | 18.9 | 3.50 | 8.4 |
CC121170 | 12.07 | 17.0 | 4.75 | 7.5 |
CC128156 | 12.80 | 17.0 | 3.00 | 5.6 |
Note: Custom heights and chamfer angles are available for OEM orders. | ||||
Key Features
- Precision 8.01 mm diameter
- Conical PDC cutting profile
- 3.33 mm diamond height
- 9.3 mm total height
- Premium polycrystalline diamond cutting layer
- High-strength carbide substrate
- Excellent abrasive wear resistance
- Efficient rock penetration
- Stable cutting performance
- Long service life
Performance Advantages
Efficient Rock Penetration -The conical cutting profile concentrates cutting forces at the tip, helping the cutter penetrate rock efficiently and reduce cutting resistance.
Excellent Wear Resistance -The polycrystalline diamond cutting layer provides high resistance to abrasive wear, helping maintain cutting performance during extended operation.
Durable Carbide Substrate -The high-strength tungsten carbide substrate provides mechanical support for the diamond cutting layer and helps the cutter withstand repeated loads during rock cutting.
Stable Cutting Performance - The optimized conical geometry provides controlled contact with the rock formation, supporting consistent cutting performance throughout the service life of the cutter.
PDC Diamond Cutting Technology
The CC080093 is a PDC cutting element, combining a polycrystalline diamond cutting layer with a high-strength tungsten carbide substrate.
The diamond layer provides the primary cutting function, while the carbide substrate provides structural support and toughness. This composite construction combines the hardness and wear resistance of synthetic diamond with the mechanical strength of carbide.
The PDC conical design is particularly suitable for applications where efficient penetration and controlled rock breaking are required.
OEM & Customization
We provide OEM and ODM services for PDC conical cutters according to customer requirements.
Customization options may include:
· Cutter diameter
· Total height
· Diamond height
· Conical geometry
· Radius
· Diamond layer specifications
· Carbide substrate specifications
· Surface finishing
· Custom packaging
Contact us with your required dimensions and application for a customized PDC conical cutter solution.
ZZBetter: Your Leading PDC cutters Manufacturer & Supplier
You get high-quality PDC cutters to meet different applications.
You get to choose from our collection of PDC cutters made from different materials.
You will enjoy the full benefits and advantages of using our primary products.
You will experience the cutting-edge technology that we are using to craft our PDC cutters.
You get a guarantee that your purchase has no defects and flaws.
You are doing business with the leading PDC cutters supplier in China.
ZZ Better can handle maximum orders to help you grow your business.
Send your request or inquiry if you want a customization of PDC cutters.
Using the right PDC cutters can help you do the work more easily!
-----------------------------------------------------------------------------------------------------------------------------
