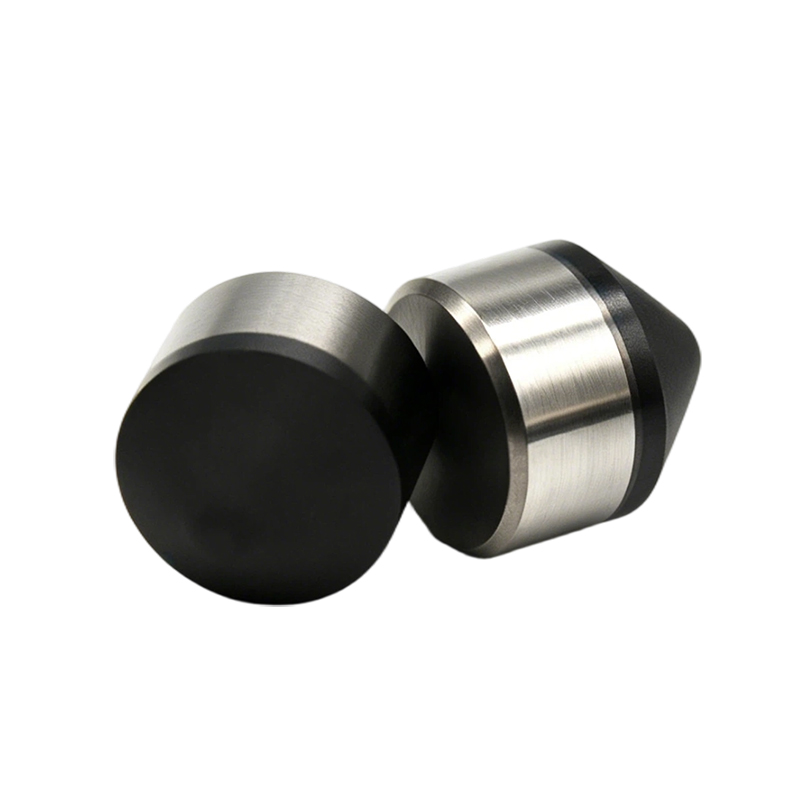

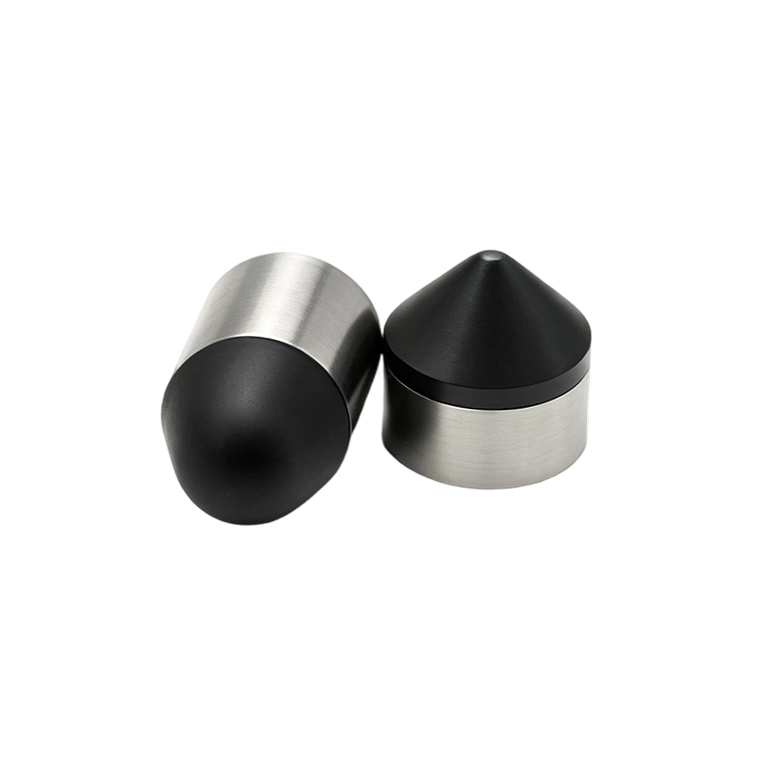

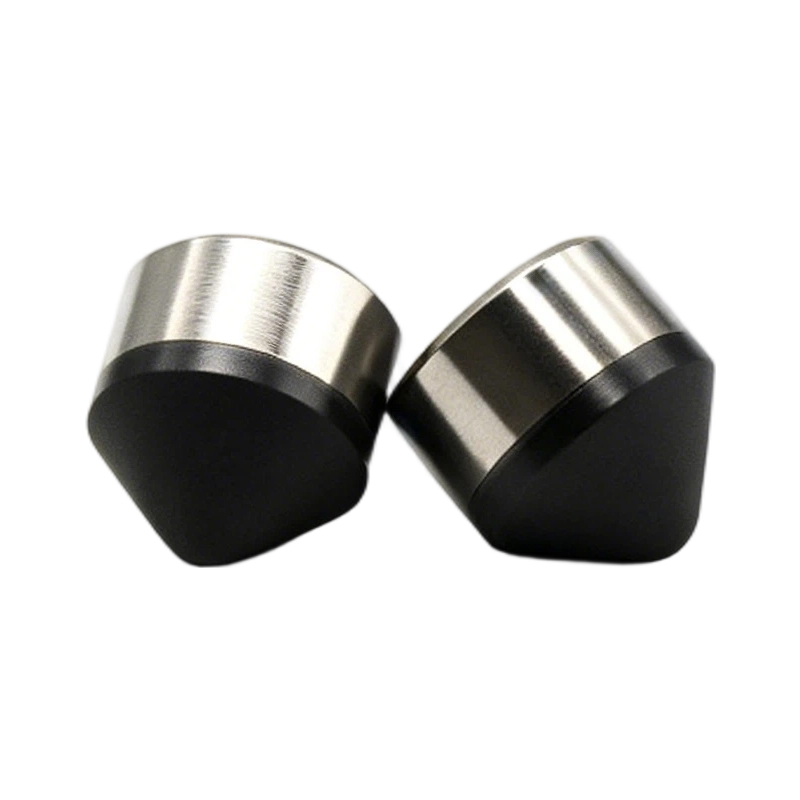

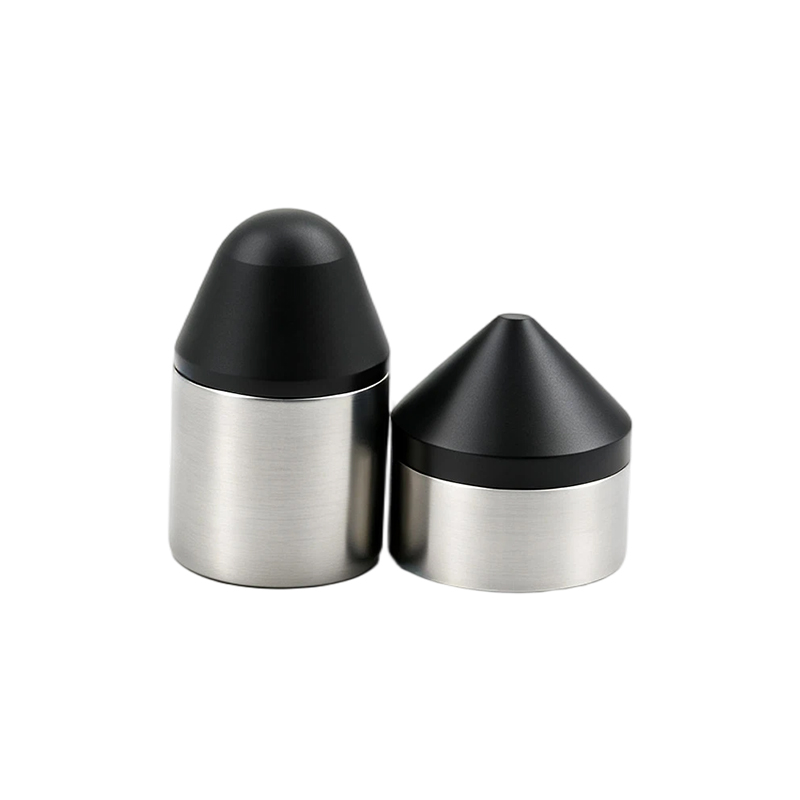

12.07mm CC121170 PDC Conical Cutter | Polycrystalline Diamond Compact Cutter
Diameter: 12.07 mm
Height: 17.0 mm
Diamond layer thickness: 4.75 mm
Radius: 7.5 mm
Request a quote for detailed information (MOQ, price, delivery)
Share:
12.07mm CC121170 PDC Conical Cutter | Polycrystalline Diamond Compact Cutter :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: CC121170
· Product Type: PDC Conical Cutter
· Tooth Shape: Conical
· Diameter (mm): 12.07
· Total Height (mm): 17.0
· Diamond Height (mm): 4.75
· Radius: 7.5 mm
· Manufacturing Process: HPHT Sintering
· Application: The CC121170 PDC Conical Cutter can be used in:
- Rock cutting tools
- Mining drilling tools
- PDC drilling tools
- Geological drilling equipment
- Rock drilling assemblies
- Heavy-duty cutting structures
- Specialized drilling tools
Product Description
The CC121170 PDC Conical Cutter is a 12.07 mm cutting element with a 17.0 mm total height, 4.75 mm diamond height, and 7.5 mm radius. Its larger diameter and substantial diamond section provide a durable working profile for rock cutting and drilling applications requiring consistent cutting performance and resistance to abrasive wear.
CC121170 PDC Conical Cutter for High-Durability Cutting Applications
The CC121170 PDC Conical Cutter is a large-diameter conical cutting element designed for drilling tools that require a substantial working surface and dependable structural support.
With a 12.07 mm diameter and 17.0 mm total height, the CC121170 provides a comparatively broad cutting body while maintaining a defined conical profile. Its 7.5 mm radius forms a controlled curved transition across the working geometry, helping the cutter maintain stable contact as it engages the formation.
A key feature of this model is its 4.75 mm diamond height, providing a substantial PDC working section for applications where resistance to abrasive wear is an important consideration. The diamond component works together with the tungsten carbide substrate to deliver a balance of cutting hardness and mechanical support.
The CC121170 is therefore well suited to drilling and rock cutting structures that require a larger conical cutter with a durable working profile.
CC series
The CC series PDC Conical Cutters are available in various dimensions to meet different bit designs and rock cutting requirements. Standard models are listed below.
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) | Radius |
CC080093 | 8.01 | 9.30 | 3.33 | 3.05 |
CC096111 | 9.60 | 11.1 | 4.20 | 4 |
CC116189 | 11.58 | 18.9 | 3.50 | 8.4 |
CC121170 | 12.07 | 17.0 | 4.75 | 7.5 |
CC128156 | 12.80 | 17.0 | 3.00 | 5.6 |
Note: Custom heights and chamfer angles are available for OEM orders. | ||||
Key Features
- 12.07 mm diameter
- 17.0 mm total height
- 4.75 mm diamond height
- 7.5 mm radius
- Large-diameter conical profile
- Substantial PDC working section
- Polycrystalline diamond cutting material
- Tungsten carbide supporting substrate
- High resistance to abrasive wear
- Stable rock engagement
- Durable structure for demanding drilling conditions
Performance Advantages
Substantial PDC Working Section -The 4.75 mm diamond height provides a substantial working portion for the cutter, supporting continued cutting action in abrasive rock environments.
Large-Diameter Cutting Profile -With a 12.07 mm diameter, CC121170 offers a larger overall cutting geometry suitable for tool designs that require increased cutter size and a well-supported working profile.
Controlled Contact Geometry -The 7.5 mm radius creates a defined curved transition between the cutting section and the body, helping maintain predictable engagement with the formation during operation.
Wear-Resistant Cutting Surface - The polycrystalline diamond component provides high hardness and resistance to abrasive wear, helping preserve the designed cutting geometry during repeated rock contact.
Reliable Structural Support - The tungsten carbide substrate supports the PDC cutting section and provides the mechanical strength required for installation and operation in drilling tools.
PDC Diamond Cutting Technology
The CC121170 uses a composite construction consisting of a polycrystalline diamond cutting section bonded to a tungsten carbide substrate.
The diamond working surface provides the hardness and abrasion resistance required for rock cutting. Behind it, the carbide substrate supplies structural support and mechanical strength.
The combination is designed to provide a durable cutting element capable of maintaining its working profile under repeated contact with rock formations.
OEM & Customization
We provide OEM and ODM manufacturing for PDC conical cutters according to customer drawings, dimensions, and application requirements.
Customization options may include:
· Cutter diameter
· Total height
· Diamond height
· Radius
· Conical geometry
· PDC specifications
· Carbide substrate specifications
· Surface finishing
· Packaging
Custom heights and chamfer angles are available for OEM orders.
