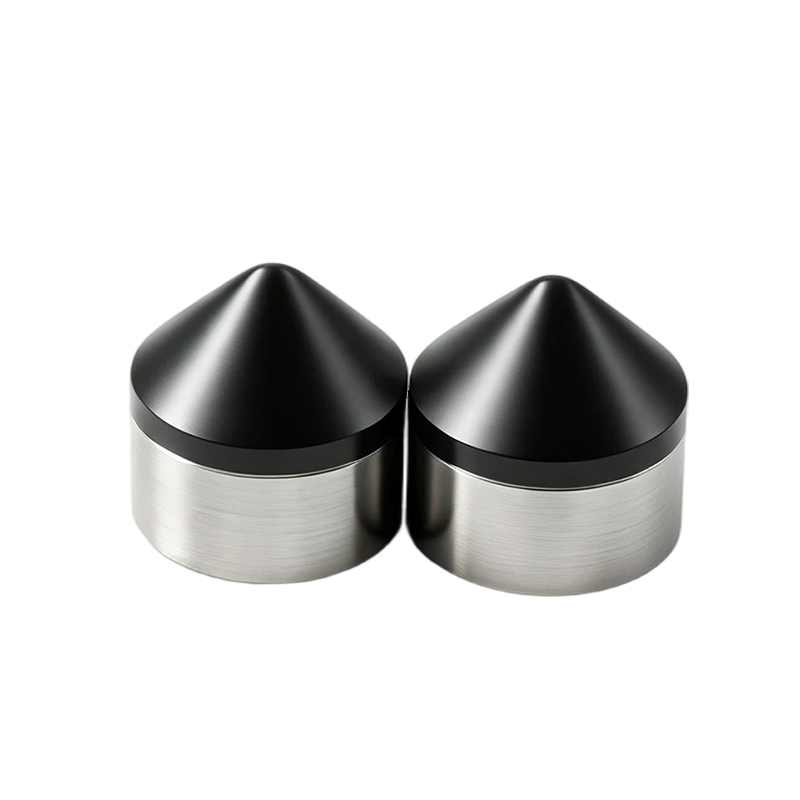

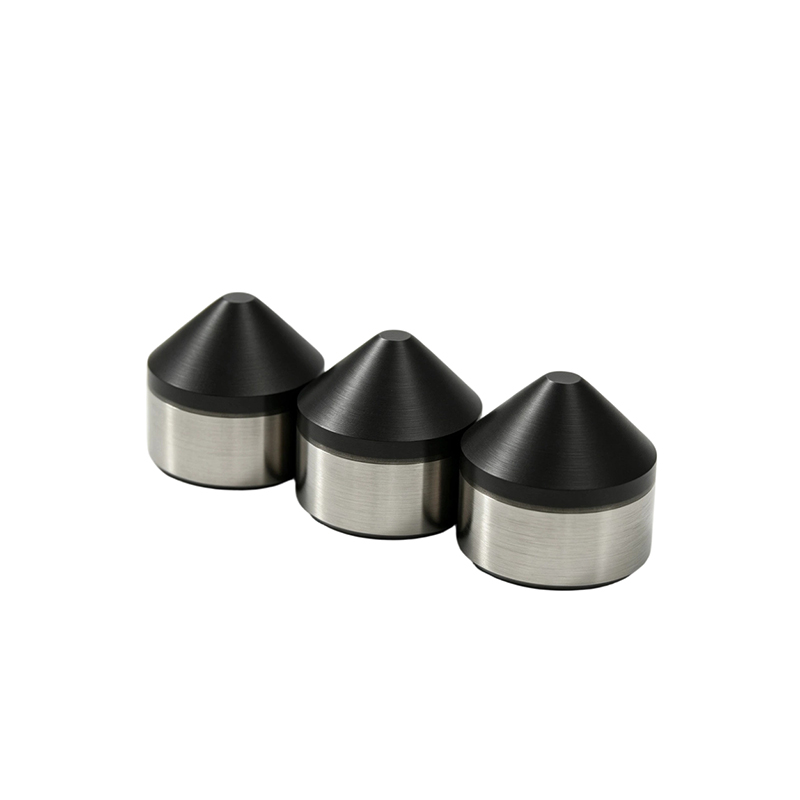

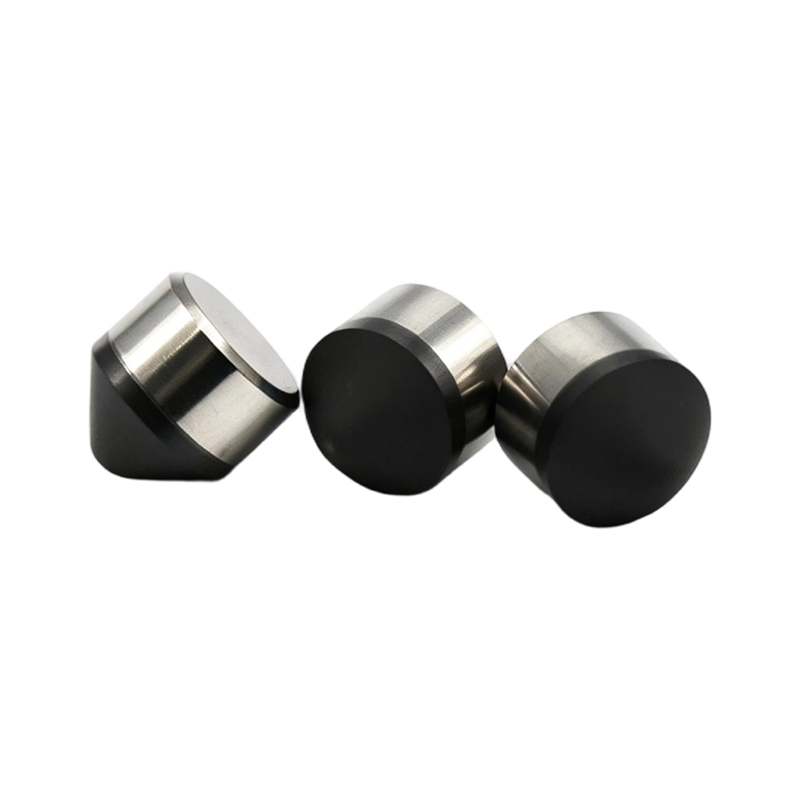

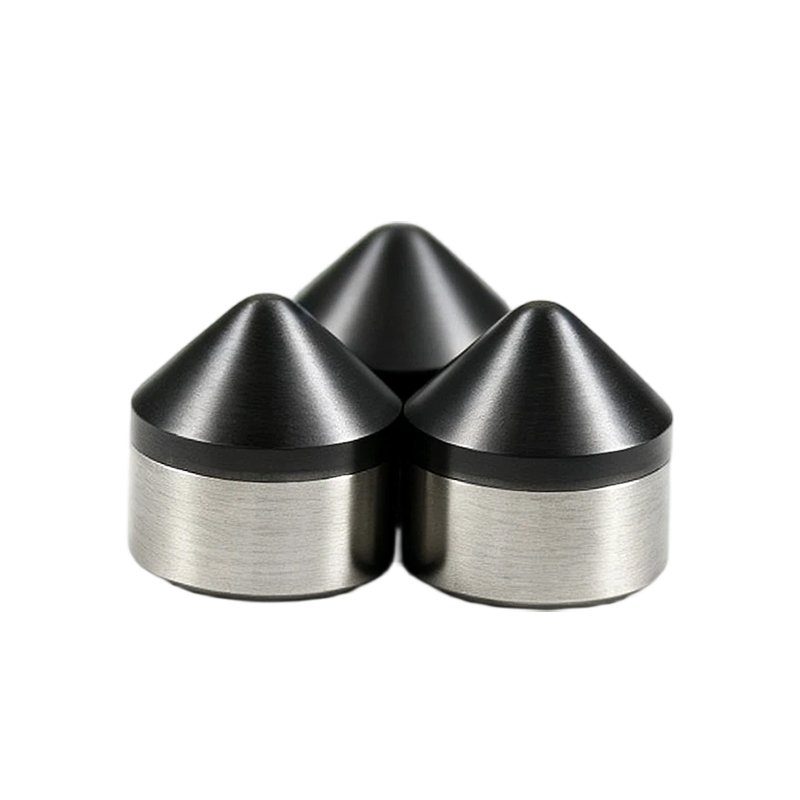

9.6mm CC096111 PDC Conical Cutter | Polycrystalline Diamond Compact Cutter
Diameter: 9.6 mm
Height: 11.1 mm
Diamond layer thickness: 4.2 mm
Radius: 4 mm
Request a quote for detailed information (MOQ, price, delivery)
Share:
9.6mm CC096111 PDC Conical Cutter | Polycrystalline Diamond Compact Cutter :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: CC096111
· Product Type: PDC Conical Cutter
· Tooth Shape: Conical
· Diameter (mm): 9.60
· Total Height (mm): 11.1
· Diamond Height (mm): 4.2
· Radius: 4 mm
· Manufacturing Process: HPHT Sintering
· Application: The CC096111 PDC Conical Cutter can be used in:
- Rock cutting tools
- Mining drilling tools
- PDC drilling tools
- Rock drilling equipment
- Geological drilling tools
- Specialized cutting tools
- Heavy-duty drilling applications
Product Description
The CC096111 PDC Conical Cutter is a 9.60 mm cutting element featuring a 4.2 mm diamond height and 11.1 mm total height. Its conical PDC cutting tip is designed to provide efficient rock penetration, excellent wear resistance, and reliable performance in demanding rock cutting applications.
CC096111 PDC Conical Cutter for Efficient Rock Cutting
The CC096111 PDC Conical Cutter is a precision-engineered polycrystalline diamond compact cutting element designed for demanding rock cutting and drilling applications.
Unlike conventional flat PDC cutters, the conical geometry concentrates the cutting force onto a smaller contact area, helping the cutter penetrate rock efficiently while maintaining a sharp and durable cutting profile.
The CC096111 features a 9.60 mm diameter, 11.1 mm total height, and 4.2 mm diamond height. Its PDC diamond cutting tip is integrated with a high-strength carbide substrate to provide a combination of cutting efficiency, wear resistance, and structural strength.
The conical profile makes this PDC cutting element suitable for drilling and cutting tools where controlled rock penetration and durable cutting performance are required.
CC series
The CC series PDC Conical Cutters are available in various dimensions to meet different bit designs and rock cutting requirements. Standard models are listed below.
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) | Radius |
CC080093 | 8.01 | 9.30 | 3.33 | 3.05 |
CC096111 | 9.60 | 11.1 | 4.20 | 4 |
CC116189 | 11.58 | 18.9 | 3.50 | 8.4 |
CC121170 | 12.07 | 17.0 | 4.75 | 7.5 |
CC128156 | 12.80 | 17.0 | 3.00 | 5.6 |
Note: Custom heights and chamfer angles are available for OEM orders. | ||||
Key Features
- Precision 9.60 mm diameter
- Conical PDC cutting profile
- 4.2 mm diamond height
- 11.1 mm total height
- 4 mm radius
- Premium polycrystalline diamond cutting layer
- High-strength carbide substrate
- Excellent abrasive wear resistance
- Efficient rock penetration
- Stable cutting performance
- Long service life
Performance Advantages
Controlled Cutting Action -The conical profile gives the cutting element a defined contact geometry. Instead of presenting a broad flat surface to the formation, the shaped profile allows the cutter to engage the rock in a more controlled manner.
Balanced Cutting Profile -The combination of the 9.60 mm diameter, 11.1 mm height, and 4 mm radius creates a substantial cutting profile for applications requiring both penetration and structural support.
Resistance to Abrasive Wear -The PDC working surface is engineered for continuous contact with abrasive rock formations. Its diamond-rich cutting layer helps retain the designed cutting profile during extended operation.
Reinforced Substrate Structure - The tungsten carbide substrate supports the PDC cutting section and contributes to the overall mechanical strength of the cutter, helping it withstand the loads generated during drilling and rock cutting.
PDC Diamond Cutting Technology
The CC096111 uses a composite PDC construction consisting of a polycrystalline diamond cutting section and a tungsten carbide substrate.
The PDC portion provides the primary working surface and contributes high hardness and abrasion resistance. The carbide substrate acts as the supporting body, providing the strength and toughness required behind the cutting layer.
This combination allows the CC096111 to maintain a durable cutting interface while providing the structural support needed for demanding drilling environments.
OEM & Customization
We provide OEM and ODM services for PDC conical cutters according to customer requirements.
Customization options may include:
· Cutter diameter
· Total height
· Diamond Height
· Radius
· Conical profile
· PDC specifications
· Carbide substrate specifications
· Surface finish
· Packaging
Contact us with your required dimensions and application for a customized PDC conical cutter solution.
