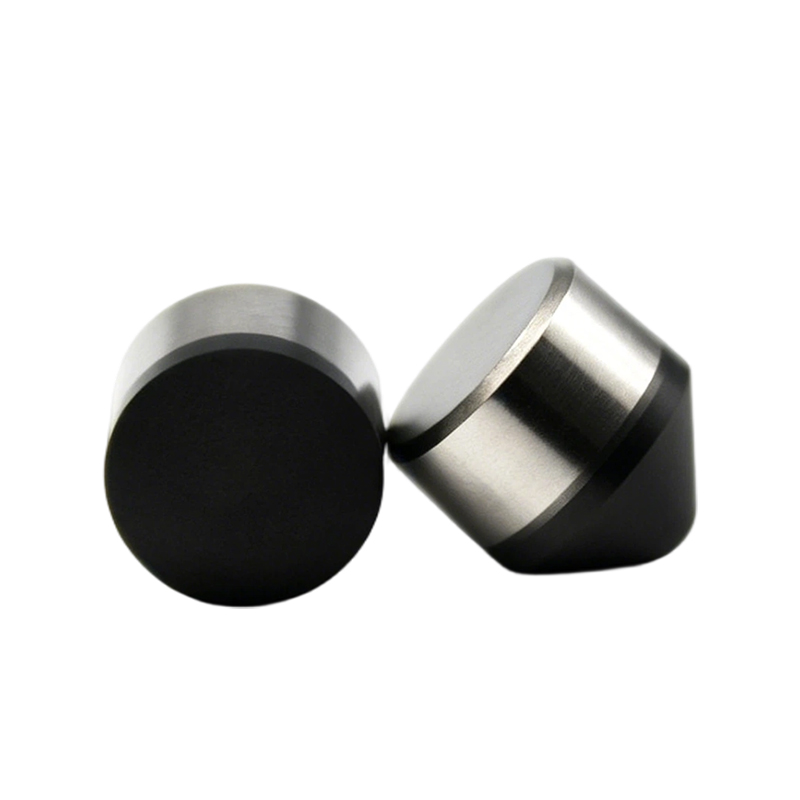

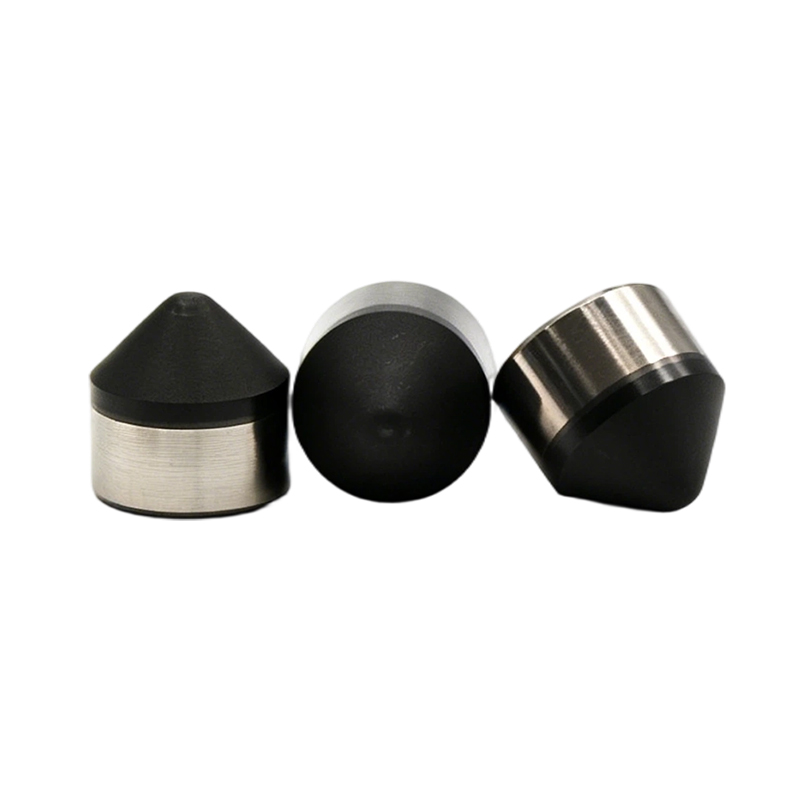

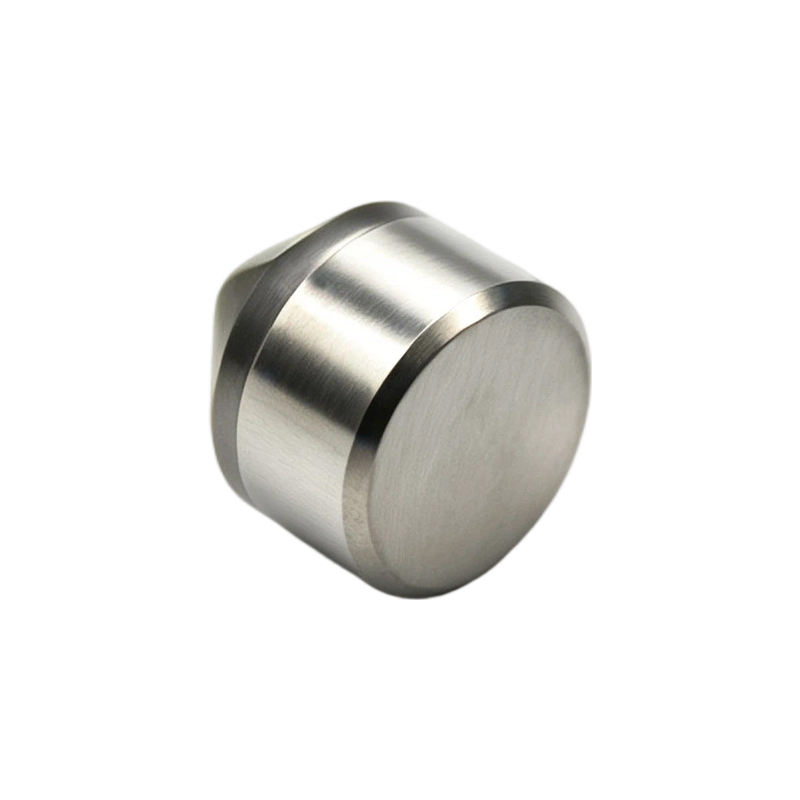

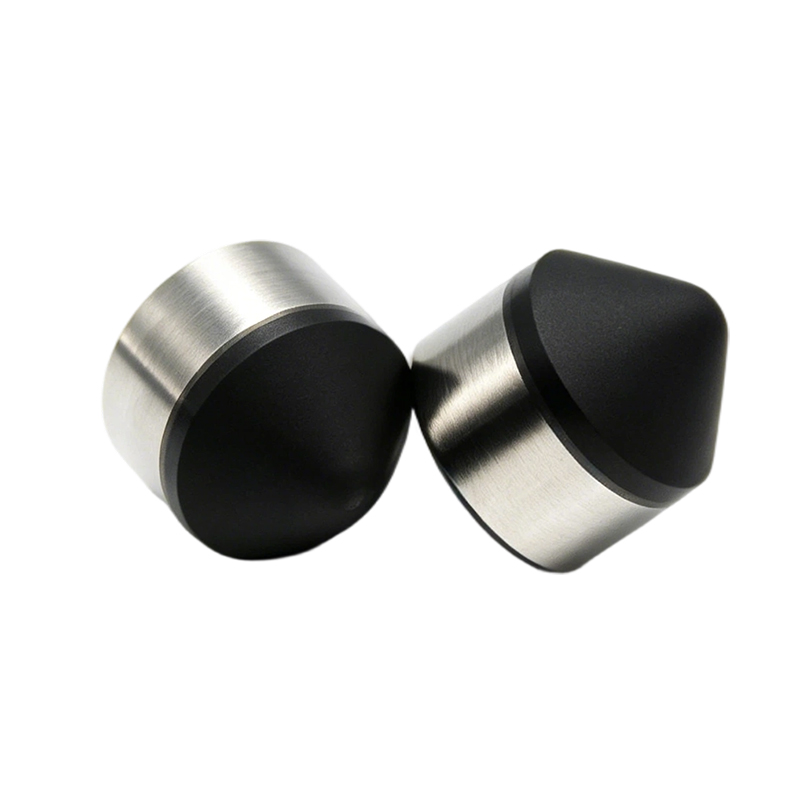

12.8mm CC128156 PDC Conical Cutter | Polycrystalline Diamond Compact Cutter
Diameter: 12.8 mm
Height: 17.0 mm
Diamond layer thickness: 3 mm
Radius: 5.6 mm
Request a quote for detailed information (MOQ, price, delivery)
Share:
12.8mm CC128156 PDC Conical Cutter | Polycrystalline Diamond Compact Cutter :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: CC128156
· Product Type: PDC Conical Cutter
· Tooth Shape: Conical
· Diameter (mm): 12.8
· Total Height (mm): 17.0
· Diamond Height (mm): 3
· Radius: 5.6 mm
· Manufacturing Process: HPHT Sintering
· Application: The CC128156 PDC Conical Cutter can be incorporated into:
- Rock cutting tools
- Mining drilling tools
- PDC drilling tools
- Geological drilling equipment
- Specialized rock drilling assemblies
- Custom cutting structures
- Heavy-duty drilling tools
Product Description
The CC128156 PDC Conical Cutter is a 12.80 mm cutting element with a 17.0 mm total height, 3.00 mm diamond height, and 5.6 mm radius. Its compact conical geometry is designed for controlled formation contact and reliable cutting performance, while the PDC working layer provides high hardness and resistance to abrasive wear.
CC128156 PDC Conical Cutter for Compact Cutting Geometry
The CC128156 PDC Conical Cutter is a large-diameter conical cutting element developed for drilling and specialized rock cutting tools where a more compact working profile is preferred.
The cutter measures 12.80 mm in diameter with a 17.0 mm total height. Compared with other cutters in the same series, its 5.6 mm radius gives the conical profile a more defined transition, while the 3.00 mm diamond height provides a focused PDC working section.
The combination of a relatively large diameter and controlled profile makes CC128156 suitable for cutting structures that require a stable contact geometry without relying on an excessively deep cutting element.
Its PDC cutting section is supported by a tungsten carbide substrate, providing the material combination needed for hardness at the cutting interface and mechanical support throughout operation.
CC series
The CC series PDC Conical Cutters are available in various dimensions to meet different bit designs and rock cutting requirements. Standard models are listed below.
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) | Radius |
CC080093 | 8.01 | 9.30 | 3.33 | 3.05 |
CC096111 | 9.60 | 11.1 | 4.20 | 4 |
CC116189 | 11.58 | 18.9 | 3.50 | 8.4 |
CC121170 | 12.07 | 17.0 | 4.75 | 7.5 |
CC128156 | 12.80 | 17.0 | 3.00 | 5.6 |
Note: Custom heights and chamfer angles are available for OEM orders. | ||||
Key Features
- 12.80 mm diameter
- 17.0 mm total height
- 3.00 mm diamond height
- 5.6 mm radius
- Compact conical working profile
- Defined profile transition
- Polycrystalline diamond cutting layer
- Tungsten carbide substrate
- Good abrasive wear resistance
- Controlled formation engagement
- Suitable for specialized drilling tools
Performance Advantages
Defined Conical Profile - The 5.6 mm radius creates a distinct transition within the conical geometry, allowing the cutter to maintain a controlled working profile as it enters the formation.
Large Cutter Diameter - With a 12.80 mm diameter, CC128156 provides a substantial overall cutter body for drilling tool designs that require a larger conical cutting element.
Focused Diamond Working Section -The 3.00 mm diamond height provides the designated PDC working portion while maintaining the overall geometry of the cutter. This configuration can be integrated into cutting structures designed around a controlled PDC contact area.
Reliable Wear Resistance - The PDC working layer offers high hardness and resistance to abrasive wear, helping the cutter maintain its functional geometry during repeated contact with rock.
Strong Carbide Support - The tungsten carbide substrate forms the supporting body behind the PDC section, contributing to mechanical stability and helping the cutter withstand operational loading.
PDC Diamond Cutting Technology
The CC128156 combines a polycrystalline diamond working layer with a tungsten carbide substrate to form a composite cutting element.
The PDC layer serves as the primary rock-contact surface, providing the hardness and abrasion resistance needed for cutting. The carbide substrate supports the diamond section and provides the mechanical strength necessary for mounting and operation.
The combination of these materials allows CC128156 to deliver a durable cutting interface within appropriately designed drilling and rock cutting tools.
OEM & Customization
We provide OEM and ODM manufacturing for PDC conical cutters based on customer drawings, dimensions, and application requirements.
Customization options may include:
· Cutter diameter
· Total height
· Diamond height
· Radius
· Conical profile
· PDC specifications
· Carbide substrate dimensions
· Surface finishing
· Packaging
Custom heights and chamfer angles are available for OEM orders.
ZZBetter: Your Leading PDC cutters Manufacturer & Supplier
You get high-quality PDC cutters to meet different applications.
You get to choose from our collection of PDC cutters made from different materials.
You will enjoy the full benefits and advantages of using our primary products.
You will experience the cutting-edge technology that we are using to craft our PDC cutters.
You get a guarantee that your purchase has no defects and flaws.
You are doing business with the leading PDC cutters supplier in China.
ZZ Better can handle maximum orders to help you grow your business.
Send your request or inquiry if you want a customization of PDC cutters.
Using the right PDC cutters can help you do the work more easily!
-----------------------------------------------------------------------------------------------------------------------------
