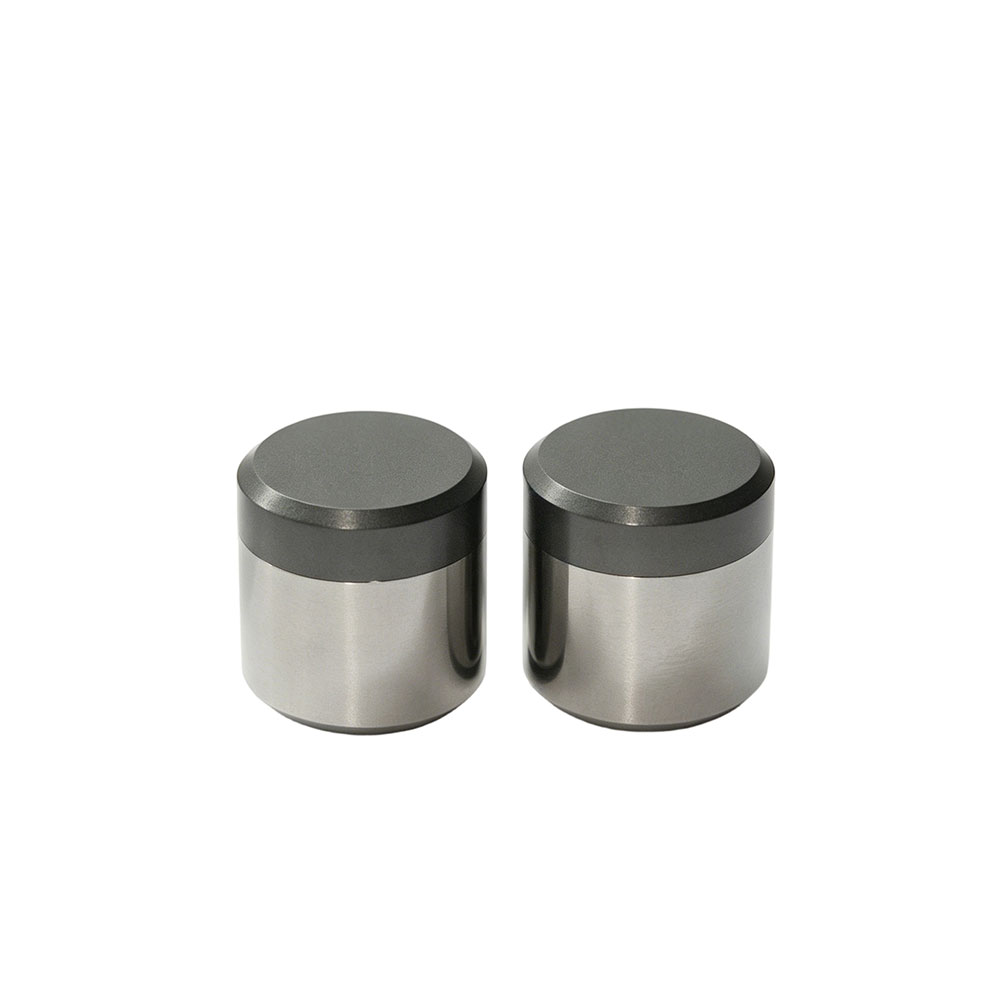

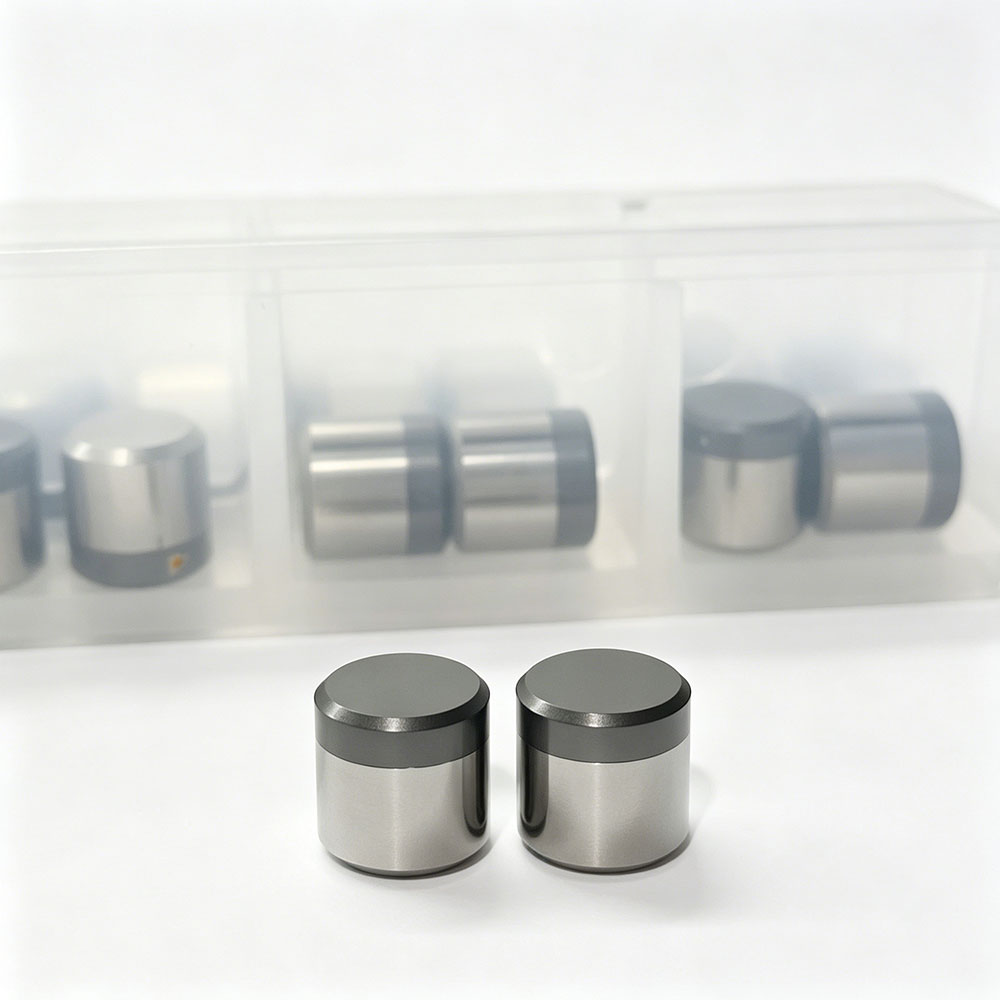

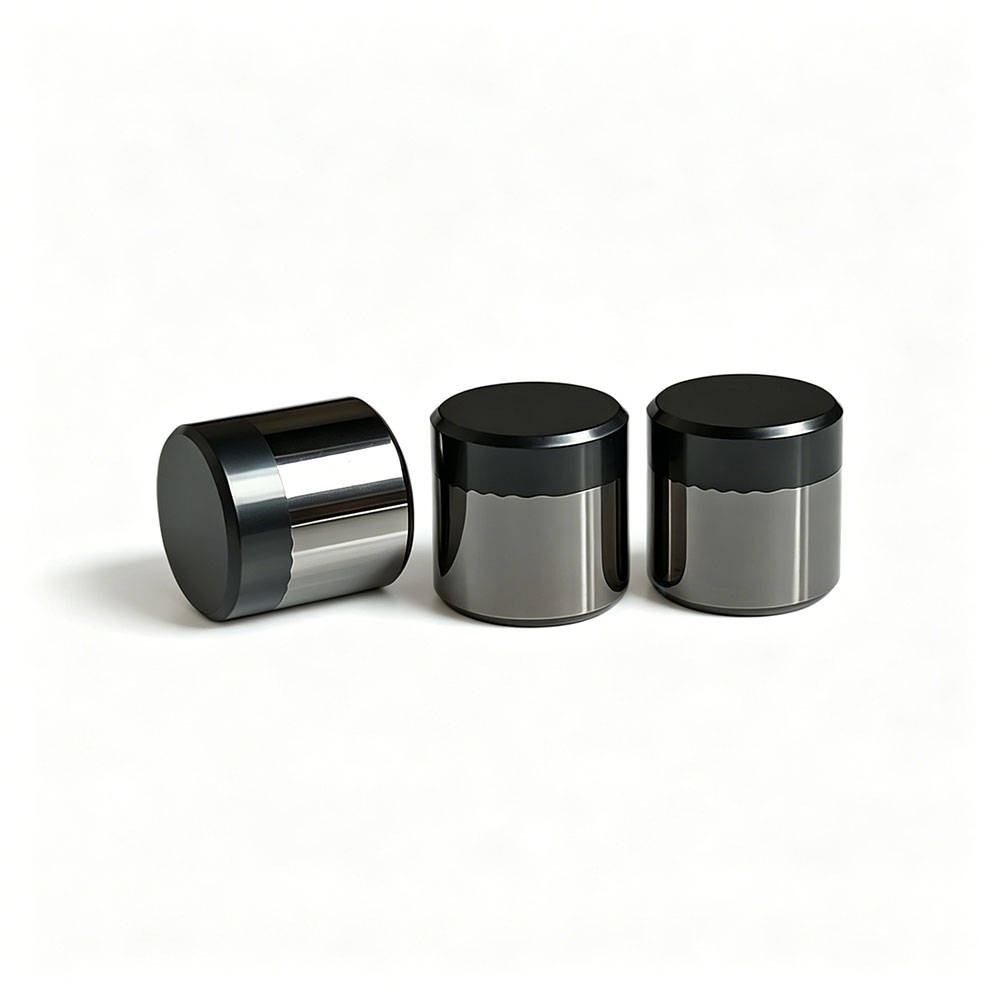

8mm FC0808 PDC Flat Cutter | Polycrystalline Diamond Compact Cutter for Mining & Geological Drilling
Diameter: 8mm
Height: 8mm
Diamond layer thickness: 1.5mm-1.8mm
Chamfer: 0.3mm x 45°
Request a quote for detailed information (MOQ, price, delivery)
Share:
8mm FC0808 PDC Flat Cutter | Polycrystalline Diamond Compact Cutter for Mining & Geological Drilling :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: FC0808
· Product Type: Mining PDC Flat Cutter
· Tooth Shape: Flat
· Diameter (mm): 8.00
· Total Height (mm): 8.00
· Diamond Height (mm): 1.5-1.8
· Chamfer: 0.3mm x 45°
· Manufacturing Process: HPHT Sintering
· Application: The FC0808 PDC Flat Cutter is widely used in:
- Mining drilling tools
- Geological exploration drilling
- Anchor drilling bits
- PDC drag bits
- PDC core bits
- Water well drilling tools
- Coal mining drilling tools
- Rock cutting tools
Product Description

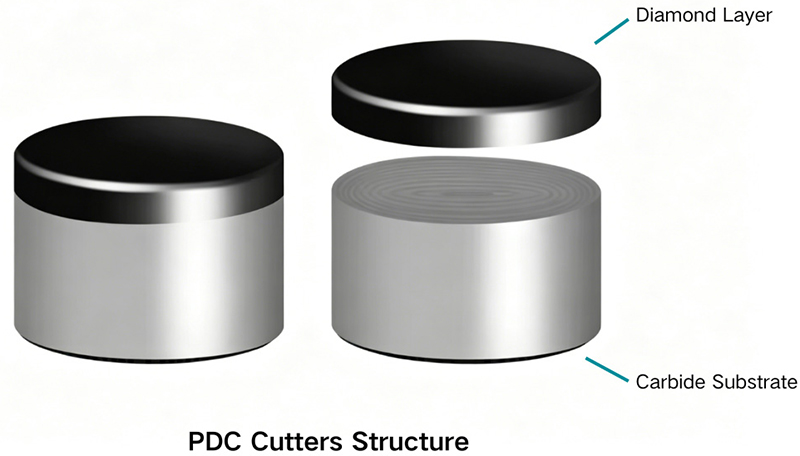

The FC0808 PDC Flat Cutter is manufactured with a premium polycrystalline diamond table bonded to a high-strength tungsten carbide substrate through advanced HPHT sintering technology. Designed for mining and geological drilling, it offers outstanding wear resistance, impact strength, and extended service life in demanding drilling environments.
High-Performance FC0808 PDC Flat Cutter for Efficient Rock Cutting
The FC0808 PDC Flat Cutter is engineered for high-performance drilling applications where durability and cutting efficiency are essential. Manufactured using advanced High Pressure High Temperature (HPHT) sintering technology, it combines a premium polycrystalline diamond layer with a high-quality tungsten carbide substrate to deliver exceptional wear resistance and impact toughness.
Its compact 8 mm design makes it suitable for precision drilling tools while maintaining excellent thermal stability and cutting performance. The FC0808 is widely used in mining, geological exploration, anchor drilling, drag bits, and other rock drilling tools that require reliable performance and long operational life.
FC series
The Flat Cutter (FC) series for mining applications is available in multiple dimensions to suit various bit designs and formation hardness levels. Below are the standard mining-grade options:
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) | Chamfer |
FC0810 | 8.00 | 10.00 | 1.5-1.8 | 0.3mm x 45° |
FC1008 | 10.00 | 8.00 | 1.5-1.8 | 0.3mm x 45° |
FC1010 | 10.00 | 10.00 | 1.5-1.8 | 0.3mm x 45° |
FC1308 | 13.40 | 8.00 | 1.5-1.8 | 0.3mm x 45° |
FC1313 | 13.40 | 13.00 | 1.5-1.8 | 0.3mm x 45° |
FC1608 | 16.00 | 8.00 | 1.5-1.8 | 0.3mm x 45° |
FC1610 | 16.00 | 10.00 | 1.5-1.8 | 0.3mm x 45° |
FC1613 | 16.00 | 13.00 | 1.5-1.8 | 0.3mm x 45° |
Note: Custom heights and chamfer angles are available for OEM orders. | ||||
Key Features
- Premium polycrystalline diamond compact (PDC) layer
- High-strength tungsten carbide substrate
- Manufactured using advanced HPHT sintering technology
- Excellent wear resistance in abrasive formations
- Superior impact toughness for demanding drilling conditions
- High thermal stability during continuous drilling
- Consistent cutting performance and long service life
- Suitable for OEM and customized drilling tools
Performance Advantages
Exceptional Wear Resistance and Reliable Cutting Performance -The premium diamond table provides outstanding resistance to abrasive wear, allowing the cutter to maintain sharp cutting edges during extended drilling operations.
Excellent Impact Toughness -The strong metallurgical bond between the diamond layer and carbide substrate improves resistance to impact loads, reducing the risk of premature failure under harsh drilling conditions.
Long Service Life -Optimized material selection and precision manufacturing help extend cutter life, reducing replacement frequency and lowering overall drilling costs.
Stable Thermal Performance - The advanced HPHT manufacturing process ensures excellent thermal stability, enabling reliable performance in high-temperature drilling environments.
Advanced HPHT Manufacturing Technology
Each FC0808 PDC Flat Cutter is produced using advanced High Pressure High Temperature (HPHT) sintering technology. During the manufacturing process, carefully selected synthetic diamond particles are permanently bonded to a premium tungsten carbide substrate under extreme pressure and temperature. This creates a strong metallurgical bond that enhances wear resistance, impact strength, and thermal stability.
Strict quality inspection is performed throughout production to ensure consistent dimensions, reliable bonding quality, and stable cutting performance for every cutter delivered.
OEM & Customization
Better Drilling provides complete OEM and ODM manufacturing services for PDC cutters.
Customization options include:
· Customized dimensions
· Diamond layer thickness
· Chamfer design
· Laser logo marking
· Surface finishing
· Packaging solutions
· Bulk production for distributors and drilling tool manufacturers
ZZBetter: Your Leading PDC cutters Manufacturer & Supplier
You get high-quality PDC cutters to meet different applications.
You get to choose from our collection of PDC cutters made from different materials.
You will enjoy the full benefits and advantages of using our primary products.
You will experience the cutting-edge technology that we are using to craft our PDC cutters.
You get a guarantee that your purchase has no defects and flaws.
You are doing business with the leading PDC cutters supplier in China.
ZZ Better can handle maximum orders to help you grow your business.
Send your request or inquiry if you want a customization of PDC cutters.
Using the right PDC cutters can help you do the work more easily!
-----------------------------------------------------------------------------------------------------------------------------
