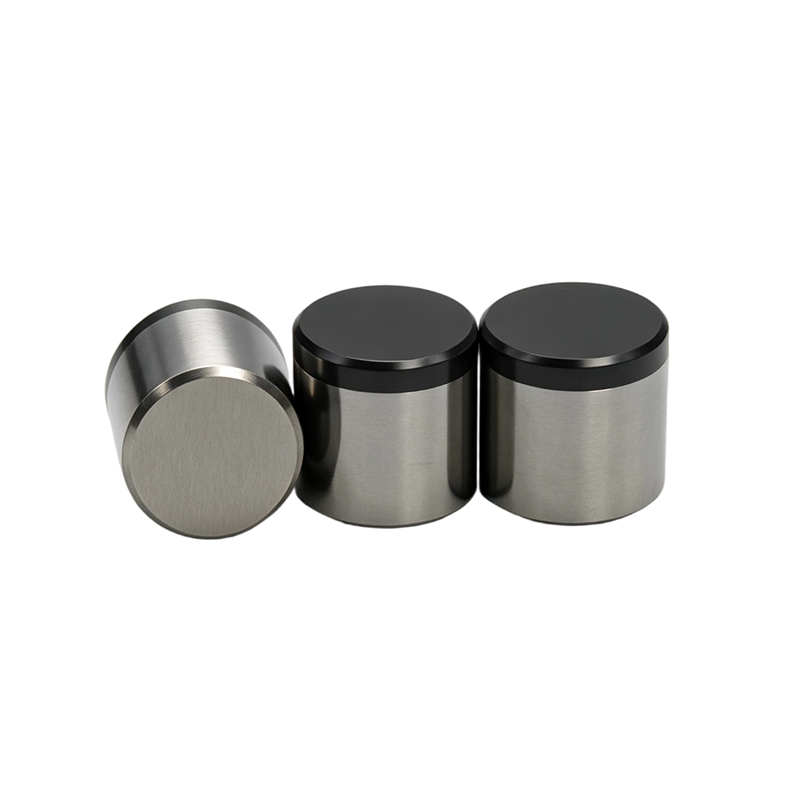

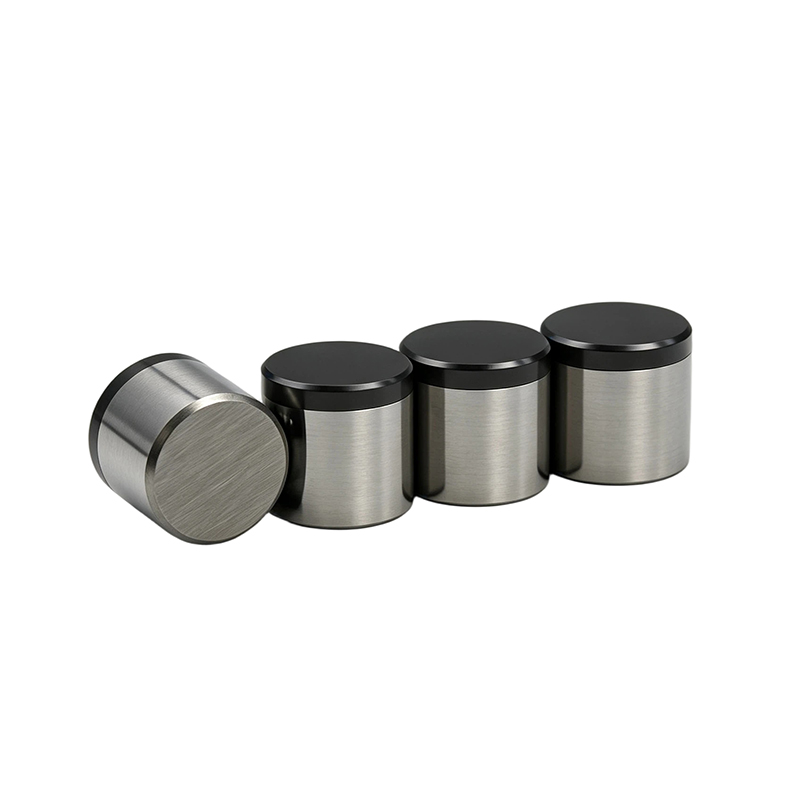

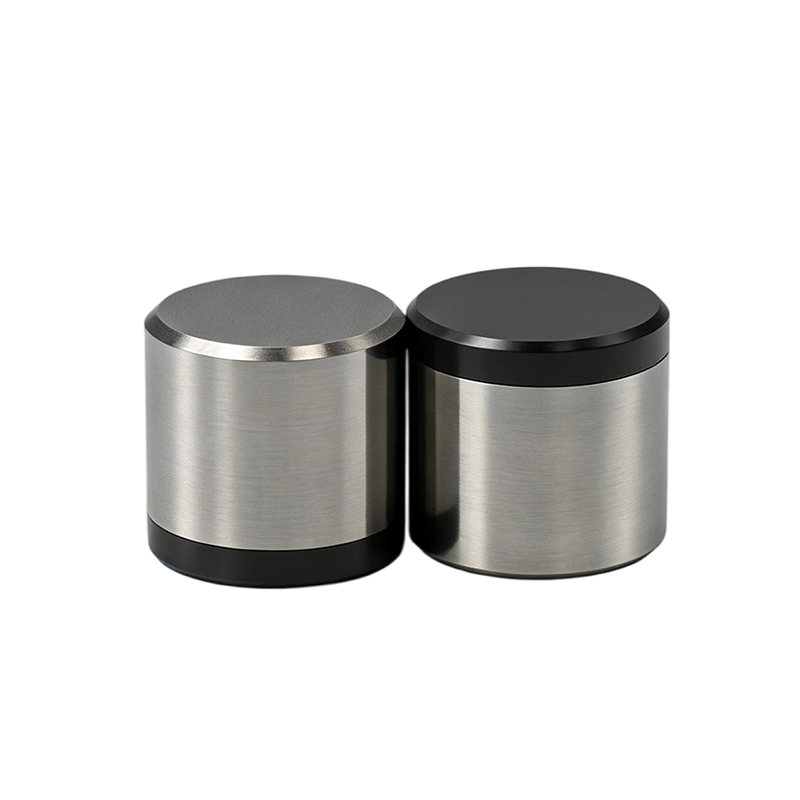

13mm FC1313 Mining PDC Flat Cutter | Polycrystalline Diamond Compact Cutter for Heavy-Duty Rock Drilling
Diameter: 13mm
Height: 13mm
Diamond layer thickness: 1.5mm-1.8mm
Chamfer: 0.3mm x 45°
Request a quote for detailed information (MOQ, price, delivery)
Share:
13mm FC1313 Mining PDC Flat Cutter | Polycrystalline Diamond Compact Cutter for Heavy-Duty Rock Drilling :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: FC1313
· Product Type: Mining PDC Flat Cutter
· Tooth Shape: Flat
· Diameter (mm): 13.40
· Total Height (mm): 13.00
· Diamond Height (mm): 1.5-1.8
· Chamfer: 0.3mm x 45°
· Manufacturing Process: HPHT Sintering
· Application: The FC1313 Mining PDC Flat Cutter is widely used in:
- Mining drill bits
- Hard rock drilling tools
- Anchor drilling systems
- Geological exploration drilling
- PDC drag bits
- Core drilling tools
- Quarry drilling
- Tunneling and infrastructure drilling
Product Description
The FC1313 Mining PDC Flat Cutter features a 13.40 mm diameter, 13.00 mm height, and a 1.5–1.8 mm premium polycrystalline diamond layer. Manufactured using advanced HPHT sintering technology, it is specifically engineered for heavy-duty mining and hard rock drilling applications requiring outstanding impact resistance and long service life.
Heavy-Duty 13mm Mining PDC Flat Cutter for Demanding Rock Formations
The FC1313 Mining PDC Flat Cutter is designed for drilling environments where high impact resistance and long-term durability are critical. Manufactured using advanced High Pressure High Temperature (HPHT) sintering technology, it permanently bonds a premium polycrystalline diamond table to a high-strength tungsten carbide substrate, creating a cutting element capable of withstanding severe impact and abrasive wear.
Compared with shorter cutter designs, the 13 mm cutter height provides improved structural strength and stability, making the FC1313 well suited for heavy-duty mining tools operating in hard and abrasive rock formations. It is widely used in mining drill bits, anchor drilling tools, geological drilling equipment, and other applications requiring reliable cutting performance and extended service life.
FC series
The Flat Cutter (FC) series for mining applications is available in multiple dimensions to suit various bit designs and formation hardness levels. Below are the standard mining-grade options:
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) | Chamfer |
FC0808 | 8.00 | 8.00 | 1.5-1.8 | 0.3mm x 45° |
FC0810 | 8.00 | 10.00 | 1.5-1.8 | 0.3mm x 45° |
FC1008 | 10.00 | 8.00 | 1.5-1.8 | 0.3mm x 45° |
FC1010 | 10.00 | 10.00 | 1.5-1.8 | 0.3mm x 45° |
FC1308 | 13.00 | 8.00 | 1.5-1.8 | 0.3mm x 45° |
FC1608 | 16.00 | 8.00 | 1.5-1.8 | 0.3mm x 45° |
FC1610 | 16.00 | 10.00 | 1.5-1.8 | 0.3mm x 45° |
FC1613 | 16.00 | 13.00 | 1.5-1.8 | 0.3mm x 45° |
Note: Custom heights and chamfer angles are available for OEM orders. | ||||
Key Features
- 13.40 mm precision diameter
- 13.00 mm heavy-duty cutter height
- Premium polycrystalline diamond table
- 1.5–1.8 mm diamond layer thickness
- 0.3 × 45° precision chamfer
- Advanced HPHT sintering technology
- Excellent impact resistance
- Superior wear resistance
- High thermal stability
- Long operational life
Performance Advantages
Enhanced Impact Resistance -The taller cutter body improves structural rigidity and enables the FC1313 to withstand repeated impact loads encountered in heavy-duty mining and hard rock drilling.
Superior Wear Resistance -The premium polycrystalline diamond layer maintains a sharp cutting edge even in abrasive formations, extending cutter life and improving drilling efficiency.
Reliable Stability -The optimized height-to-diameter ratio provides better support within the drill bit, helping maintain stable cutting performance during continuous drilling.
Reduced Operating Costs - Longer service life and reduced replacement frequency contribute to lower maintenance costs and improved productivity for mining operations.
Advanced HPHT Manufacturing Technology
The FC1313 is produced using advanced High Pressure High Temperature (HPHT) sintering technology. Premium synthetic diamond particles are permanently bonded to a high-quality tungsten carbide substrate, ensuring exceptional bonding strength, thermal stability, and dimensional consistency. Each cutter is manufactured under strict quality control to guarantee reliable performance in demanding drilling applications.
OEM & Customization
Better Drilling provides complete OEM and ODM manufacturing services for PDC cutters.
Customization options include:
· Custom dimensions
· Diamond layer thickness
· Chamfer angle optimization
· Laser logo marking
· Surface finishing
· Private label packaging
· Bulk production support
