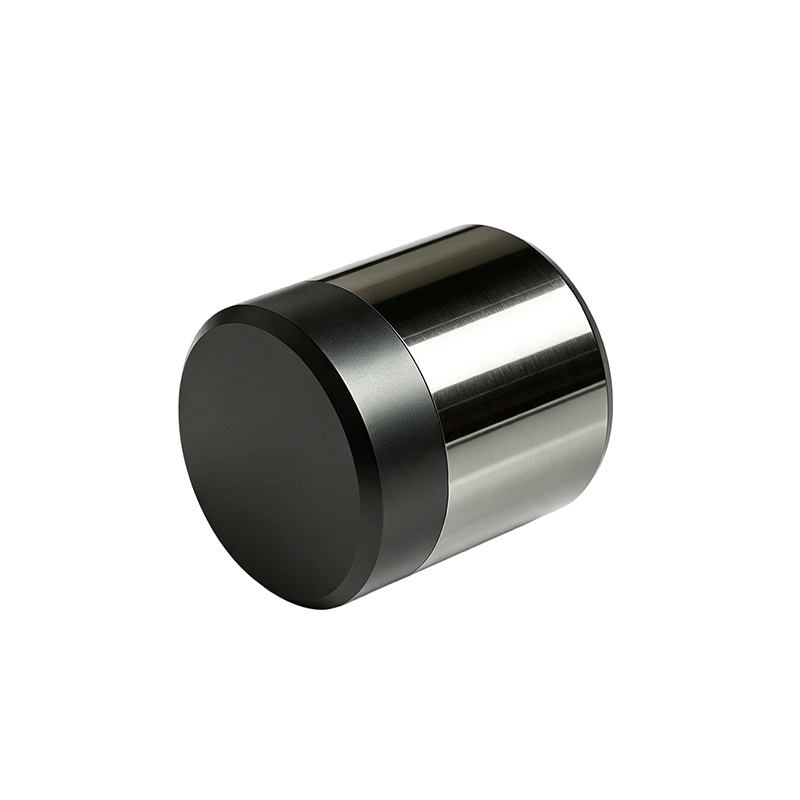

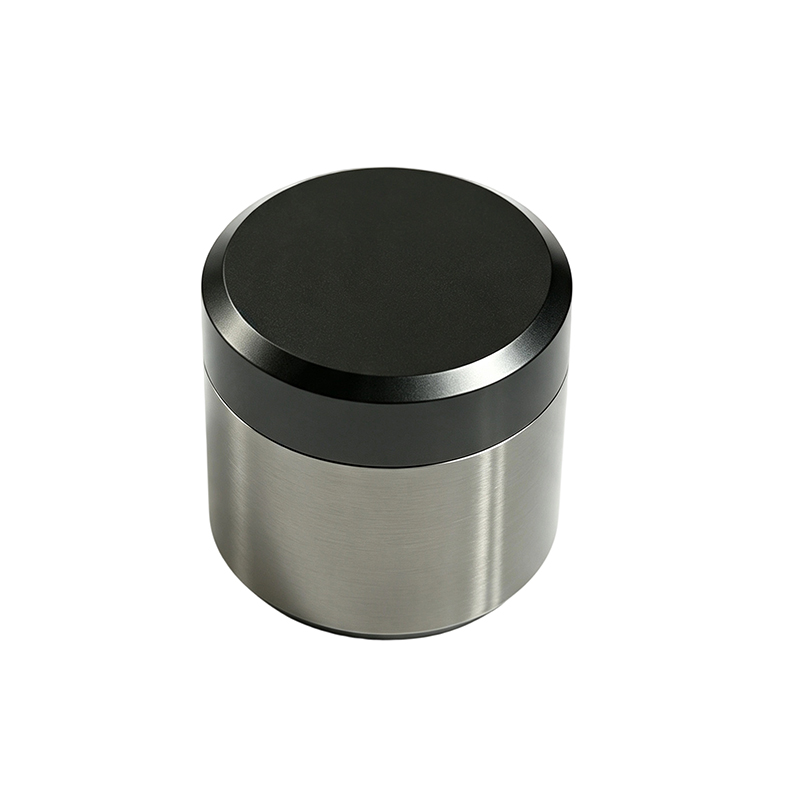

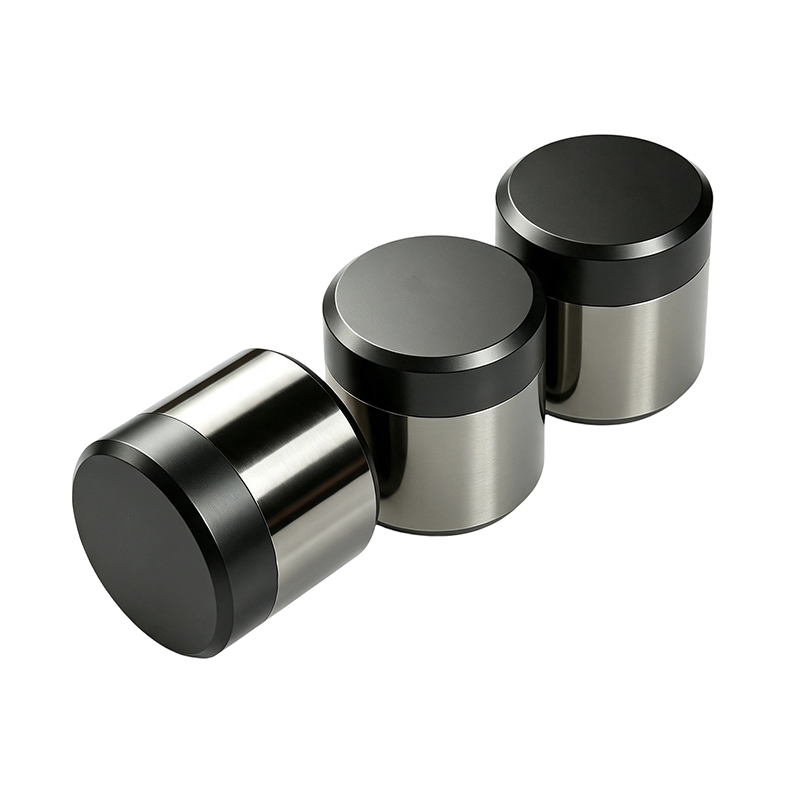

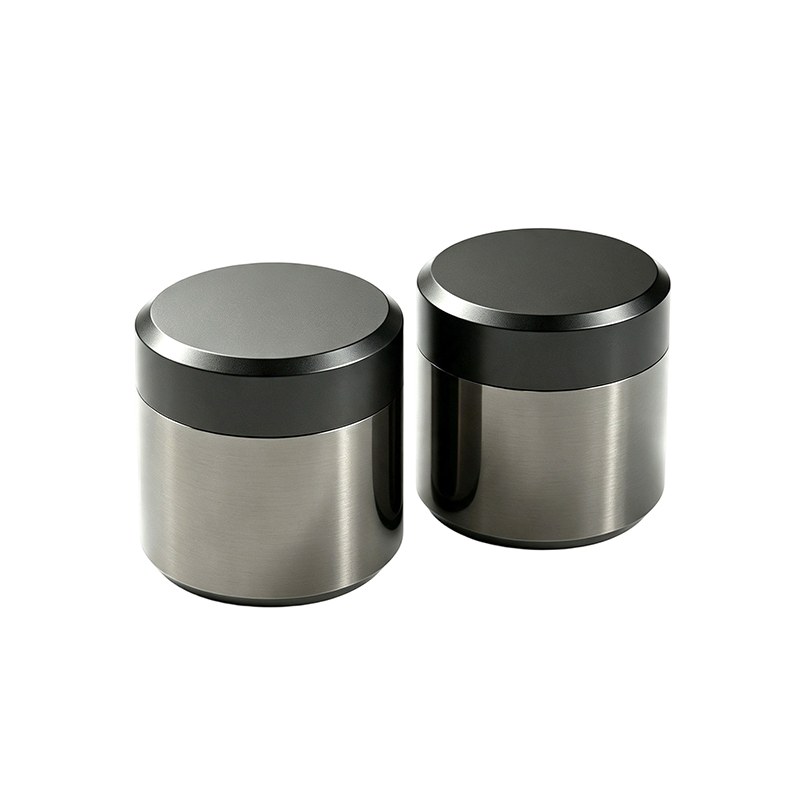

8mm FC0808 PDC Flat Cutter | Polycrystalline Diamond Compact Cutter for Oil & Gas Drilling
Diameter: 8mm
Height: 8mm
Diamond layer thickness: 1.5mm-1.8mm
Chamfer: 0.3mm x 45°
Request a quote for detailed information (MOQ, price, delivery)
Share:
8mm FC0808 PDC Flat Cutter | Polycrystalline Diamond Compact Cutter for Oil & Gas Drilling :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: FC0808
· Product Type: Mining PDC Flat Cutter
· Tooth Shape: Flat
· Diameter (mm): 8.00
· Total Height (mm): 8.00
· Diamond Height (mm): 1.8-2.5
· Chamfer: 0.3mm x 45°
· Manufacturing Process: HPHT Sintering
· Application: The FC0808 PDC Flat Cutter is widely used in:
- Oil & gas drilling bits
- PDC drill bits
- Directional drilling systems
- Horizontal drilling tools
- Core drilling tools
- Geological drilling equipment
- Downhole drilling tools
- Energy exploration drilling
Product Description
The FC0808 PDC Flat Cutter features an 8.00 mm diameter, 8.00 mm height, and a premium 1.8–2.5 mm polycrystalline diamond layer. Manufactured using advanced HPHT sintering technology, it is specifically designed for oil & gas drilling applications requiring excellent wear resistance, cutting efficiency, and long service life.
Precision 8mm PDC Flat Cutter for Oil & Gas Drilling
The FC0808 PDC Flat Cutter is a compact cutting element designed for high-performance oil and gas drilling applications. Featuring an 8.00 mm diameter and an optimized 8.00 mm cutter height, it provides excellent cutting precision while maintaining outstanding durability in demanding drilling environments.
Manufactured using advanced High Pressure High Temperature (HPHT) sintering technology, the premium polycrystalline diamond layer is permanently bonded to a high-strength tungsten carbide substrate. The thicker 1.8–2.5 mm diamond table provides enhanced wear resistance and longer operational life, making the FC0808 ideal for PDC drill bits used in soft to medium-hard formations.
FC series
The FC series PDC Flat Cutters for oil and gas drilling are available in multiple sizes to suit different drill bit designs and drilling conditions. Standard models are listed below.
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) | Chamfer |
FC0810 | 8.00 | 10.00 | 1.8-2.5 | 0.3mm x 45° |
FC1008 | 10.00 | 8.00 | 1.8-2.5 | 0.3mm x 45° |
FC1010 | 10.00 | 10.00 | 1.8-2.5 | 0.3mm x 45° |
FC1308 | 13.40 | 8.00 | 1.8-2.5 | 0.3mm x 45° |
FC1313 | 13.40 | 13.00 | 1.8-2.5 | 0.3mm x 45° |
FC1608 | 16.00 | 8.00 | 1.8-2.5 | 0.3mm x 45° |
FC1610 | 16.00 | 10.00 | 1.8-2.5 | 0.3mm x 45° |
FC1613 | 16.00 | 13.00 | 1.8-2.5 | 0.3mm x 45° |
Note: Custom heights and chamfer angles are available for OEM orders. | ||||
Key Features
- 8.00 mm precision cutter diameter
- 8.00 mm compact cutter height
- Premium polycrystalline diamond table
- 1.8–2.5 mm diamond layer thickness
- 0.3 × 45° precision chamfer
- Advanced HPHT sintering technology
- Excellent wear resistance
- High cutting efficiency
- Superior thermal stability
- Long service life
Performance Advantages
High Drilling Efficiency -The compact cutter geometry delivers efficient rock cutting with reduced drilling resistance, helping improve the rate of penetration (ROP) in oil and gas drilling operations.
Enhanced Wear Resistance - A premium 1.8–2.5 mm diamond layer provides outstanding abrasion resistance, allowing the cutter to maintain a sharp cutting edge during extended drilling.
Excellent Thermal Stability - Advanced HPHT manufacturing technology ensures stable performance under high-temperature drilling conditions, reducing the risk of thermal degradation.
Extended Service Life - The optimized diamond table and carbide substrate combination significantly improves durability, reducing replacement frequency and lowering overall drilling costs.
Advanced HPHT Manufacturing Technology
Every FC0808 PDC Flat Cutter is produced using advanced High Pressure High Temperature (HPHT) sintering technology. Carefully selected synthetic diamond particles are permanently bonded to a premium tungsten carbide substrate under extreme pressure and temperature, creating exceptional bonding strength, excellent wear resistance, and consistent product quality.
OEM & Customization
Better Drilling provides complete OEM and ODM manufacturing services for PDC cutters.
Customization options include:
· Customized dimensions
· Diamond layer thickness
· Chamfer design
· Laser logo marking
· Surface finishing
· Packaging solutions
· Bulk production support
