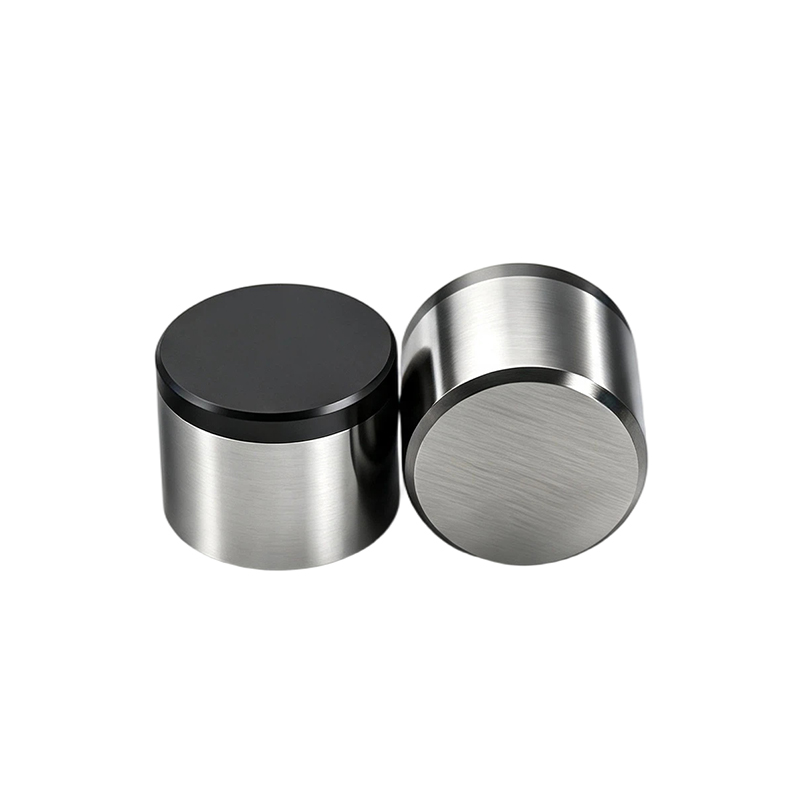

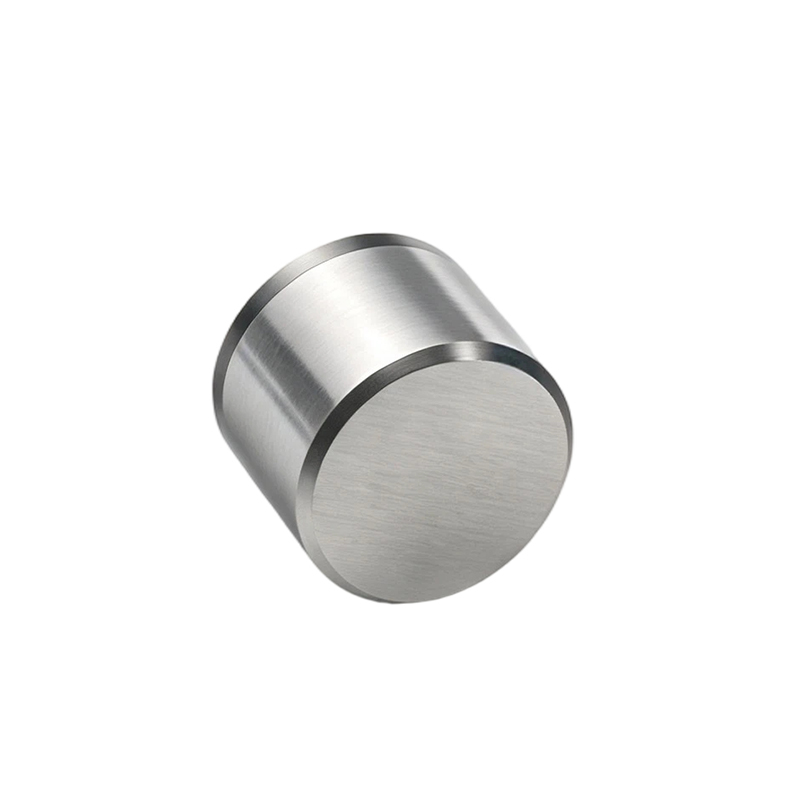

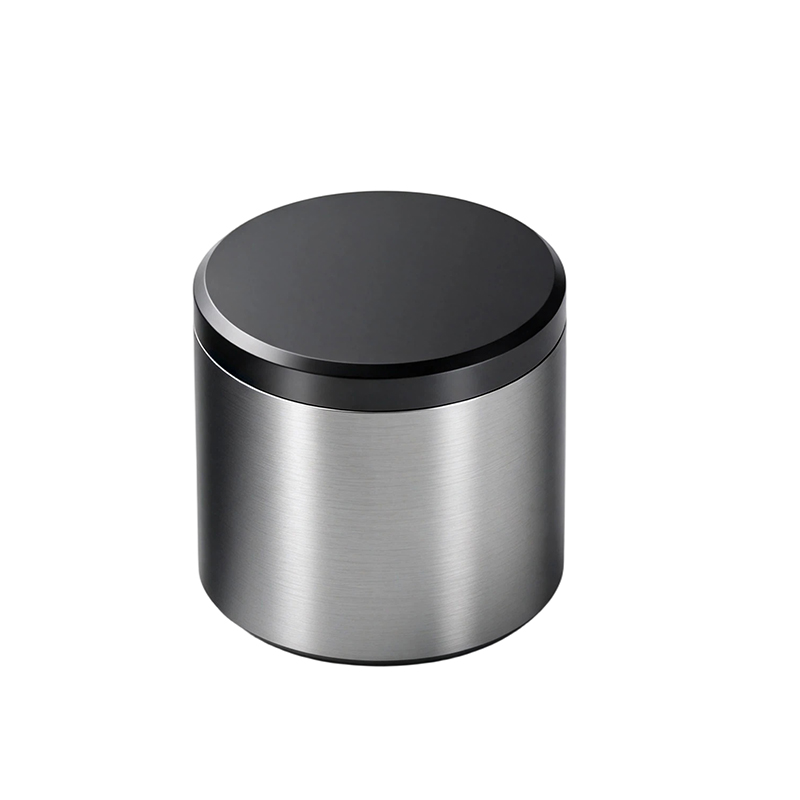

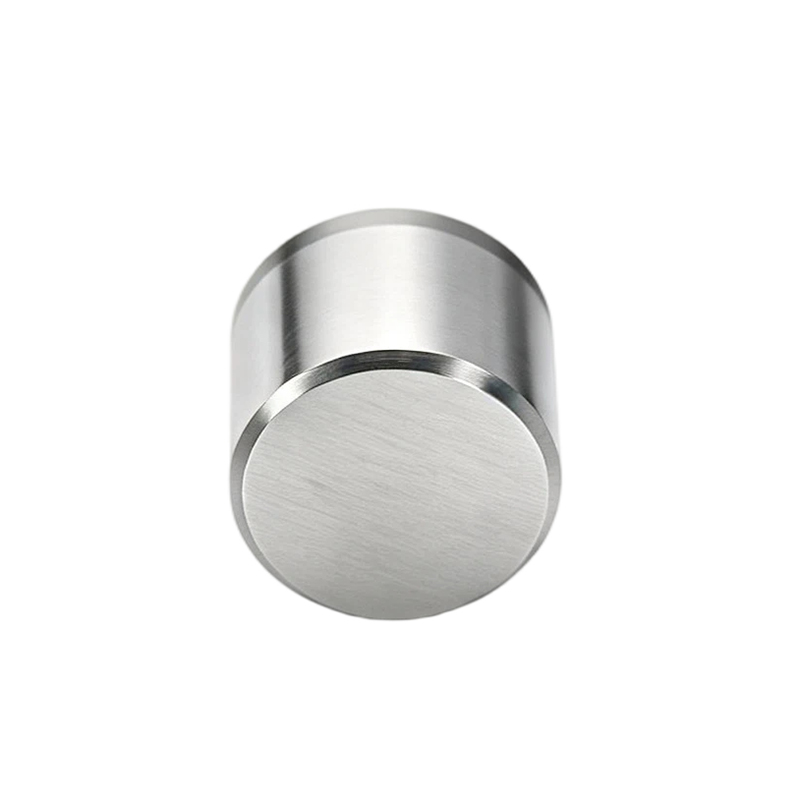

16mm FC1613 Mining PDC Flat Cutter | Polycrystalline Diamond Compact Cutter for Heavy-Duty Rock Drilling
Diameter: 16mm
Height: 13mm
Diamond layer thickness: 1.5mm-1.8mm
Chamfer: 0.3mm x 45°
Request a quote for detailed information (MOQ, price, delivery)
Share:
16mm FC1613 Mining PDC Flat Cutter | Polycrystalline Diamond Compact Cutter for Heavy-Duty Rock Drilling :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: FC1613
· Product Type: Mining PDC Flat Cutter
· Tooth Shape: Flat
· Diameter (mm): 16.00
· Total Height (mm): 13.00
· Diamond Height (mm): 1.5-1.8
· Chamfer: 0.3mm x 45°
· Manufacturing Process: HPHT Sintering
· Application: The FC1613 Mining PDC Flat Cutter is widely used in:
- Mining drill bits
- Hard rock drilling tools
- Large PDC drag bits
- Core drilling systems
- Geological exploration drilling
- Quarry drilling equipment
- Tunnel excavation tools
- Foundation drilling equipment
Product Description
The FC1613 Mining PDC Flat Cutter features a 16.00 mm diameter, 13.00 mm height, and a premium 1.5–1.8 mm polycrystalline diamond layer. Manufactured using advanced HPHT sintering technology, it delivers outstanding wear resistance, high impact strength, and long service life for heavy-duty mining and hard rock drilling applications.
Large Diameter 16 mm PDC Flat Cutter for Heavy-Duty Mining Applications
The FC1613 Mining PDC Flat Cutter is engineered for demanding drilling environments where high durability and cutting efficiency are essential. Featuring a larger 16 mm diameter and a robust 13 mm cutter height, it offers a greater cutting contact area and improved load-bearing capacity compared with smaller cutter sizes.
Manufactured using advanced High Pressure High Temperature (HPHT) sintering technology, the premium polycrystalline diamond layer is permanently bonded to a high-strength tungsten carbide substrate. This structure provides exceptional wear resistance, impact toughness, and thermal stability, ensuring reliable performance in abrasive and hard rock formations.
The FC1613 is widely used in mining drill bits, PDC drag bits, core bits, geological drilling tools, and other heavy-duty rock cutting equipment.
FC series
The Flat Cutter (FC) series for mining applications is available in multiple dimensions to suit various bit designs and formation hardness levels. Below are the standard mining-grade options:
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) | Chamfer |
FC0808 | 8.00 | 8.00 | 1.5-1.8 | 0.3mm x 45° |
FC0810 | 8.00 | 10.00 | 1.5-1.8 | 0.3mm x 45° |
FC1008 | 10.00 | 8.00 | 1.5-1.8 | 0.3mm x 45° |
FC1010 | 10.00 | 10.00 | 1.5-1.8 | 0.3mm x 45° |
FC1308 | 13.40 | 8.00 | 1.5-1.8 | 0.3mm x 45° |
FC1313 | 13.40 | 13.00 | 1.5-1.8 | 0.3mm x 45° |
FC1608 | 16.00 | 8.00 | 1.5-1.8 | 0.3mm x 45° |
FC1610 | 16.00 | 10.00 | 1.5-1.8 | 0.3mm x 45° |
Note: Custom heights and chamfer angles are available for OEM orders. | ||||
Key Features
- 16.00 mm large-diameter cutter
- 13.00 mm heavy-duty cutter height
- Premium polycrystalline diamond table
- 1.5–1.8 mm diamond layer thickness
- 0.3 × 45° precision chamfer
- Advanced HPHT sintering technology
- Excellent wear resistance
- Outstanding impact toughness
- High thermal stability
- Extended service life
Performance Advantages
Larger Cutting Area -The 16 mm cutter diameter provides a larger cutting surface, helping improve rock-breaking efficiency and supporting higher drilling productivity in large-diameter drill bits.
Outstanding Wear Resistance -The premium diamond table maintains excellent cutting performance in highly abrasive formations, reducing wear and extending service life.
High Load Capacity -The robust cutter body is designed to withstand high mechanical loads and repeated impacts, making it suitable for demanding mining applications.
Reduced Drilling Costs - Its long operational life minimizes cutter replacement frequency, lowering maintenance costs and improving overall drilling efficiency.
Advanced HPHT Manufacturing Technology
Each FC1613 PDC Flat Cutter is manufactured using advanced High Pressure High Temperature (HPHT) sintering technology. Premium synthetic diamond particles are permanently bonded to a high-quality tungsten carbide substrate under precisely controlled pressure and temperature. This manufacturing process ensures superior bonding strength, excellent dimensional consistency, and stable performance in demanding drilling conditions.
OEM & Customization
Better Drilling provides complete OEM and ODM manufacturing services, including:
· Customized dimensions
· Diamond layer thickness
· Chamfer angle optimization
· Laser logo marking
· Surface finishing
· Private label packaging
· Bulk production support
