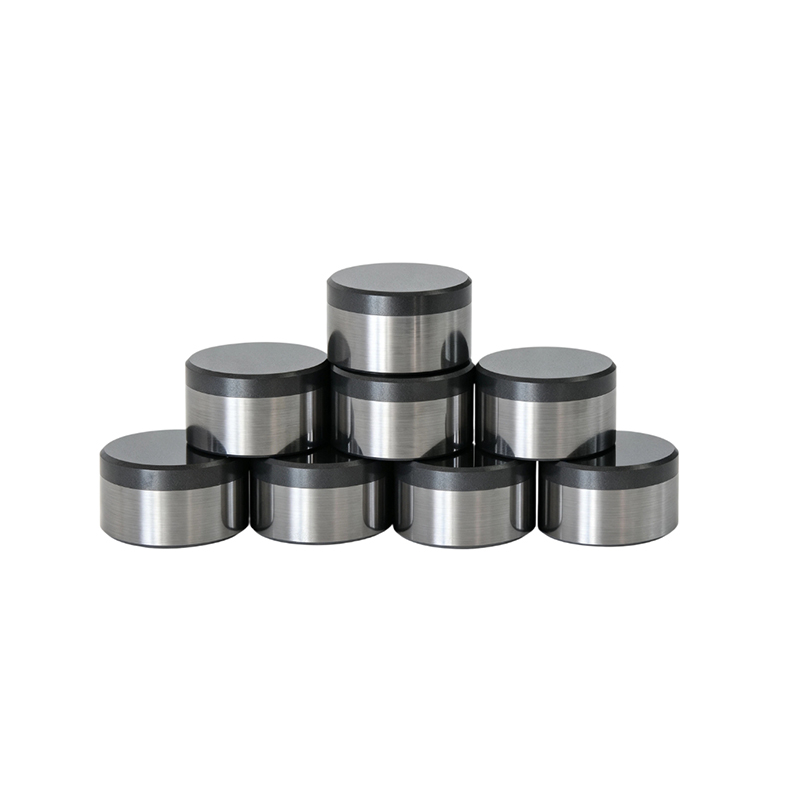

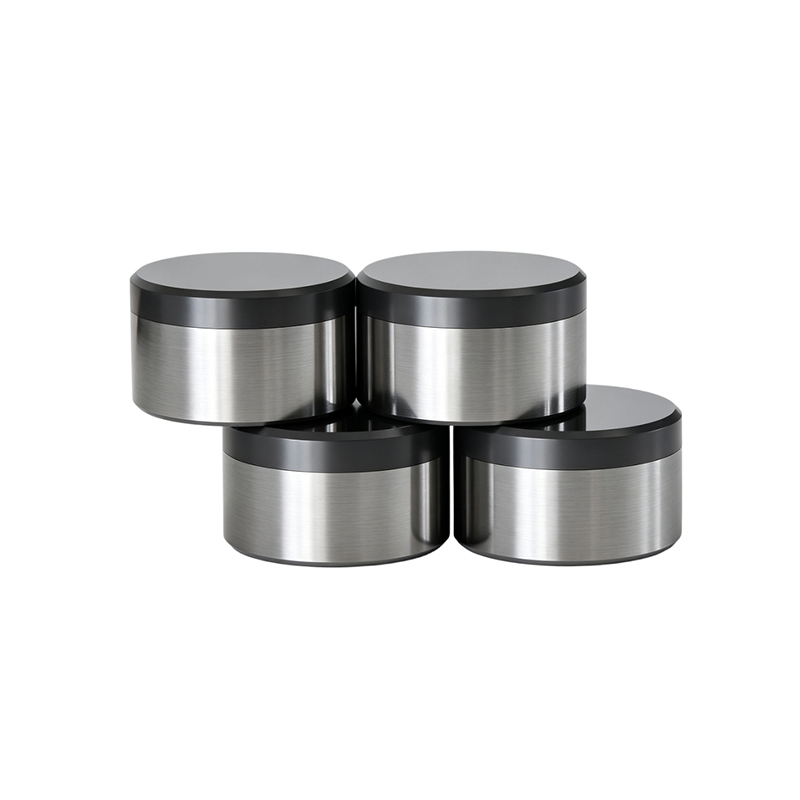

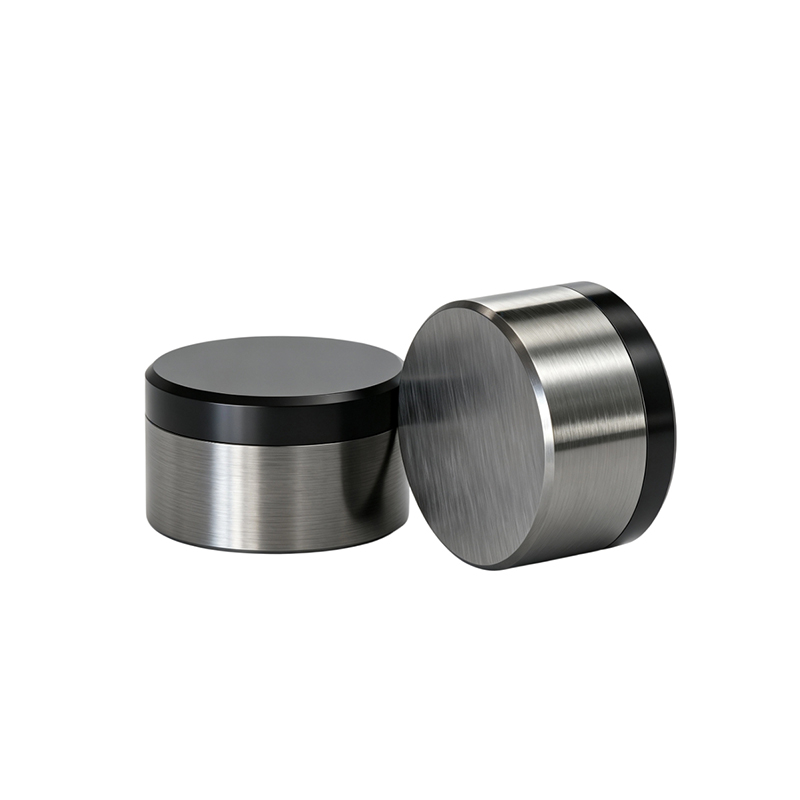

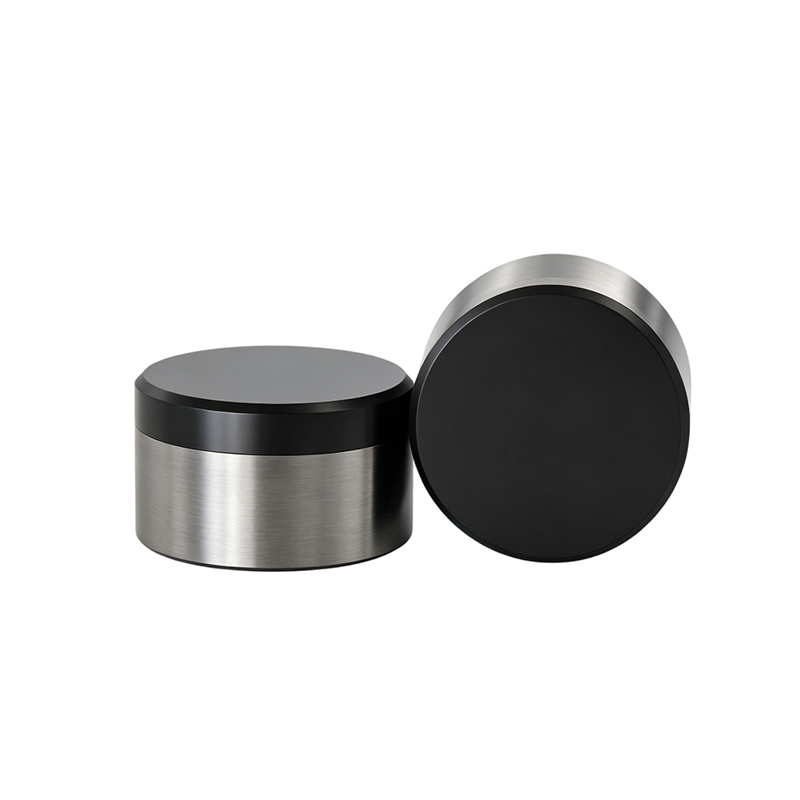

13mm FC1308 PDC Flat Cutter Manufacturer | Polycrystalline Diamond Compact Cutter
Diameter: 13mm
Height: 8mm
Diamond layer thickness: 1.5mm-1.8mm
Chamfer: 0.3mm x 45°
Request a quote for detailed information (MOQ, price, delivery)
Share:
13mm FC1308 PDC Flat Cutter Manufacturer | Polycrystalline Diamond Compact Cutter :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: FC1308
· Product Type: Mining PDC Flat Cutter
· Tooth Shape: Flat
· Diameter (mm): 13.40
· Total Height (mm): 8.00
· Diamond Height (mm): 1.5-1.8
· Chamfer: 0.3mm x 45°
· Manufacturing Process: HPHT Sintering
· Application: The FC1308 PDC Flat Cutter is suitable for:
- Oil & gas drilling bits
- PDC drag bits
- Core drill bits
- Geological exploration drilling
- Mining drilling tools
- Water well drilling
- Directional drilling tools
- Rock cutting equipment
Product Description
The FC1308 PDC Flat Cutter features a 13.40 mm diameter and an advanced polycrystalline diamond layer bonded to a premium tungsten carbide substrate using HPHT sintering technology. Designed for oil & gas drilling and PDC drag bits, it delivers outstanding wear resistance, impact toughness, and high drilling efficiency in demanding rock formations.
High-Efficiency 13mm PDC Flat Cutter for Oil & Gas Drilling
The FC1308 PDC Flat Cutter is engineered for drilling applications that require high penetration rates and exceptional durability. Manufactured using advanced High Pressure High Temperature (HPHT) sintering technology, it permanently bonds a premium polycrystalline diamond layer to a high-strength tungsten carbide substrate, creating a cutting element capable of withstanding severe wear and impact.
With a 13.40 mm diameter, 8.00 mm height, a 1.5–1.8 mm diamond table, and a 0.3 × 45° chamfer, the FC1308 provides an excellent balance between cutting efficiency and durability. It is widely used in PDC drag bits, oil and gas drill bits, geological drilling tools, and mining drilling equipment where reliable performance and long service life are essential.
FC series
The Flat Cutter (FC) series for mining applications is available in multiple dimensions to suit various bit designs and formation hardness levels. Below are the standard mining-grade options:
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) | Chamfer |
FC0808 | 8.00 | 8.00 | 1.5-1.8 | 0.3mm x 45° |
FC0810 | 8.00 | 10.00 | 1.5-1.8 | 0.3mm x 45° |
FC1008 | 10.00 | 8.00 | 1.5-1.8 | 0.3mm x 45° |
FC1010 | 10.00 | 10.00 | 1.5-1.8 | 0.3mm x 45° |
FC1313 | 13.40 | 13.00 | 1.5-1.8 | 0.3mm x 45° |
FC1608 | 16.00 | 8.00 | 1.5-1.8 | 0.3mm x 45° |
FC1610 | 16.00 | 10.00 | 1.5-1.8 | 0.3mm x 45° |
FC1613 | 16.00 | 13.00 | 1.5-1.8 | 0.3mm x 45° |
Note: Custom heights and chamfer angles are available for OEM orders. | ||||
Key Features
- 13.40 mm precision diameter
- Premium polycrystalline diamond table
- High-strength tungsten carbide substrate
- 1.5–1.8 mm diamond layer thickness
- 0.3 × 45° precision chamfer
- Advanced HPHT sintering technology
- Excellent wear resistance
- Superior impact toughness
- High thermal stability
- Long service life
Performance Advantages
Faster Penetration Rate -The optimized cutter geometry and premium diamond table improve cutting efficiency, helping increase the rate of penetration (ROP) while reducing drilling time.
Outstanding Wear Resistance -The high-quality polycrystalline diamond layer provides excellent resistance to abrasive formations, maintaining cutting performance over extended drilling cycles.
mpact loads, reducing the risk of premature failure under harsh drilling conditions.
Strong Impact Resistance -The precision-bonded tungsten carbide substrate absorbs impact loads effectively, ensuring stable performance in demanding drilling environments.
Long Tool Life - The combination of HPHT manufacturing technology and premium raw materials extends cutter service life and reduces replacement frequency, lowering overall drilling costs.
Advanced HPHT Manufacturing Technology
The FC1308 is manufactured using advanced High Pressure High Temperature (HPHT) sintering technology. Premium synthetic diamond particles are permanently bonded to a high-strength tungsten carbide substrate under extreme pressure and temperature, creating exceptional bonding strength, thermal stability, and wear resistance. Every cutter undergoes strict dimensional and quality inspection to ensure consistent performance.
OEM & Customization
Better Drilling provides complete OEM and ODM manufacturing services for PDC cutters.
Customization options include:
· Customized dimensions
· Diamond layer thickness
· Chamfer design
· Laser logo marking
· Surface finishing
· Customized packaging
· Bulk production for drilling tool manufacturers
