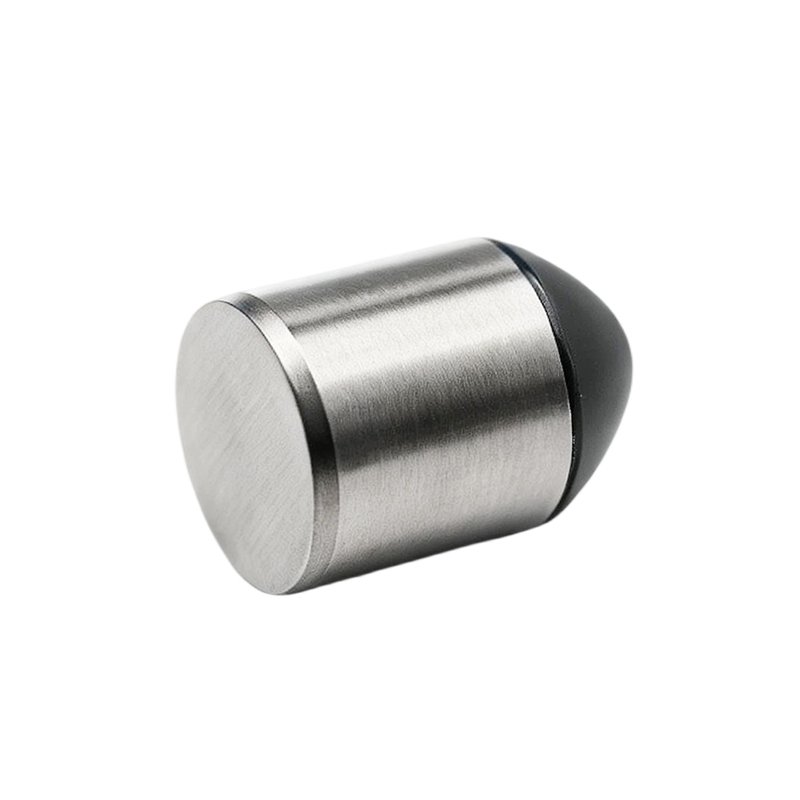

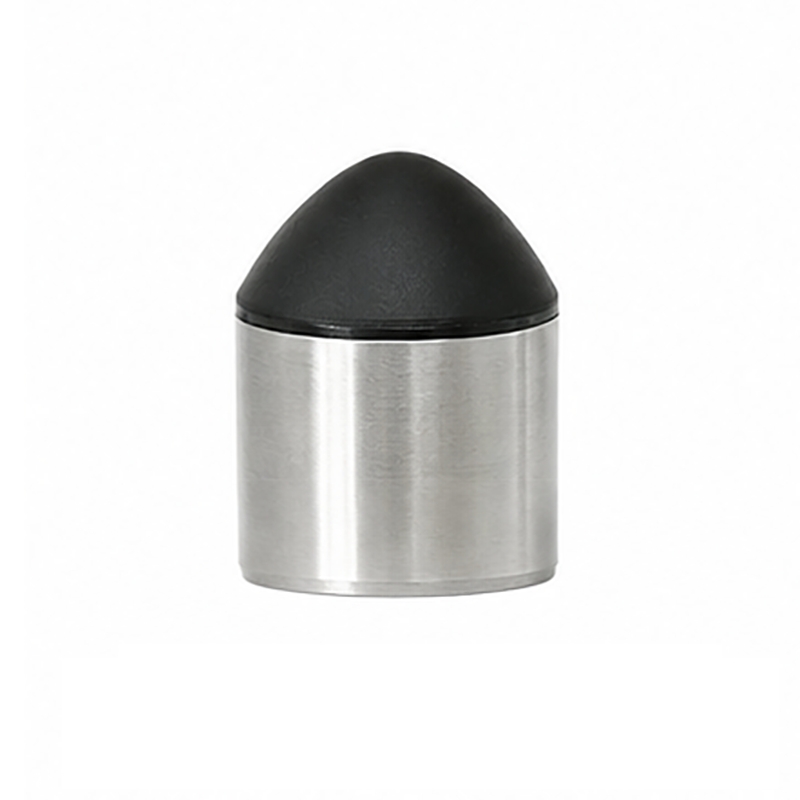

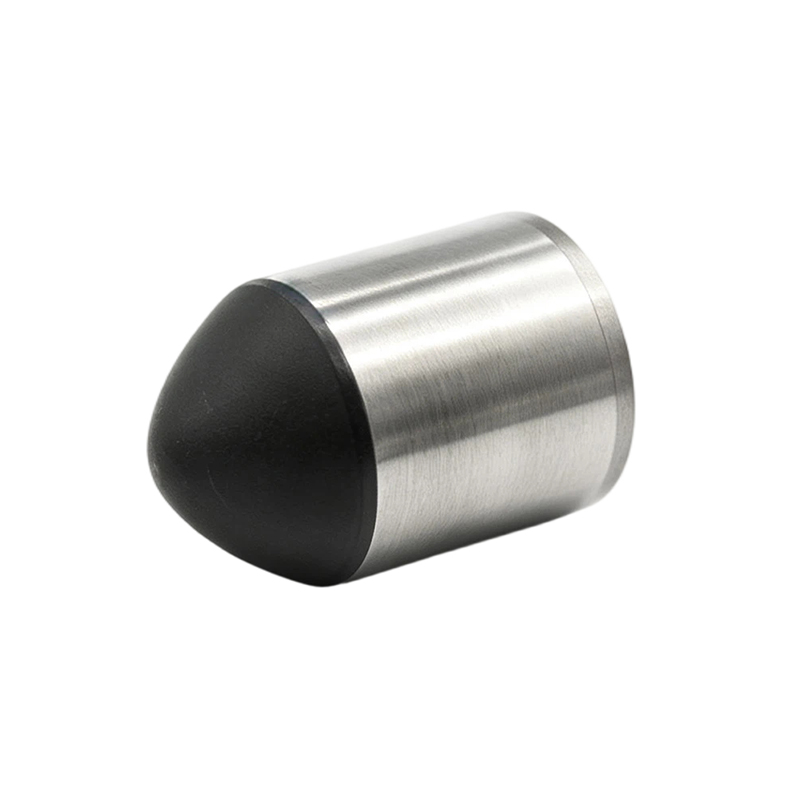

11mm PC1112 PDC Parabolic Cutter | Polycrystalline Diamond Compact Cutter for Oil & Gas Drilling
Diameter: 11.18 mm
Height: 12.3 mm
Diamond layer thickness: 4.02 mm
Quality Certification: ISO 9001
Request a quote for detailed information (MOQ, price, delivery)
Share:
11mm PC1112 PDC Parabolic Cutter | Polycrystalline Diamond Compact Cutter for Oil & Gas Drilling :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: PC1112
· Product Type: PDC Parabolic Cutter
· Tooth Shape: Parabolic
· Diameter (mm): 11.18
· Total Height (mm): 12.3
· Diamond Height (mm): 4.02
· Manufacturing Process: HPHT Sintering
· Substrate: Tungsten Carbide
· Application: The PC1112 PDC Parabolic Cutter is suitable for:
- Oil and gas drilling
- PDC drill bits
- Directional drilling tools
- Downhole drilling tools
- Geological drilling
- Formation cutting
- Rock drilling applications
Product Description
The PC1112 PDC Parabolic Cutter features an 11.18 mm diameter, 12.3 mm total height, and 4.02 mm diamond height. Its curved PDC profile is designed for efficient formation penetration and durable cutting performance in oil and gas drilling applications.
PC1112 PDC Parabolic Cutter for Oil & Gas Drilling
The PC1112 PDC Parabolic Cutter is a shaped PDC cutting element designed for drilling tools that require efficient formation penetration and reliable wear resistance.
Its parabolic working profile provides a curved cutting surface that helps concentrate cutting forces during formation contact. With its larger dimensions and deeper diamond cutting section compared with smaller PC series cutters, the PC1112 is suitable for demanding PDC drilling applications where stable cutting performance and cutter durability are important.
The cutter features an 11.18 mm diameter, 12.3 mm total height, and 4.02 mm diamond height, providing a robust configuration for oil and gas drilling tools.
The PC1112 combines a polycrystalline diamond cutting layer with a tungsten carbide substrate. The diamond layer performs the primary cutting action, while the carbide substrate provides structural support for the cutter.
PC series
The PC series PDC Parabolic Cutters are available in various dimensions to meet different bit designs and rock cutting requirements. Standard models are listed below.
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) | Radius |
PC0605 | 6.42 | 5.8 | 1.41 | / |
PC0807 | 8.01 | 7.1 | 2.14 | / |
PC1112 | 11.18 | 12.3 | 4.02 | / |
PC1419 | 14.36 | 19.4 | 6.52 | / |
PC1623 | 16.15 | 23.0 | 6.63 | / |
PC1823 | 18.15 | 22.9 | 5.90 | / |
PC1928 | 19.11 | 28.3 | 7.23 | / |
PC2028 | 20.00 | 28.0 | 7.64 | / |
Note: Custom heights and chamfer angles are available for OEM orders. | ||||
Key Features
- 11.18 mm precision diameter
- Parabolic PDC cutting profile
- 12.3 mm total height
- 4.02 mm diamond height
- Polycrystalline diamond cutting layer
- High-strength tungsten carbide substrate
- Excellent wear resistance
- Efficient formation penetration
- Stable cutting performance
- Durable composite structure
- Suitable for oil and gas drilling tools
Performance Advantages
Efficient Formation Penetration - The parabolic cutting profile provides a focused working surface that helps the cutter engage the formation effectively and support efficient rock removal.
Durable Diamond Cutting Layer -The 4.02 mm diamond height provides a substantial diamond working section for demanding drilling applications, helping maintain the cutting profile during continued formation contact.
Stable Cutting Geometry - The shaped profile creates a controlled interaction between the cutter and formation, supporting consistent cutting performance across PDC drilling applications.
Strong Composite Construction - The PDC diamond layer is bonded to a tungsten carbide substrate, combining the hardness and wear resistance of polycrystalline diamond with the structural strength of carbide.
PDC Diamond Cutting Technology
The PC1112 is a PDC cutting element consisting of a polycrystalline diamond cutting layer and a tungsten carbide substrate.
Its parabolic geometry differs from conventional flat PDC cutters by providing a curved working profile. This design allows the cutter to interact with the formation through a shaped cutting surface, making it suitable for drilling tools designed around parabolic PDC cutters.
The PC1112 is developed for applications where efficient rock cutting, wear resistance, and reliable cutter performance are important.
OEM & Customization
We provide OEM and ODM services for PDC Parabolic Cutters according to specific drilling tool and application requirements.
Customization options include:
· Cutter diameter
· Total height
· Diamond height
· Radius
· Parabolic geometry
· Diamond specifications
· Carbide substrate specifications
· Surface finishing
· Custom packaging
Contact us with your required specifications and application for a customized PDC cutting solution.
