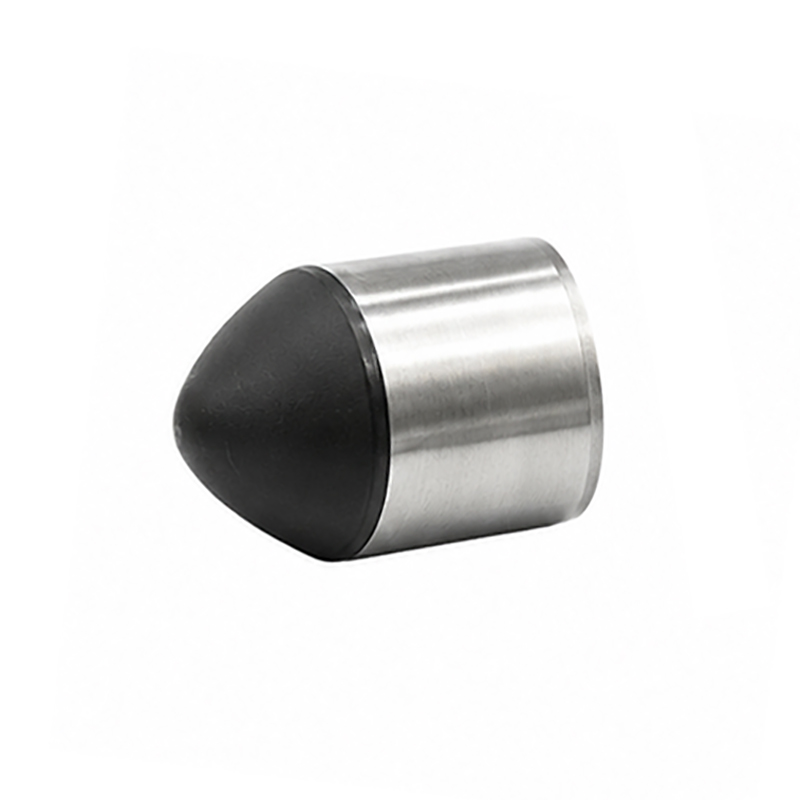

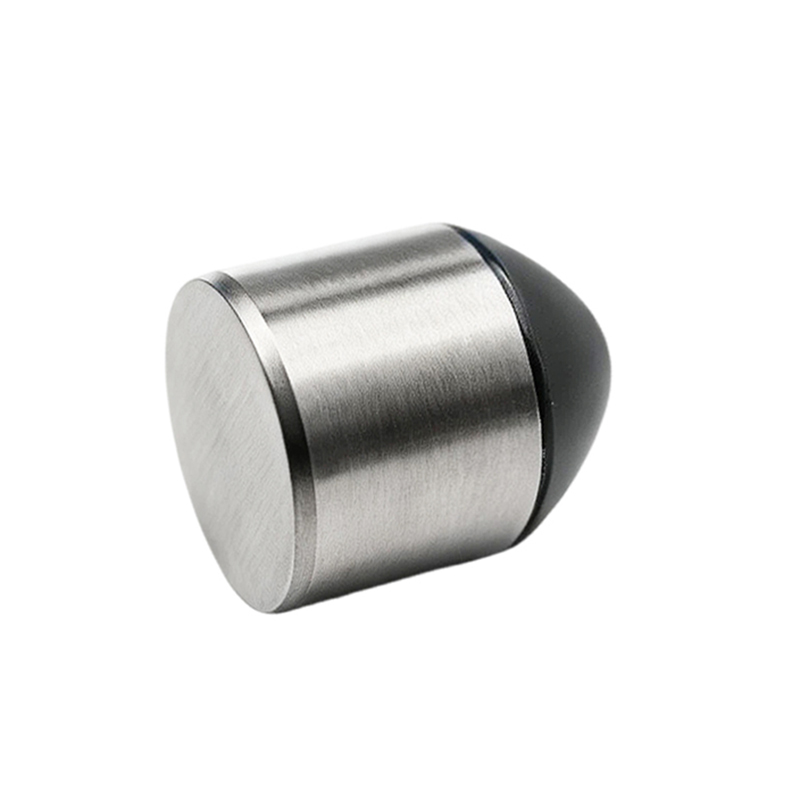

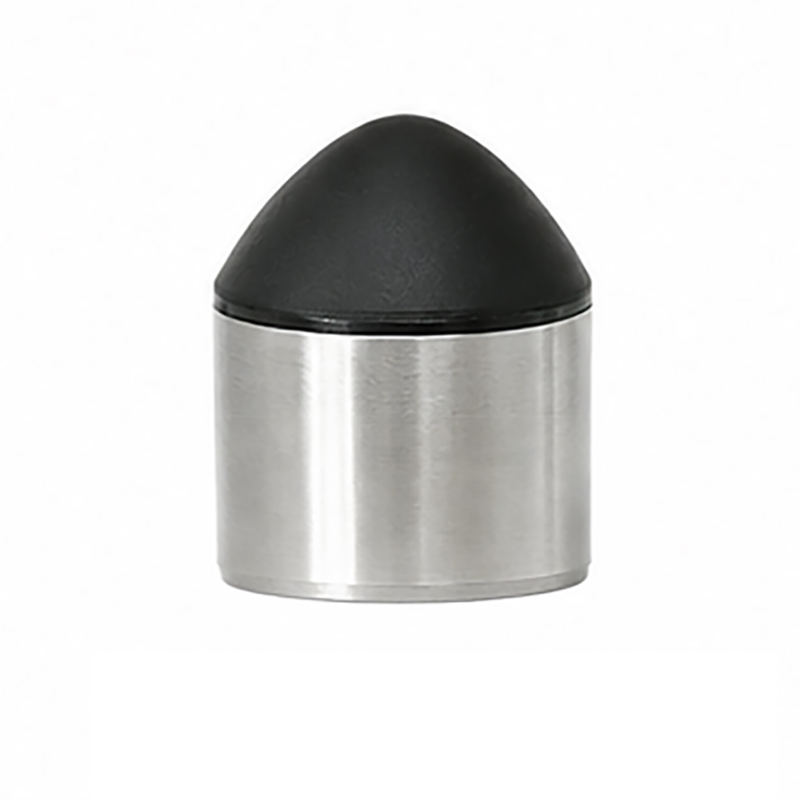

6mm PC0605 PDC Parabolic Cutter | Polycrystalline Diamond Compact Cutter
Diameter: 6.42 mm
Height: 5.8 mm
Diamond layer thickness: 1.41 mm
Radius: 1.41
Request a quote for detailed information (MOQ, price, delivery)
Share:
6mm PC0605 PDC Parabolic Cutter | Polycrystalline Diamond Compact Cutter :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: PC0605
· Product Type: PDC Parabolic Cutter
· Tooth Shape: Parabolic
· Diameter (mm): 6.42
· Total Height (mm): 5.8
· Diamond Height (mm): 1.41
· Manufacturing Process: HPHT Sintering
· Substrate: Tungsten Carbide
· Application: The PC0605 PDC Parabolic Cutter can be used in:
- Rock drilling tools
- Mining drilling tools
- Geological drilling equipment
- PDC drilling tools
- Rock cutting tools
- Specialized drilling equipment
- Heavy-duty cutting tools
Product Description
The PC0605 PDC Parabolic Cutter features a 6.42 mm diameter, 5.8 mm total height, and 1.41 mm diamond height. Its parabolic PDC cutting profile is designed for efficient rock penetration, high wear resistance, and stable cutting performance.
PC0605 PDC Parabolic Cutter for Efficient Rock Cutting
The PC0605 PDC Parabolic Cutter is a precision-engineered cutting element designed for drilling and rock cutting applications where efficient penetration and durable cutting performance are required.
Unlike a conventional flat PDC cutter, the PC0605 features a parabolic cutting profile that provides a concentrated contact area during rock cutting. This geometry helps focus the cutting force and supports efficient penetration while maintaining a controlled cutting action.
The PC0605 has a 6.42 mm diameter, 5.8 mm total height, 1.41 mm diamond height, and 1.41 mm radius. The cutter combines a polycrystalline diamond cutting layer with a high-strength tungsten carbide substrate, providing a balance of diamond wear resistance and carbide mechanical strength.
PC series
The PC series PDC Parabolic Cutters are available in various dimensions to meet different bit designs and rock cutting requirements. Standard models are listed below.
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) | Radius |
PC0605 | 6.42 | 5.8 | 1.41 | / |
PC0807 | 8.01 | 7.1 | 2.14 | / |
PC1112 | 11.18 | 12.3 | 4.02 | / |
PC1419 | 14.36 | 19.4 | 6.52 | / |
PC1623 | 16.15 | 23.0 | 6.63 | / |
PC1823 | 18.15 | 22.9 | 5.90 | / |
PC1928 | 19.11 | 28.3 | 7.23 | / |
PC2028 | 20.00 | 28.0 | 7.64 | / |
Note: Custom heights and chamfer angles are available for OEM orders. | ||||
Key Features
- 6.42 mm precision diameter
- Parabolic PDC cutting profile
- 5.8 mm total height
- 1.41 mm diamond height
- 1.41 mm radius
- Polycrystalline diamond cutting layer
- High-strength tungsten carbide substrate
- Excellent abrasive wear resistance
- Efficient rock penetration
- Stable cutting performance
- Long service life
Performance Advantages
Efficient Rock Penetration - The parabolic profile concentrates cutting forces toward the working tip, helping improve rock penetration and cutting efficiency.
Excellent Wear Resistance - The polycrystalline diamond cutting layer provides high hardness and abrasion resistance, helping maintain the cutting profile during extended drilling operations.
Controlled Cutting Action - The curved geometry creates a controlled contact area with the rock formation, supporting stable cutting performance and efficient material removal.
Durable Composite Construction - The PDC diamond layer is supported by a high-strength tungsten carbide substrate, providing the mechanical strength required for demanding drilling applications.
PDC Diamond Cutting Technology
The PC0605 is a PDC cutting element consisting of a polycrystalline diamond cutting layer bonded to a tungsten carbide substrate.
The diamond layer provides the primary cutting function, while the carbide substrate supports the diamond layer and provides structural strength.
Its parabolic geometry creates a different cutting profile from a flat PDC cutter, allowing cutting forces to be concentrated toward the working surface for efficient rock penetration.
OEM & Customization
We provide OEM and ODM services for PDC Parabolic Cutters according to customer requirements.
Customization options include:
· Cutter diameter
· Total height
· Diamond height
· Radius
· Parabolic geometry
· Diamond layer specifications
· Carbide substrate specifications
· Surface finishing
· Custom packagin
Contact us with your required dimensions and application for a customized PDC cutting solution.
