16mm PC1623 PDC Parabolic Cutter | Polycrystalline Diamond Compact Cutter for Oil & Gas Drilling
Diameter: 14.36 mm
Height: 19.4 mm
Diamond layer thickness: 6.52 mm
Quality Certification: ISO 9001
Request a quote for detailed information (MOQ, price, delivery)
Share:
16mm PC1623 PDC Parabolic Cutter | Polycrystalline Diamond Compact Cutter for Oil & Gas Drilling :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: PC1623
· Product Type: PDC Parabolic Cutter
· Tooth Shape: Parabolic
· Diameter (mm): 16.15
· Total Height (mm): 23.0
· Diamond Height (mm): 6.63
· Manufacturing Process: HPHT Sintering
· Substrate: Tungsten Carbide
· Application: The PC1623 PDC Parabolic Cutter is suitable for:
- Oil and gas drilling
- PDC drill bits
- Oil drilling tools
- Directional drilling tools
- Downhole drilling applications
- Formation cutting
- Rock drilling tools
Product Description

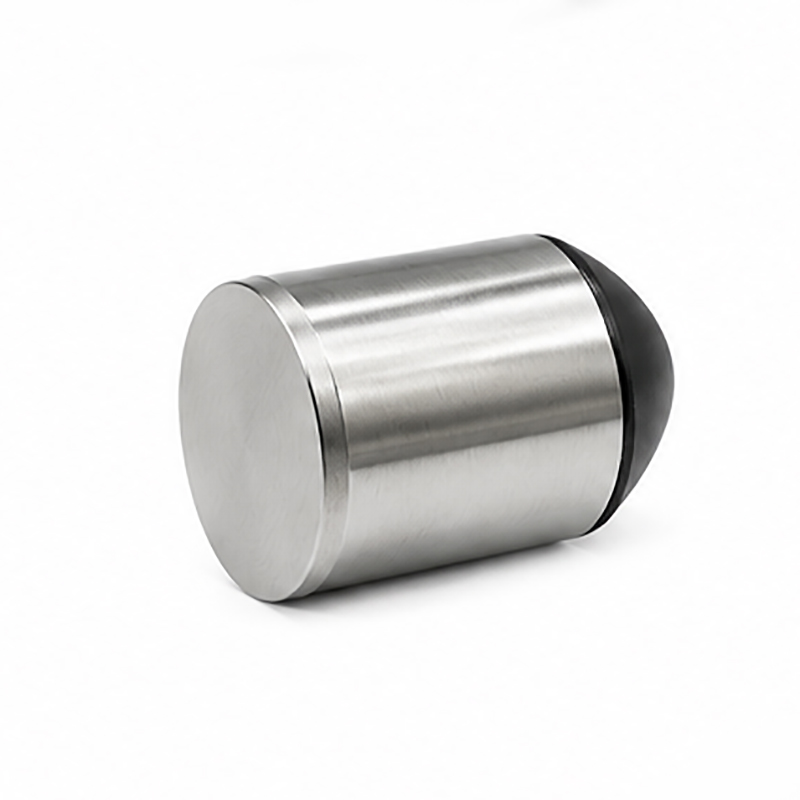

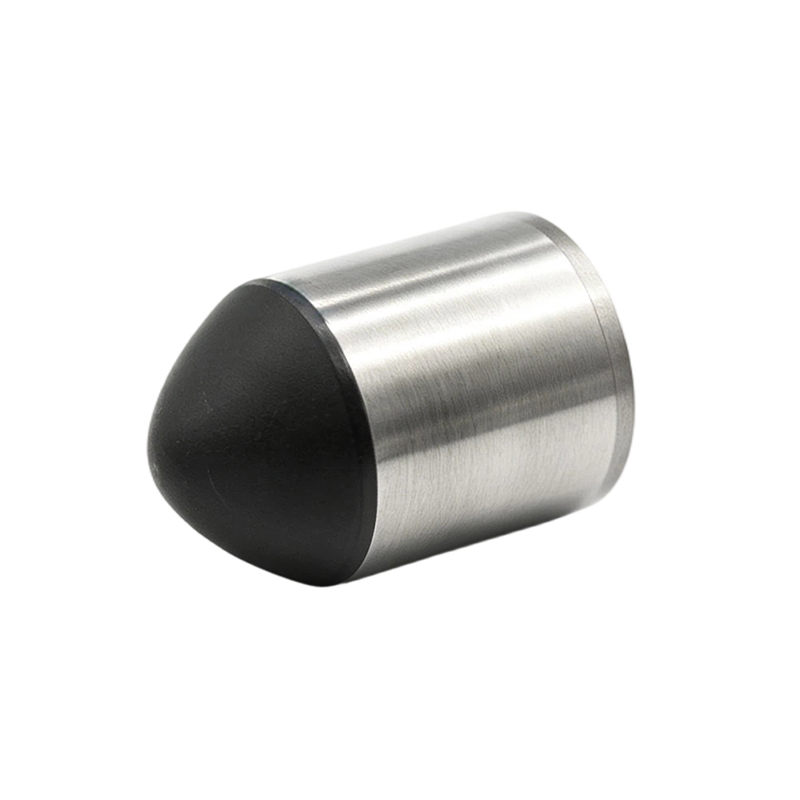

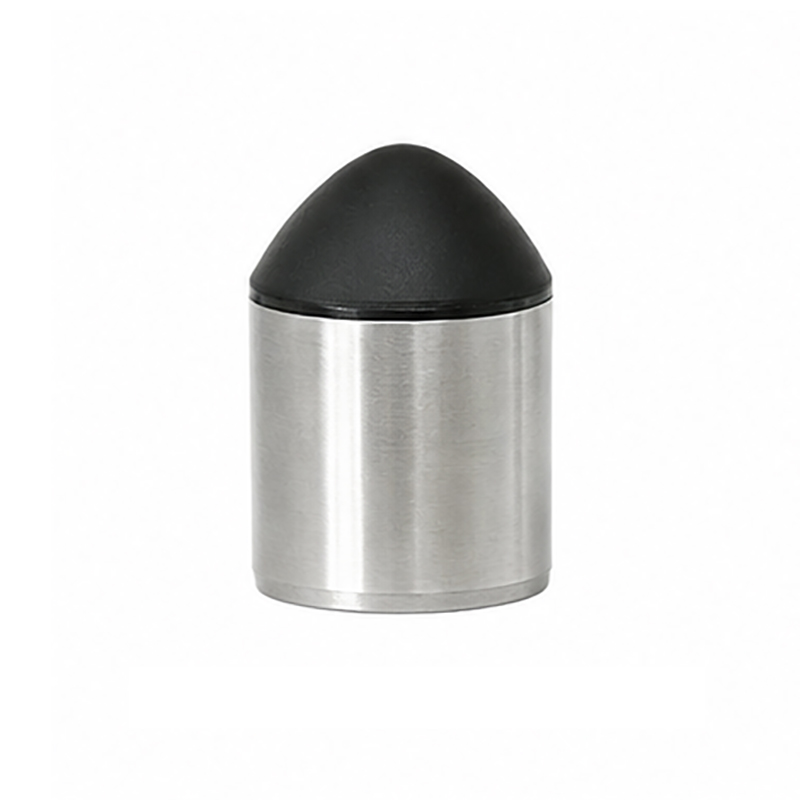

The PC1623 PDC Parabolic Cutter is a 16.15 mm shaped PDC cutting element with a 23.0 mm total height and 6.63 mm diamond height. Its large parabolic profile is designed for efficient formation engagement, durable cutting, and stable performance in oil drilling applications.
PC1623 PDC Parabolic Cutter for Oil & Gas Drilling
The PC1623 PDC Parabolic Cutter is a large-format shaped PDC cutting element designed for oil and gas drilling tools that require a substantial cutter structure and reliable formation engagement.
With a 16.15 mm diameter and 23.0 mm total height, the PC1623 provides a larger overall configuration for PDC bit designs using larger parabolic cutting elements. Its geometry is suited to applications where cutter size, working profile, and structural support need to be balanced within the bit design.
The 6.63 mm diamond height provides a substantial PDC working section for contact with the formation. The curved parabolic surface allows the cutter to engage the rock through a shaped cutting profile rather than a conventional flat face.
The PC1623 is constructed with a polycrystalline diamond cutting layer and tungsten carbide substrate, combining the cutting and wear properties of PDC diamond with the mechanical support of carbide.
PC series
The PC series PDC Parabolic Cutters are available in various dimensions to meet different bit designs and rock cutting requirements. Standard models are listed below.
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) | Radius |
PC0605 | 6.42 | 5.8 | 1.41 | / |
PC0807 | 8.01 | 7.1 | 2.14 | / |
PC1112 | 11.18 | 12.3 | 4.02 | / |
PC1419 | 14.36 | 19.4 | 6.52 | / |
PC1623 | 16.15 | 23.0 | 6.63 | / |
PC1823 | 18.15 | 22.9 | 5.90 | / |
PC1928 | 19.11 | 28.3 | 7.23 | / |
PC2028 | 20.00 | 28.0 | 7.64 | / |
Note: Custom heights and chamfer angles are available for OEM orders. | ||||
Key Features
- 16.15 mm cutter diameter
- 23.0 mm total height
- 6.63 mm diamond height
- Parabolic PDC cutting profile
- Large-format cutting geometry
- Polycrystalline diamond cutting layer
- High-strength tungsten carbide substrate
- Excellent wear resistance
- Efficient formation engagement
- Stable cutting performance
- Suitable for oil drilling applications
Performance Advantages
Large Cutter Configuration - The 16.15 mm diameter gives the PC1623 a substantial cutting footprint for PDC bit designs that use larger parabolic elements. Its dimensions provide designers with a larger shaped cutter option within the PC series.
Substantial Diamond Working Section - With a 6.63 mm diamond height, the PC1623 provides a deep diamond cutting section for continuous interaction with the formation during drilling.
Controlled Formation Engagement - The parabolic working surface creates a gradual, curved contact profile with the formation. This geometry helps maintain controlled cutting engagement as the cutter interacts with the rock.
Reliable Structural Support - The PDC diamond layer is integrated with a tungsten carbide substrate to create a composite cutter structure capable of supporting the working diamond section during drilling operations.
PDC Diamond Cutting Technology
The PC1623 uses a shaped parabolic PDC profile rather than the flat face found on conventional cylindrical PDC cutters.
This curved geometry provides an alternative cutting configuration for PDC drill bit designers. The combination of the 16.15 mm diameter, 23.0 mm total height, and 6.63 mm diamond height creates a substantial parabolic cutting element for oil drilling tools.
The PDC diamond layer provides the primary cutting surface, while the tungsten carbide substrate supports the cutter and its integration into the drilling tool.
OEM & Customization
We provide OEM and ODM services for PDC Parabolic Cutters according to specific drill bit designs and application requirements.
Customization options include:
· Cutter diameter
· Total height
· Diamond height
· Parabolic profile
· Diamond specifications
· Tungsten carbide substrate specifications
· Surface finishing
· Custom packaging
Customers can provide their cutter drawings, dimensions, or drill bit requirements for customized PDC cutting solutions.
