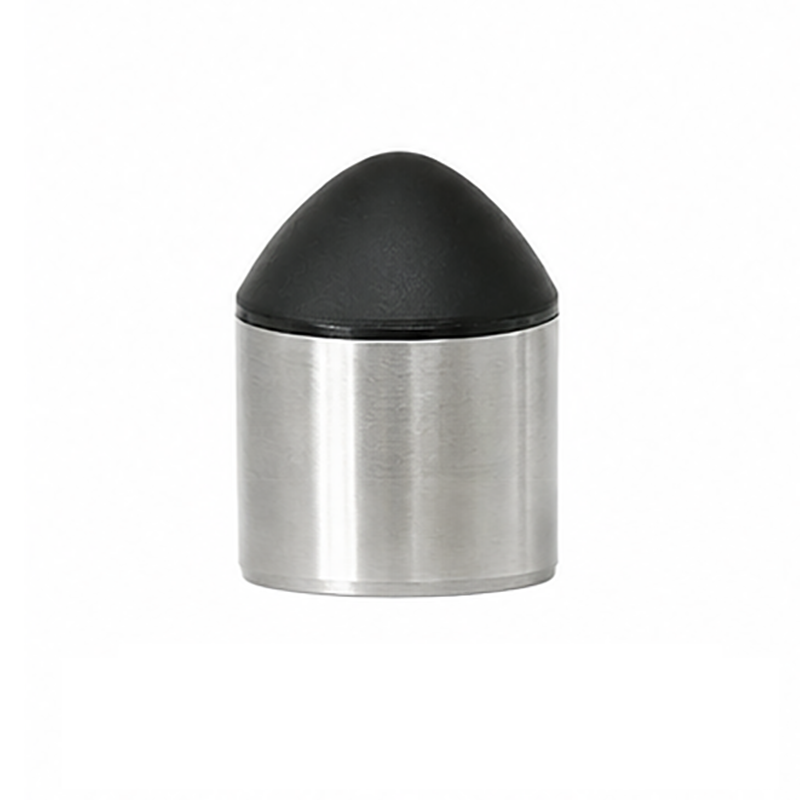

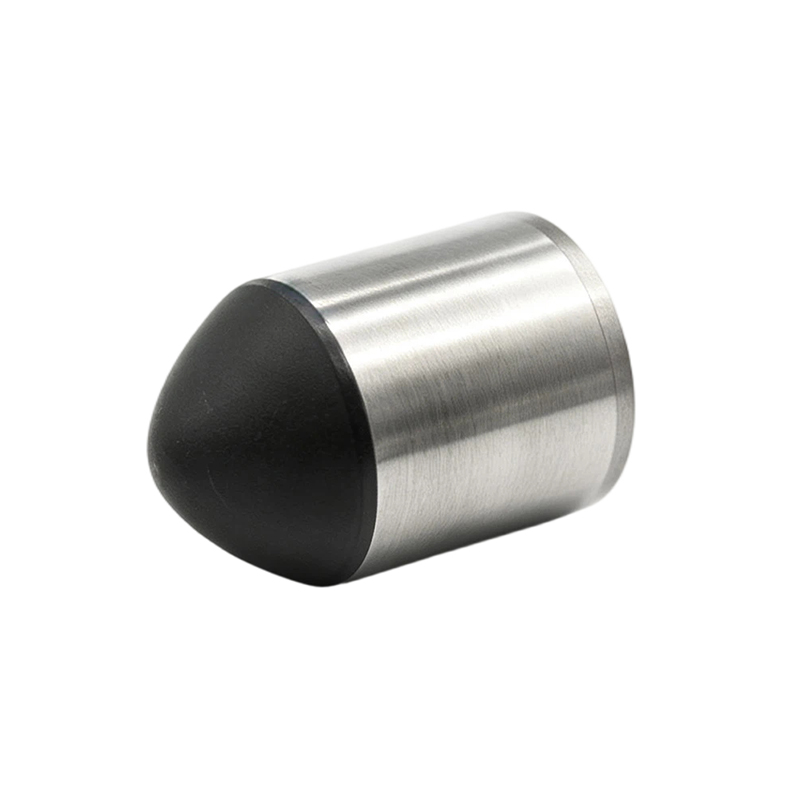

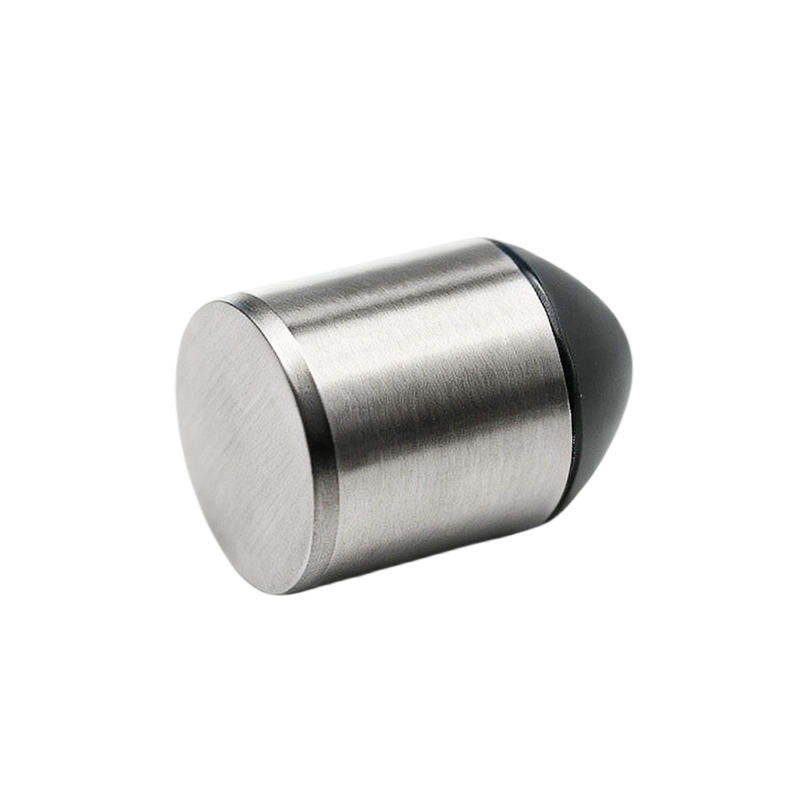

14mm PC1419 PDC Parabolic Cutter | Polycrystalline Diamond Compact Cutter for Oil & Gas Drilling
Diameter: 14.36 mm
Height: 19.4 mm
Diamond layer thickness: 6.52 mm
Quality Certification: ISO 9001
Request a quote for detailed information (MOQ, price, delivery)
Share:
14mm PC1419 PDC Parabolic Cutter | Polycrystalline Diamond Compact Cutter for Oil & Gas Drilling :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: PC1419
· Product Type: PDC Parabolic Cutter
· Tooth Shape: Parabolic
· Diameter (mm): 14.36
· Total Height (mm): 19.4
· Diamond Height (mm): 6.52
· Manufacturing Process: HPHT Sintering
· Substrate: Tungsten Carbide
· Application: The PC1419 PDC Parabolic Cutter is suitable for:
- Oil and gas drilling
- PDC drill bits
- Directional drilling tools
- Downhole drilling tools
- Geological drilling
- Formation cutting
- Rock drilling applications
Product Description
The PC1419 PDC Parabolic Cutter is a 14.36 mm shaped PDC cutting element with a 19.4 mm total height and 6.52 mm diamond height. Its larger parabolic profile is designed for stable formation engagement, efficient rock removal, and durable performance in oil drilling applications.
PC1419 PDC Parabolic Cutter for Oil & Gas Drilling
The PC1419 PDC Parabolic Cutter is a large-size parabolic PDC cutting element developed for oil and gas drilling tools that require a substantial working surface and reliable cutting durability.
Compared with smaller PC series cutters, the PC1419 provides a larger 14.36 mm diameter and 19.4 mm total height, making it suitable for drill bit designs that use larger shaped PDC cutting elements.
Its parabolic working profile creates a curved cutting surface that engages the formation progressively. This geometry helps distribute the cutting interaction across the shaped profile while supporting efficient formation removal during drilling.
The PC1419 also features a 6.52 mm diamond height, providing a deep PDC diamond section for continued contact with the formation. The combination of the shaped diamond layer and tungsten carbide substrate creates a robust composite cutting element for demanding drilling conditions.
PC series
The PC series PDC Parabolic Cutters are available in various dimensions to meet different bit designs and rock cutting requirements. Standard models are listed below.
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) | Radius |
PC0605 | 6.42 | 5.8 | 1.41 | / |
PC0807 | 8.01 | 7.1 | 2.14 | / |
PC1112 | 11.18 | 12.3 | 4.02 | / |
PC1419 | 14.36 | 19.4 | 6.52 | / |
PC1623 | 16.15 | 23.0 | 6.63 | / |
PC1823 | 18.15 | 22.9 | 5.90 | / |
PC1928 | 19.11 | 28.3 | 7.23 | / |
PC2028 | 20.00 | 28.0 | 7.64 | / |
Note: Custom heights and chamfer angles are available for OEM orders. | ||||
Key Features
- 14.36 mm cutter diameter
- 19.4 mm total height
- 6.52 mm diamond height
- Parabolic PDC cutting profile
- Large working cutter geometry
- Polycrystalline diamond cutting layer
- Tungsten carbide substrate
- High wear resistance
- Efficient formation cutting
- Stable cutter engagement
- Designed for oil drilling applications
Performance Advantages
Large Working Profile - The 14.36 mm diameter gives the PC1419 a larger working profile than the smaller cutters in the PC series. This makes it suitable for PDC bit designs requiring larger parabolic cutting elements.
Deep Diamond Layer - With a 6.52 mm diamond height, the PC1419 provides a substantial diamond working section for repeated formation contact and long-term cutting performance.
Progressive Formation Engagement - The parabolic geometry allows the cutting surface to interact with the formation through a curved profile rather than a flat face. This supports controlled cutter engagement and efficient rock removal.
Durable Composite Construction - The cutter combines a polycrystalline diamond layer with a tungsten carbide substrate. The diamond section provides the primary cutting and wear-resistant function, while the carbide body supports the overall cutter structure.
PDC Diamond Cutting Technology
The PC1419 uses a parabolic PDC geometry specifically designed for shaped cutting applications.
Its working surface is formed by a curved PDC diamond profile rather than the conventional flat face found on standard flat PDC cutters. This gives drill bit designers another option when optimizing cutter placement, cutting structure, and formation engagement.
The 14.36 mm diameter and 6.52 mm diamond height provide a substantial cutting element configuration for oil drilling tools and PDC drill bit designs.
OEM & Customization
We provide OEM and ODM services for PDC Parabolic Cutters according to specific drill bit designs and application requirements.
Customization options include:
· Cutter diameter
· Total height
· Diamond height
· Parabolic profile
· Diamond specifications
· Tungsten carbide substrate specifications
· Surface finishing
· Custom packaging
Send us your drill bit design or required cutter dimensions for a suitable PDC cutting solution.
