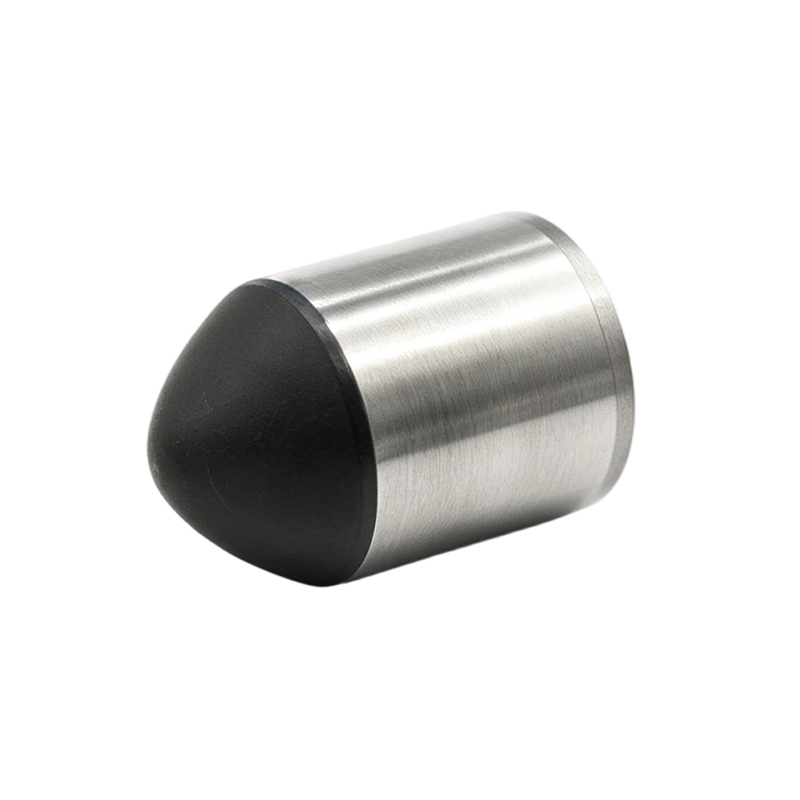

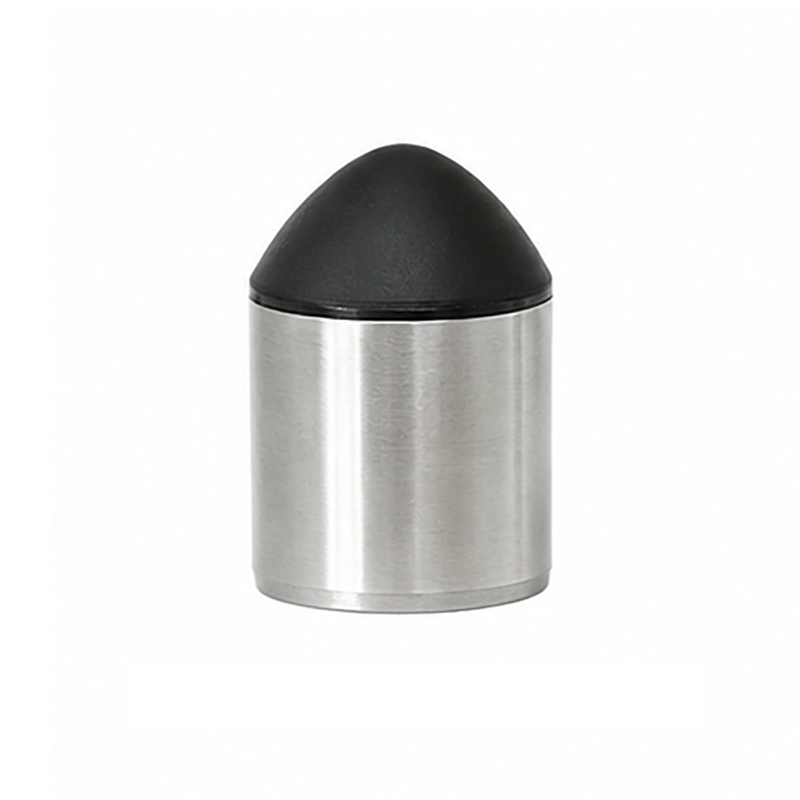

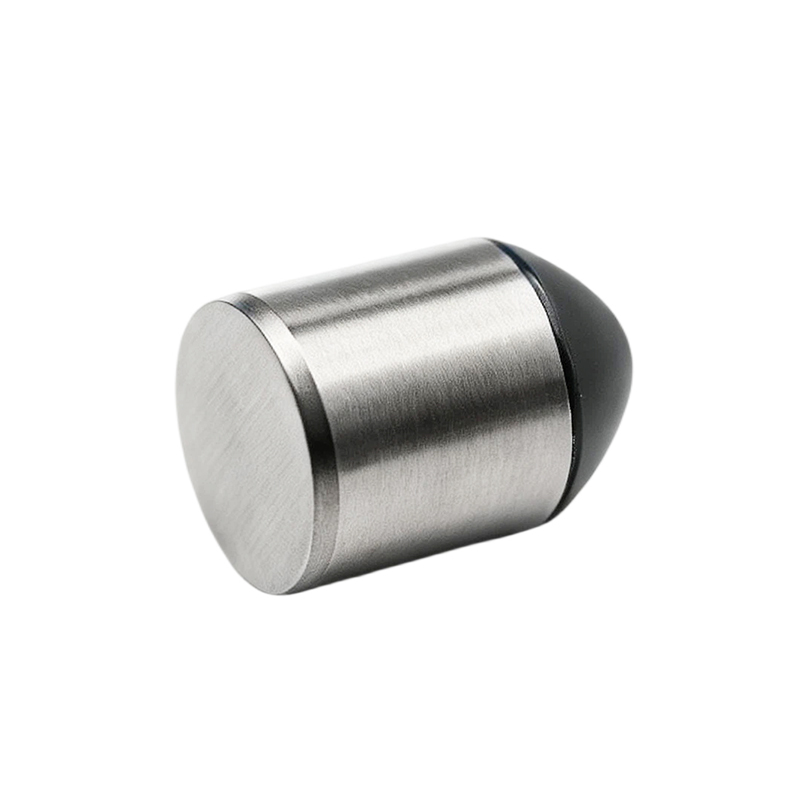

18mm PC1823 PDC Parabolic Cutter | Polycrystalline Diamond Compact Cutter for Oil & Gas Drilling
Diameter: 18.15 mm
Height: 22.9 mm
Diamond layer thickness: 6.63 mm
Quality Certification: ISO 9001
Request a quote for detailed information (MOQ, price, delivery)
Share:
18mm PC1823 PDC Parabolic Cutter | Polycrystalline Diamond Compact Cutter for Oil & Gas Drilling :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: PC1823
· Product Type: PDC Parabolic Cutter
· Tooth Shape: Parabolic
· Diameter (mm): 18.15
· Total Height (mm): 22.9
· Diamond Height (mm): 5.9
· Manufacturing Process: HPHT Sintering
· Substrate: Tungsten Carbide
· Application: The PC1823 PDC Parabolic Cutter is suitable for:
- Oil and gas drilling
- PDC drill bits
- Oil drilling tools
- Directional drilling tools
- Downhole drilling applications
- Formation cutting
- Rock drilling tools
Product Description
The PC1823 PDC Parabolic Cutter is an 18.15 mm shaped PDC cutting element with a 22.9 mm total height and 5.90 mm diamond height. Its large curved cutting profile is designed for efficient formation engagement and dependable wear performance in oil drilling tools
PC1823 PDC Parabolic Cutter for Oil & Gas Drilling
The PC1823 PDC Parabolic Cutter is a large-diameter PDC cutting element developed for drilling tools that require a substantial parabolic working profile and reliable formation cutting performance.
Featuring an 18.15 mm diameter and 22.9 mm total height, the PC1823 provides a large cutter configuration for PDC bit designs. Its relatively broad working geometry allows the cutter to be incorporated into drilling structures where larger shaped PDC elements are required.
The cutter features a 5.90 mm diamond height, providing a substantial PDC diamond working section for formation contact. Its curved parabolic surface is designed to engage the rock through a shaped cutting profile, supporting controlled cutting action during drilling.
The PC1823 consists of a polycrystalline diamond cutting layer bonded to a tungsten carbide substrate. This composite construction combines the cutting and wear characteristics of PDC diamond with the structural support of carbide.
PC series
The PC series PDC Parabolic Cutters are available in various dimensions to meet different bit designs and rock cutting requirements. Standard models are listed below.
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) | Radius |
PC0605 | 6.42 | 5.8 | 1.41 | / |
PC0807 | 8.01 | 7.1 | 2.14 | / |
PC1112 | 11.18 | 12.3 | 4.02 | / |
PC1419 | 14.36 | 19.4 | 6.52 | / |
PC1623 | 16.15 | 23.0 | 6.63 | / |
PC1823 | 18.15 | 22.9 | 5.90 | / |
PC1928 | 19.11 | 28.3 | 7.23 | / |
PC2028 | 20.00 | 28.0 | 7.64 | / |
Note: Custom heights and chamfer angles are available for OEM orders. | ||||
Key Features
- 18.15 mm cutter diameter
- 22.9 mm total height
- 5.90 mm diamond height
- Large parabolic PDC profile
- Polycrystalline diamond cutting layer
- High-strength tungsten carbide substrate
- Efficient formation engagement
- Good wear resistance
- Stable cutting performance
- Durable composite construction
- Suitable for oil drilling applications
Performance Advantages
Large-Diameter Cutting Profile - The 18.15 mm diameter gives the PC1823 a large working configuration within the PC series. It is suitable for PDC bit structures designed around larger parabolic cutting elements.
Effective Formation Contact - The curved parabolic profile creates a shaped interface with the formation, helping the cutter maintain controlled contact while removing rock during drilling.
Substantial Diamond Working Section - The 5.90 mm diamond height provides a sizeable PDC working section for repeated formation contact and sustained cutting operations.
Reliable Composite Structure - The polycrystalline diamond layer is supported by a tungsten carbide substrate, providing the cutter with a combination of diamond cutting performance and carbide structural support.
PDC Diamond Cutting Technology
The PC1823 uses a shaped parabolic PDC cutting profile rather than a conventional flat cutting face.
The curved geometry gives drill bit designers an alternative cutter configuration for controlling formation engagement and cutter placement. Its large diameter and substantial overall dimensions make the PC1823 suitable for drilling tools designed around larger PDC cutting elements.
The PDC diamond layer provides the primary cutting surface, while the tungsten carbide substrate supports the diamond section and the overall cutter structure.
OEM & Customization
We provide OEM and ODM services for PDC Parabolic Cutters according to specific drill bit designs and application requirements.
Customization options include:
· Cutter diameter
· Total height
· Diamond height
· Parabolic profile
· Diamond specifications
· Tungsten carbide substrate specifications
· Surface finishing
· Custom packaging
Customers can provide their cutter drawings, dimensions, or drill bit requirements for customized PDC cutting solutions.
