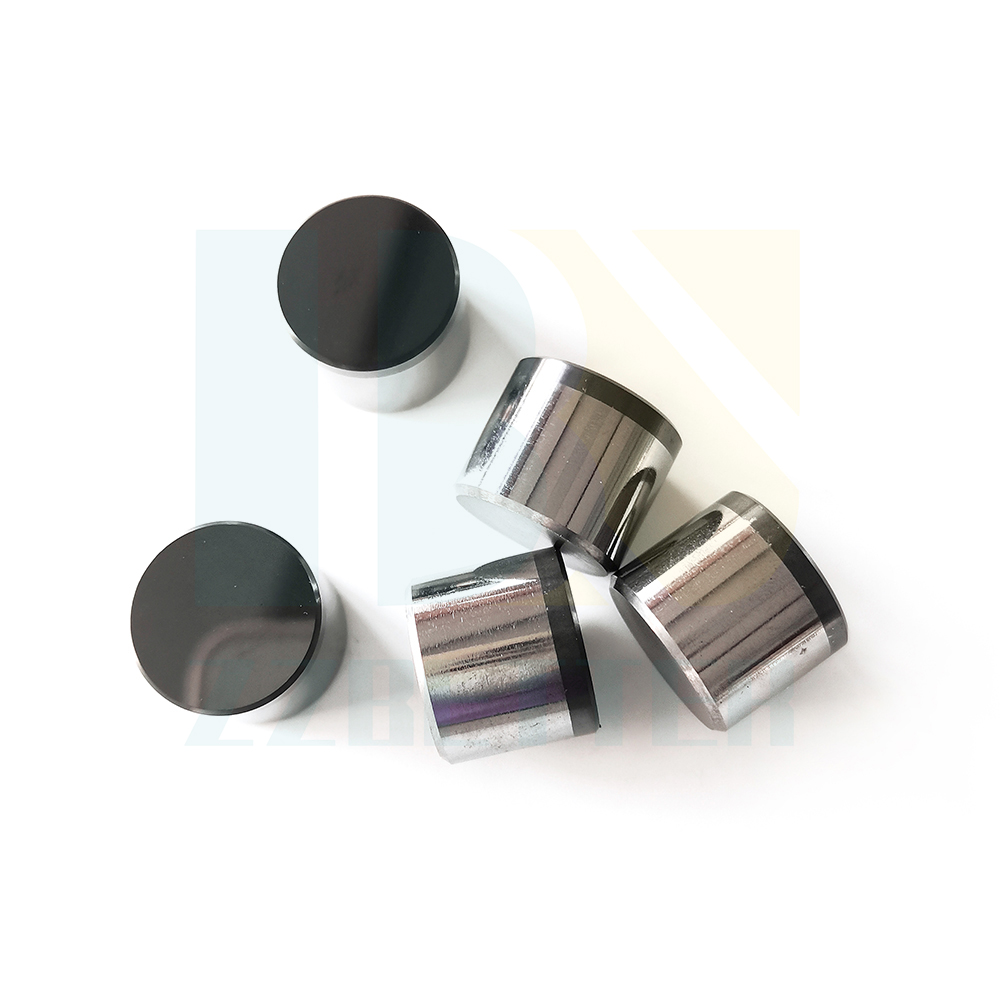

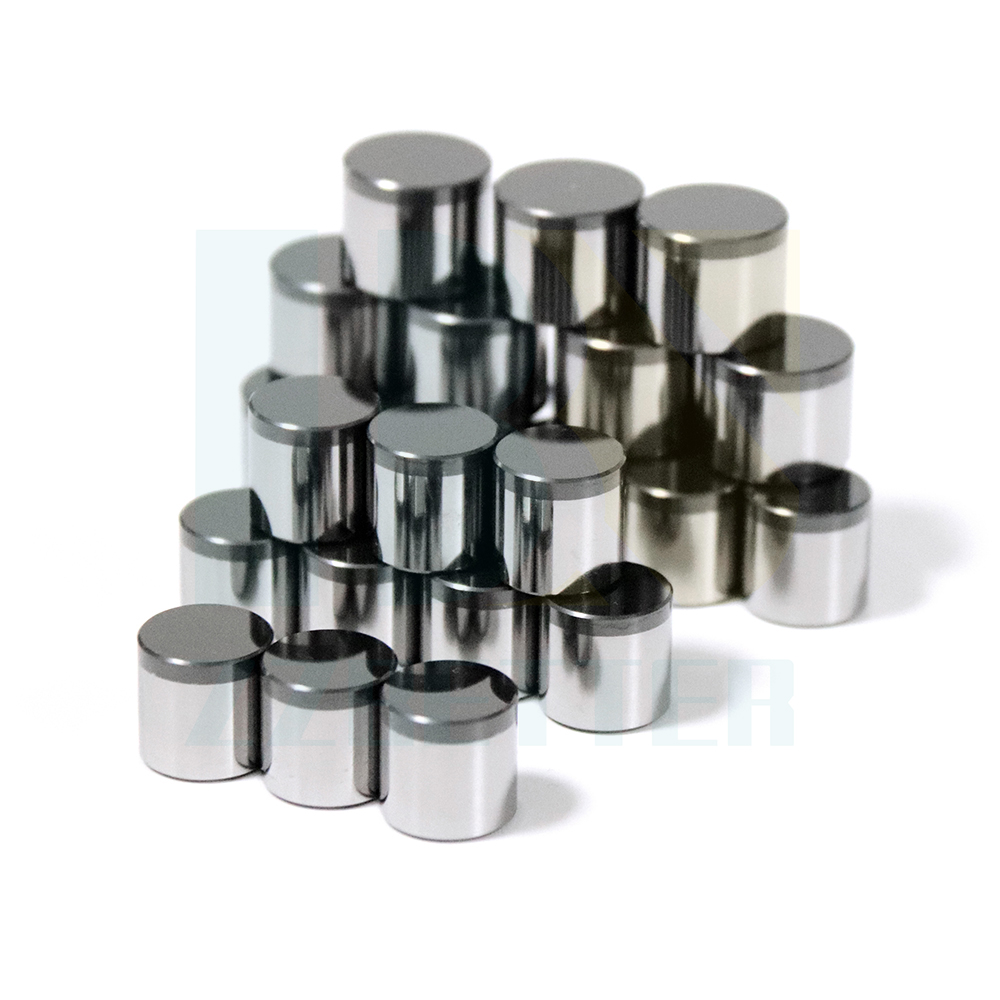

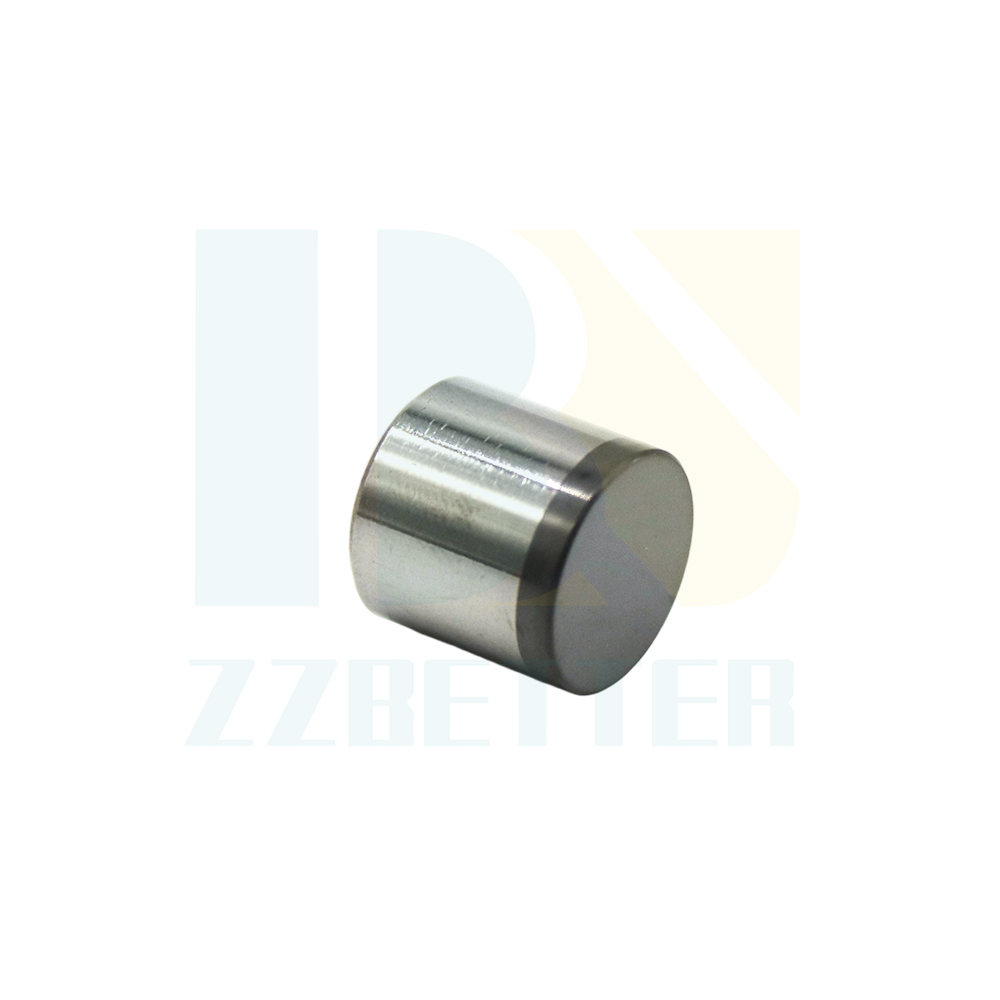

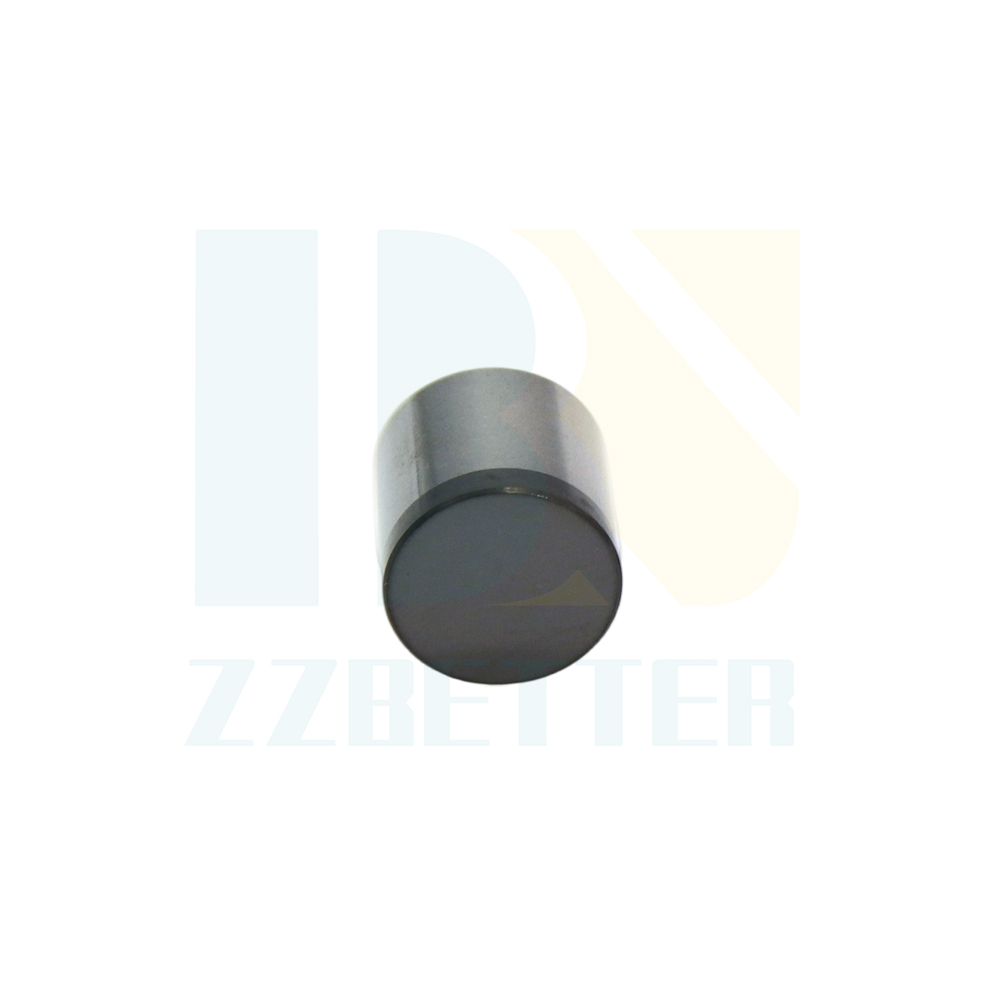

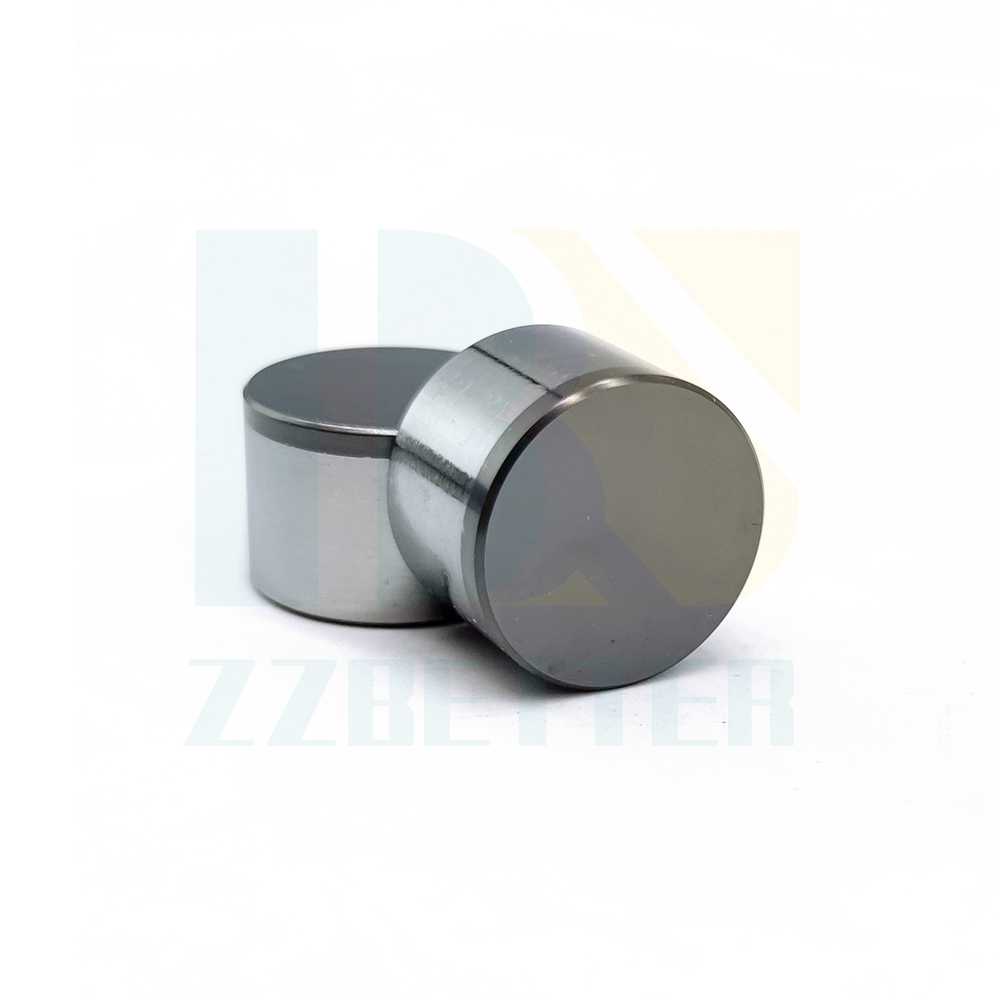

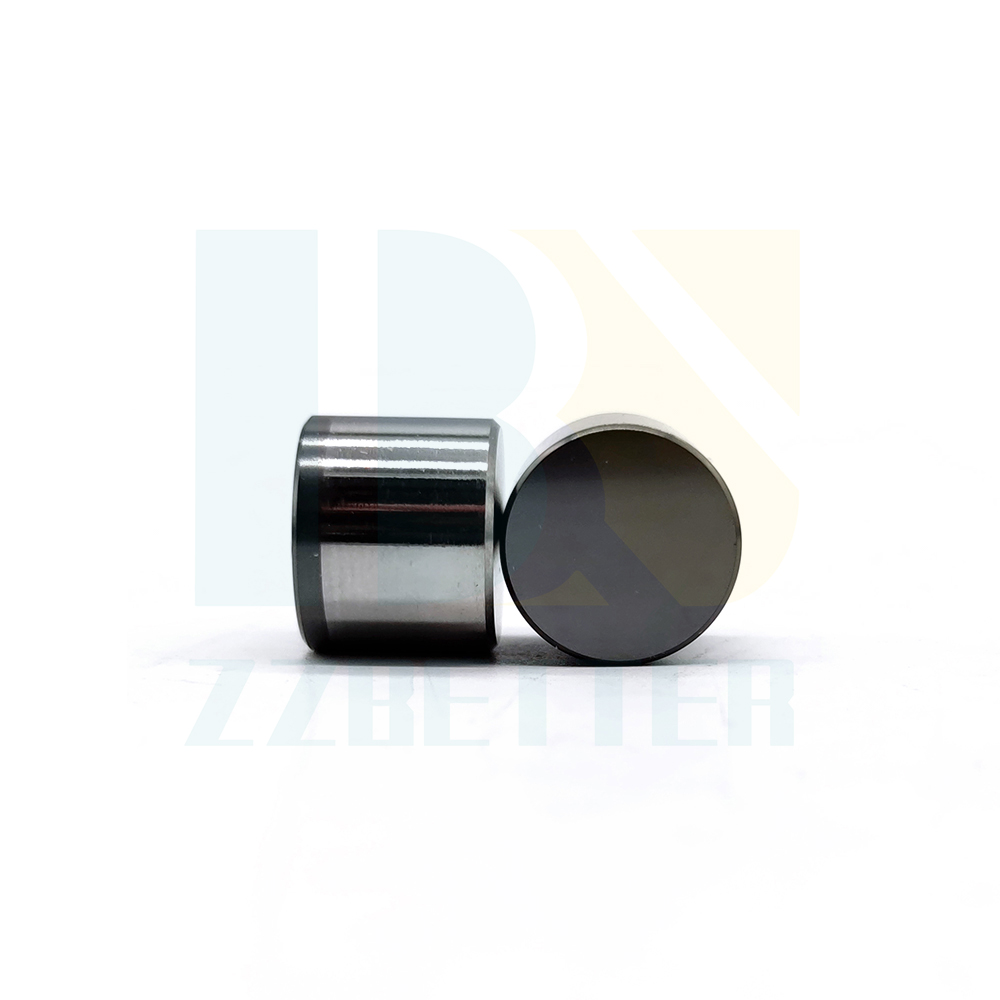

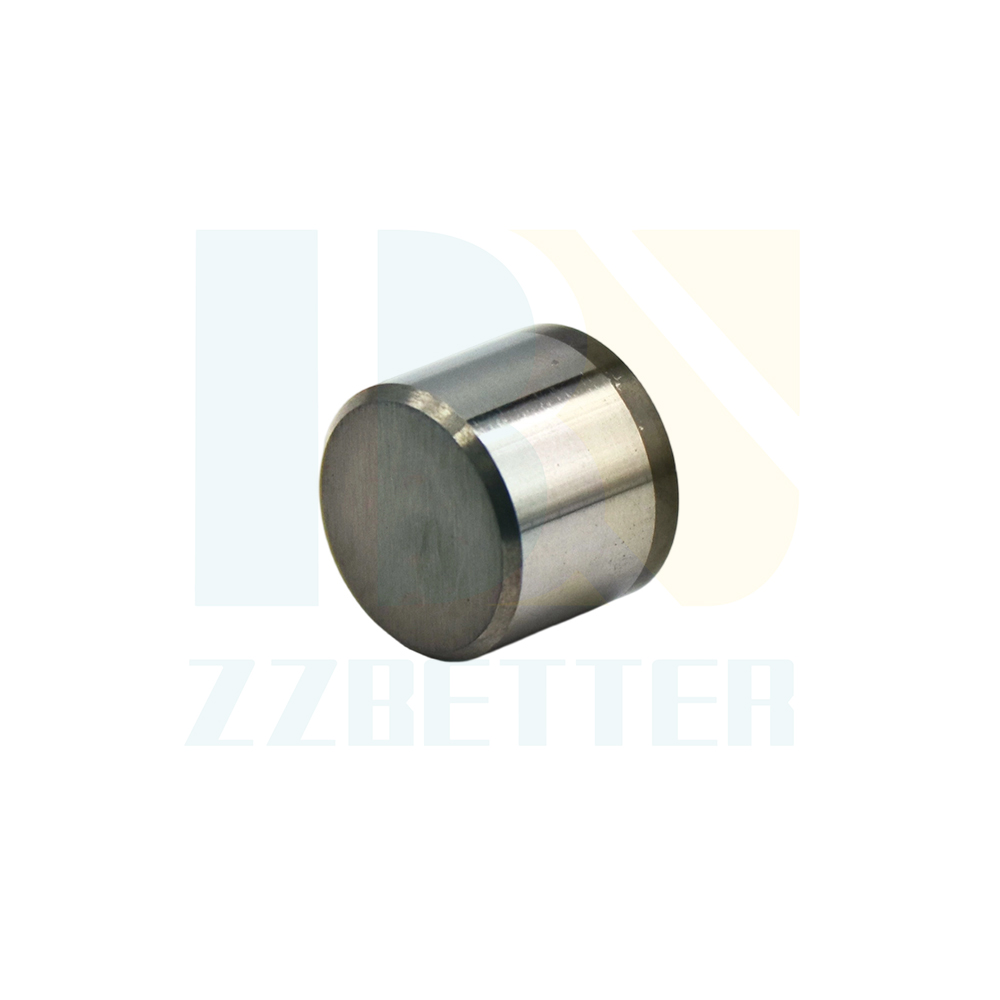

PDC Flat Cutter

Shape: Flat

Application: PDC bit

Advantages: Enhanced wear resistance, impact resistance, Superior formation adaptability

Drillbetter supplies PDC flat cutters for drilling tool manufacturers and industrial buyers.

Request a quote for detailed information (MOQ, price, delivery)

Share:

PDC Flat Cutter :

Drillbetter supplies PDC cutters, PDC drill bits, and customized PDC products for drilling tool manufacturers and industrial buyers.

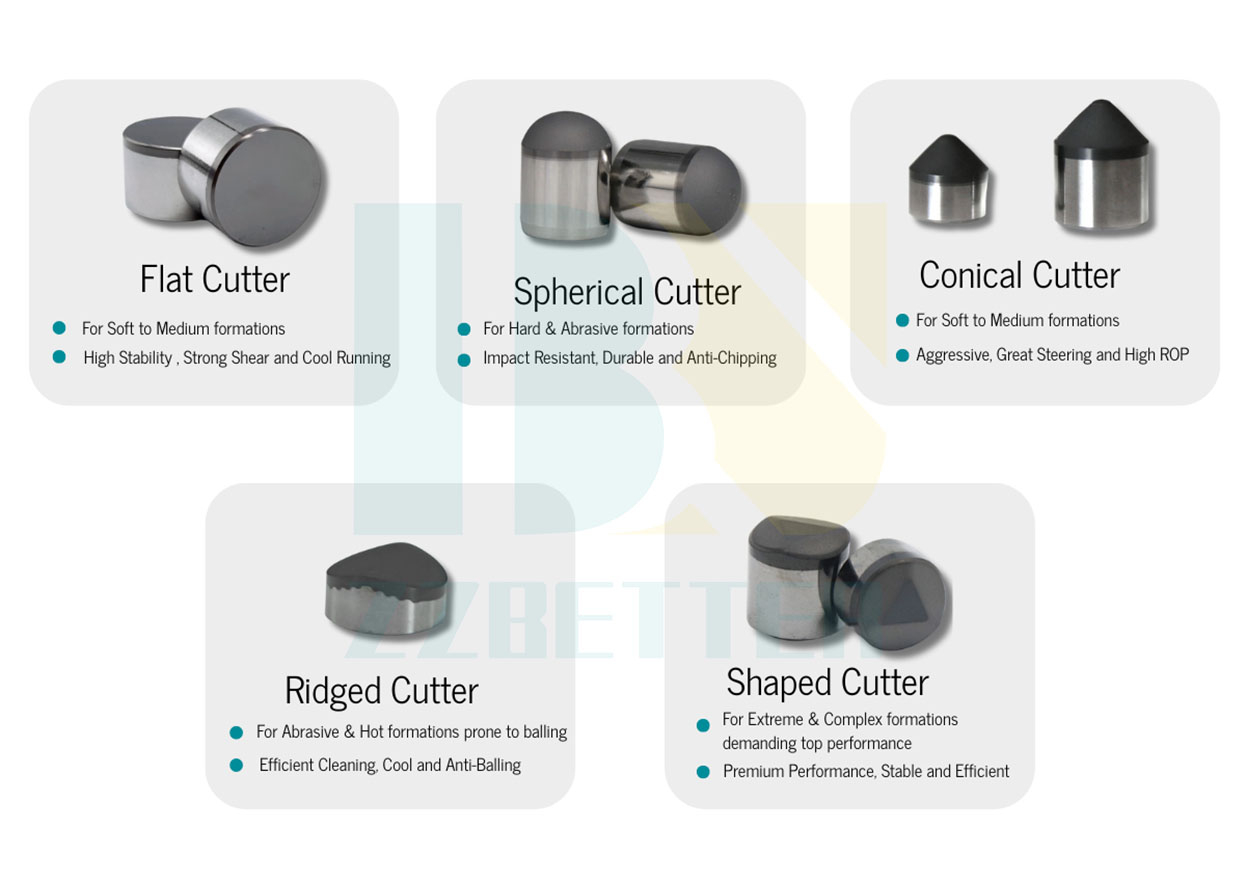

PDC compact cutters

PDC compact cutters

PDC flat cutters are cutting elements used in PDC drill bits for oil and gas drilling, geological exploration, and other drilling applications. They consist of a polycrystalline diamond layer bonded to a tungsten carbide substrate, combining a wear-resistant cutting surface with structural support.

Drillbetter offers PDC flat cutters in various sizes for different bit type and drilling requirements. Our flat cutter series covers diameters from 8 mm to 19 mm. When selecting cutters, consider formation characteristics, bit design, and operating conditions.

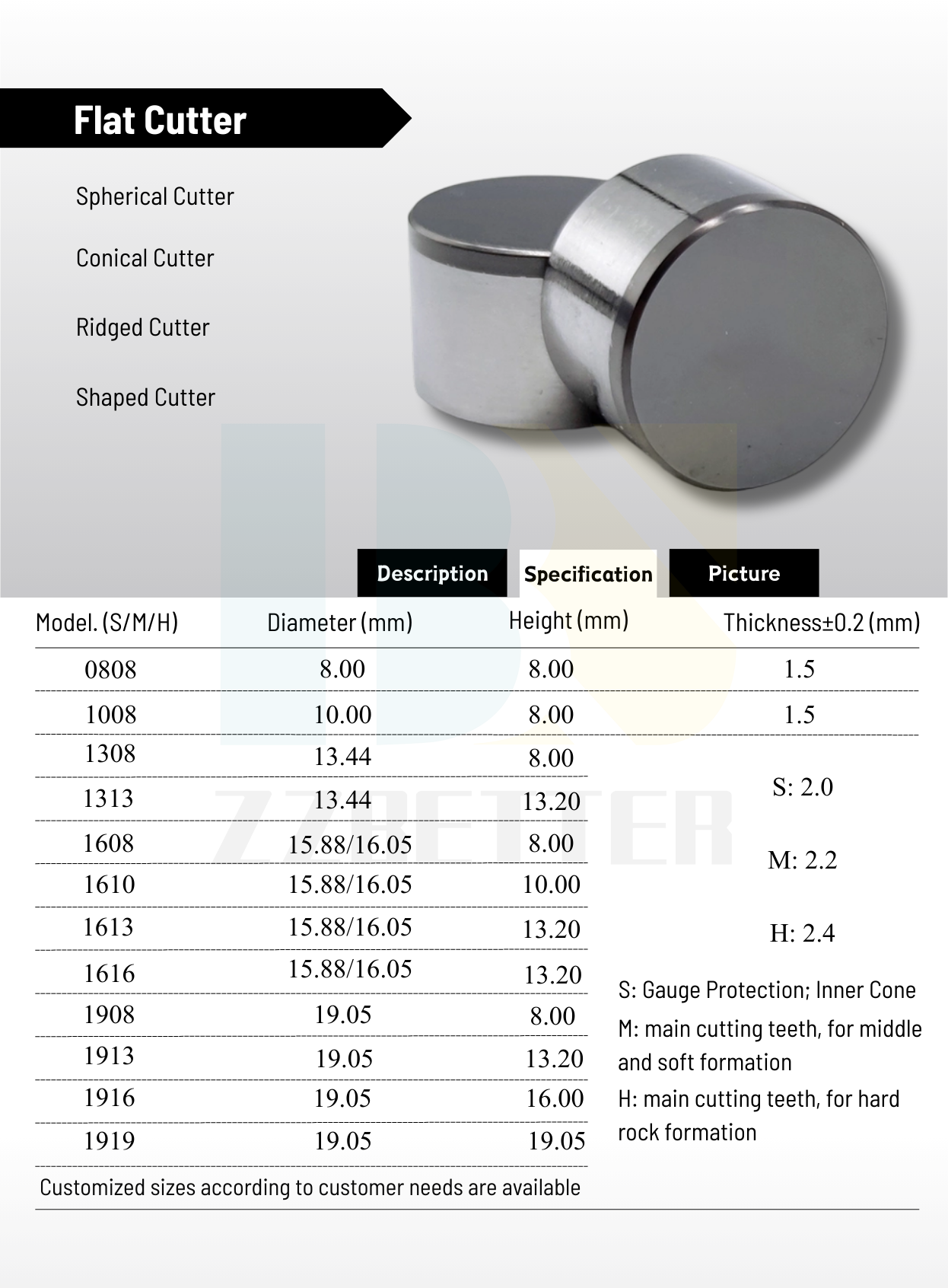

Specification of PDC Flat Cutters for Mining

Model No.

Diameter

(mm)

Height

(mm)

Thickness

(mm)

Chamfer

FC0808

8.00

8.0

1.5-1.8

0.3mm x 45°

FC0810

8.00

10.0

1.5-1.8

0.3mm x 45°

FC1008

10.00

8.0

1.5-1.8

0.3mm x 45°

FC1010

10.00

10.0

1.5-1.8

0.3mm x 45°

FC1308

13.40

8.0

1.5-1.8

0.3mm x 45°

FC1313

13.40

13.0

1.5-1.8

0.3mm x 45°

FC1608

16.00

8.0

1.5-1.8

0.3mm x 45°

FC1610

16.00

10.0

1.5-1.8

0.3mm x 45°

FC1613

16.00

13.0

1.5-1.8

0.3mm x 45°

FC1616

16.00

16.0

1.5-1.8

0.3mm x 45°

Specification of PDC Flat Cutters for Oil and Gas Drilling

Model No.

Diameter

(mm)

Height

(mm)

Thickness

(mm)

Chamfer

FC0808

8.00

8.0

1.8-2.5

0.3mm x 45°

FC1008

10.00

8.0

1.8-2.5

0.3mm x 45°

FC1308

13.00

8.0

1.8-2.5

0.3mm x 45°

FC1313

13.00

13.0

1.8-2.5

0.3mm x 45°

FC1608

16.00

8.0

1.8-2.5

0.3mm x 45°

FC1613

16.00

13.0

1.8-2.5

0.3mm x 45°

FC1616

16.00

16.0

1.8-2.5

0.3mm x 45°

FC1913

19.00

13.0

1.8-2.5

0.3mm x 45°

FC1916

19.00

16.0

1.8-2.5

0.3mm x 45°

FC1919

19.00

19.0

1.8-2.5

0.3mm x 45°

FC1925

19.00

25.0

1.8-2.5

0.3mm x 45°

Customized sizes according to customer needs are available

The flat cutter series covers a wide range of sizes, from diameter 8mm to 19mm, and provides outstanding overall performance and broad industrial applications. Drill Better team provides professional application analysis and cutter selection recommendations based on formation adaptability needs.

PDC compact cutters

Features:

-    Polycrystalline diamond cutting layer with a tungsten carbide substrate.

-    Flat cutting geometry suitable for shearing rock in compatible formations.

-    Wear-resistant cutting surface for drilling applications.

-    Available in different sizes to meet bit type requirements.

Application:

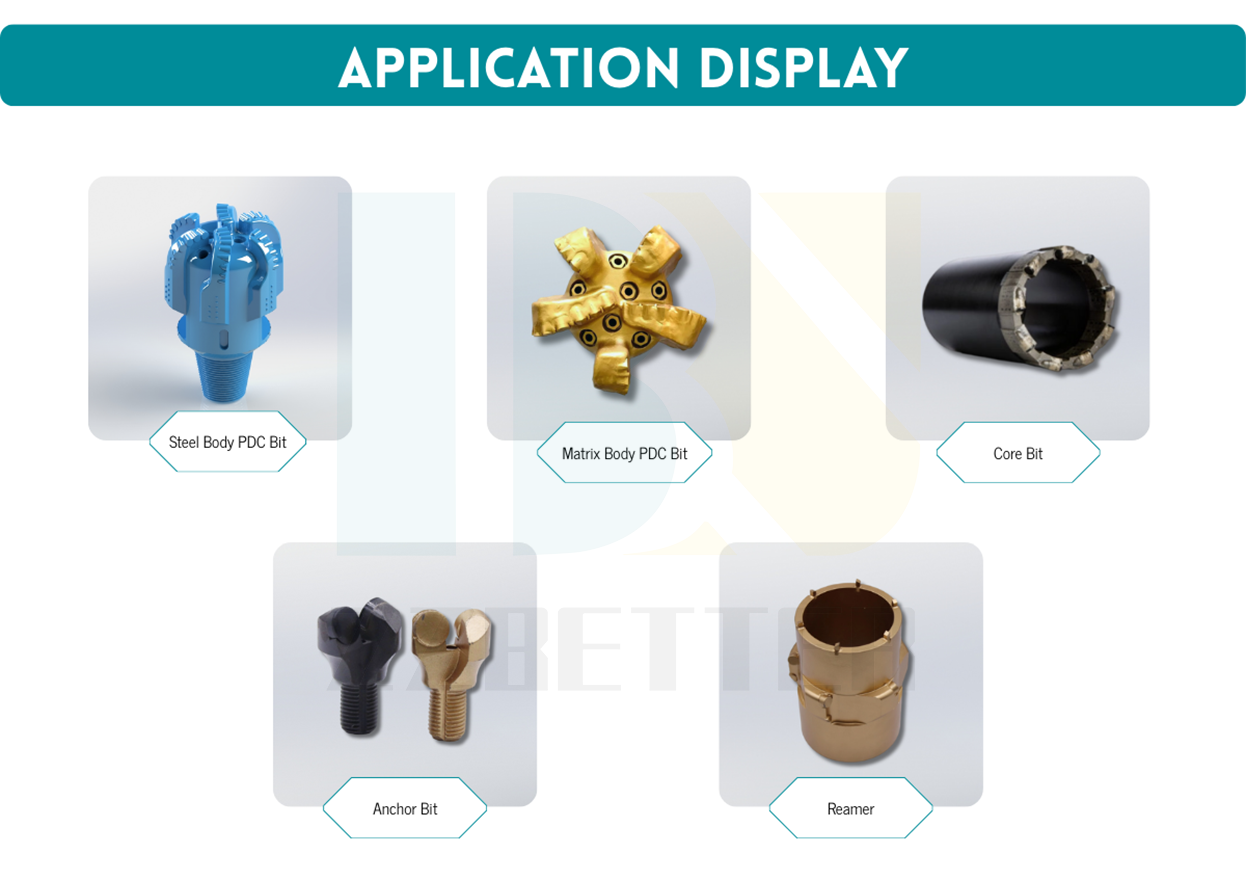

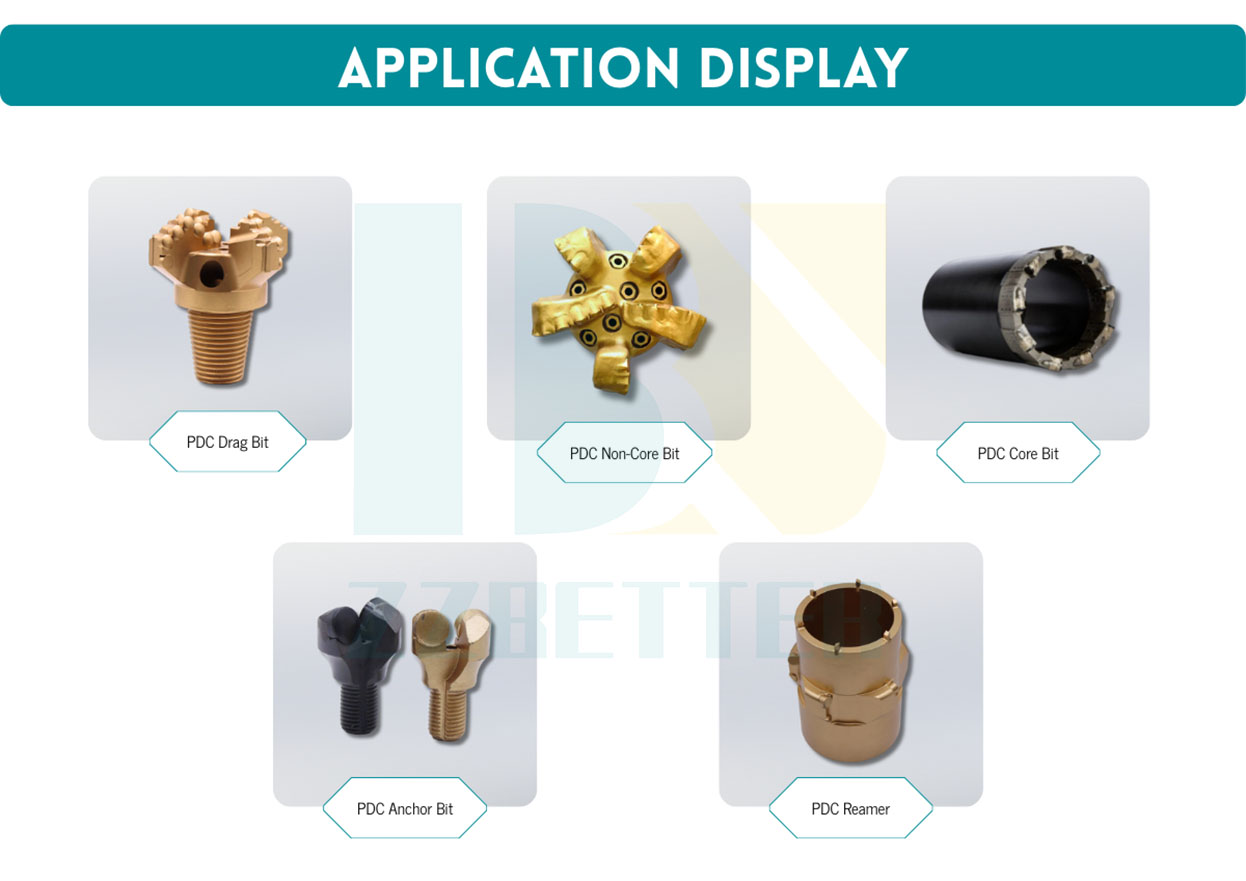

PDC flat cutters are commonly used in PDC drill bits for oil and gas drilling, geological exploration, and other rock drilling applications. Suitable cutter specifications depend on formation conditions, bit type, and drilling parameters.

Working Principle:

PDC flat cutters remove rock primarily through shearing. When matched with suitable drilling conditions and bit type, they can support efficient rock cutting and wear resistance.

PDC compact cutters

Our uniquely designed cutting element geometry enhances cutting efficiency and the durability of PDC bits. This enables our PDC bits to drill at a higher Rate of Penetration (ROP) and achieve greater footage, thereby saving drilling time and costs.

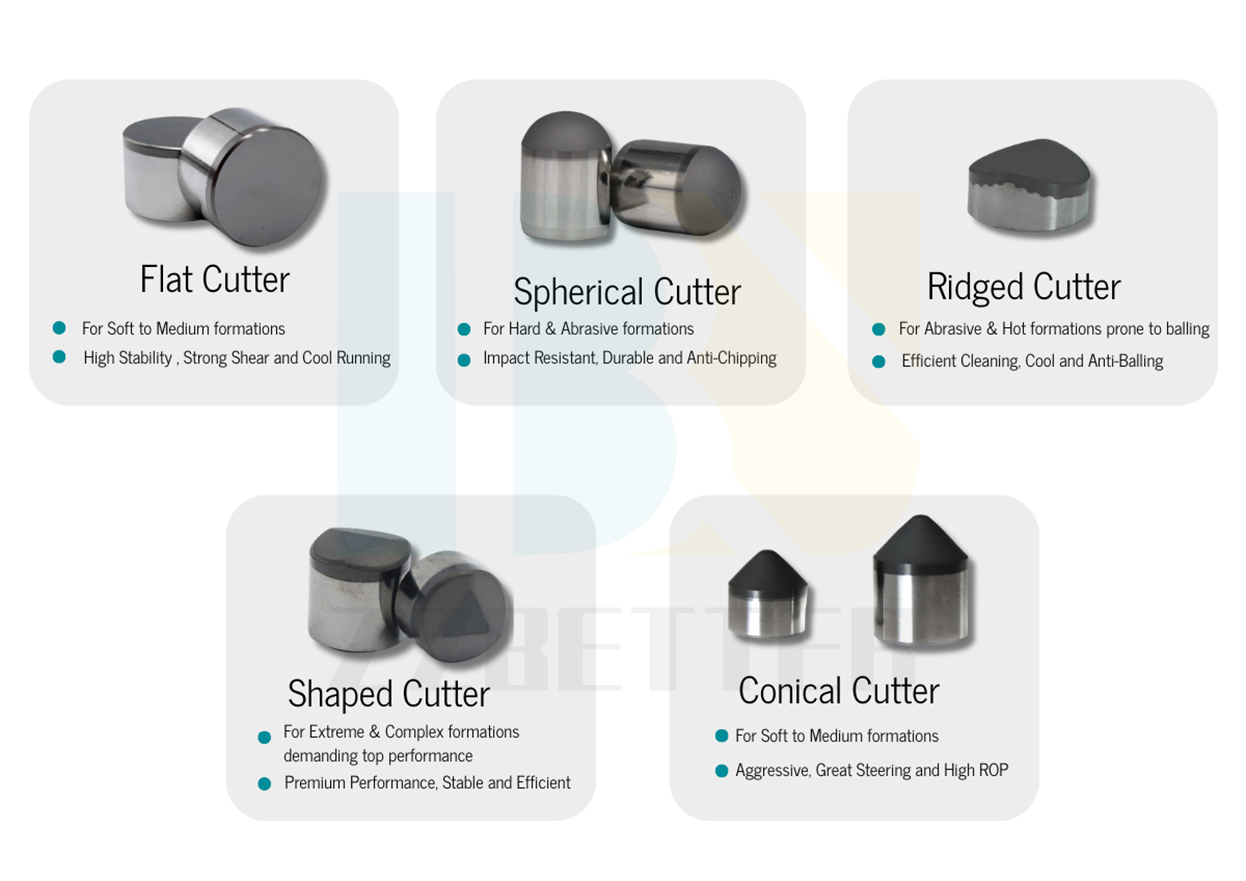

PDC compact cutters

PDC compact cutters

Why Choose Drillbetter for PDC Flat Cutters?

Drillbetter supplies PDC flat cutters for drilling tool manufacturers and industrial buyers.

1. PDC cutter Selection

We help customers review cutter dimensions and application requirements to identify suitable PDC flat cutter options for their drilling tools.

2. Different Size Requirements

Our flat cutter series includes different diameter options for PDC drill bit types. Customers can provide their required dimensions and specifications for confirmation.

3. Purchasing Support

We assist customers with product information, specification inquiries, and quotations for PDC cutter procurement.


Contact Drillbetter with your required cutter dimensions, quantities, and application details to find suitable options and pricing.


DrillBetter: Your Leading PDC Cutter Manufacturer & Supplier

You can get high-quality PDC cutters to meet different applications.
You can choose from our collection of PDC cutters made from different materials.
You will enjoy the full benefits and advantages of using our primary products.
You will experience the cutting-edge technology that we are using to craft our PDC cutters.
You get a guarantee that your purchase has no defects or flaws.
You are doing business with the leading PDC cutters supplier in China.
DrillBetter can handle large orders to help you grow your business.
Send your request or inquiry if you want a customization of PDC cutters.
Using the right PDC cutters can help you do the work more easily!

-----------------------------------------------------------------------------------------------------------------------------
