PDC Conical Cutter

Shape: Conical

Application: PDC drill bit, DTH drill bits

Advantages: Enhanced wear resistance, impact resistance, Superior formation adaptability

Request a quote for detailed information (MOQ, price, delivery)

Share:

PDC Conical Cutter :

Drillbetter supplies PDC cutters, PDC drill bits, and customized PDC products for drilling tool manufacturers and industrial buyers.

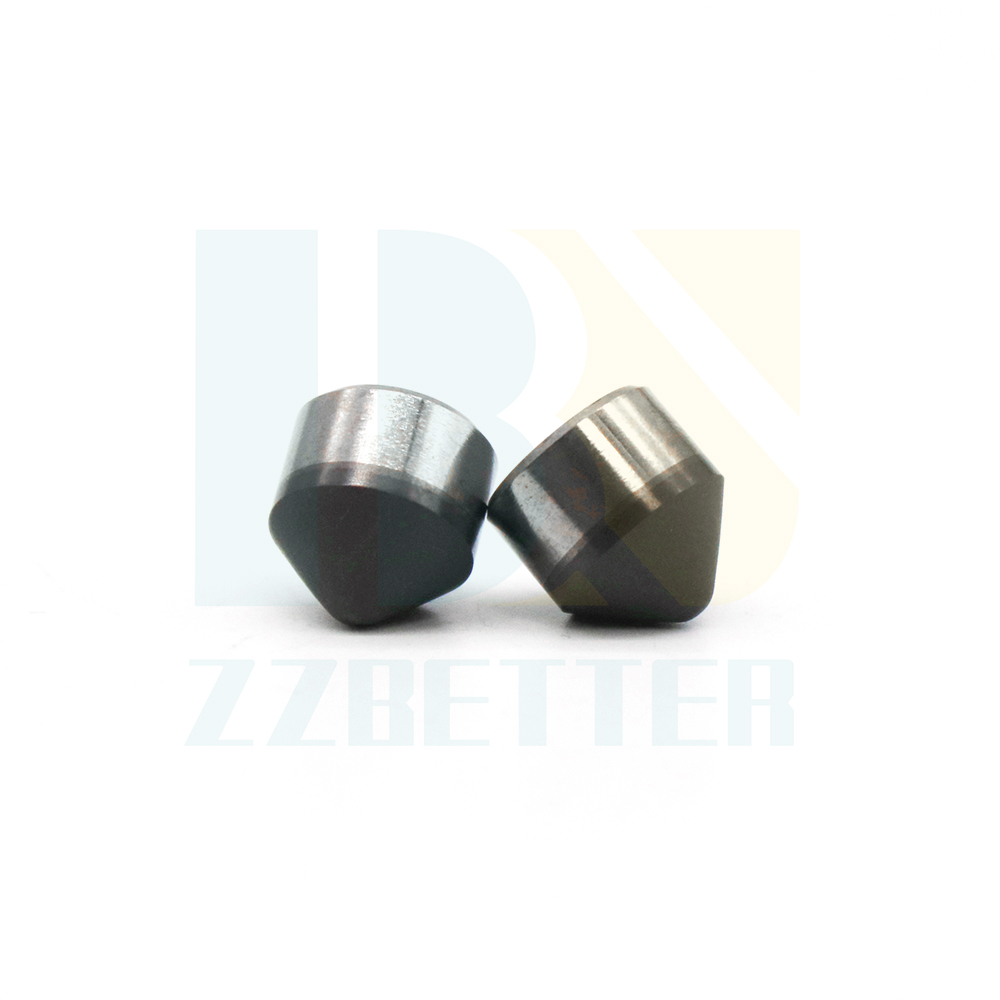

PDC conical cutters

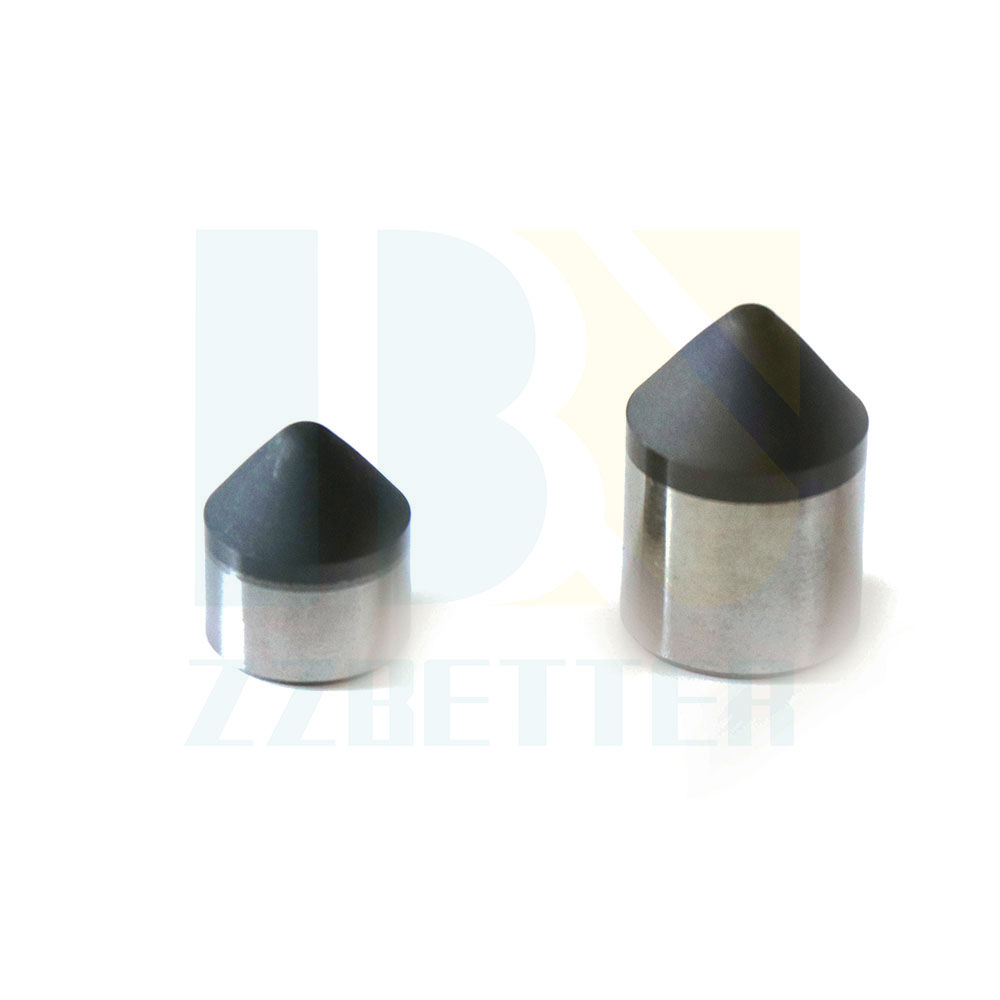

PDC conical cutters

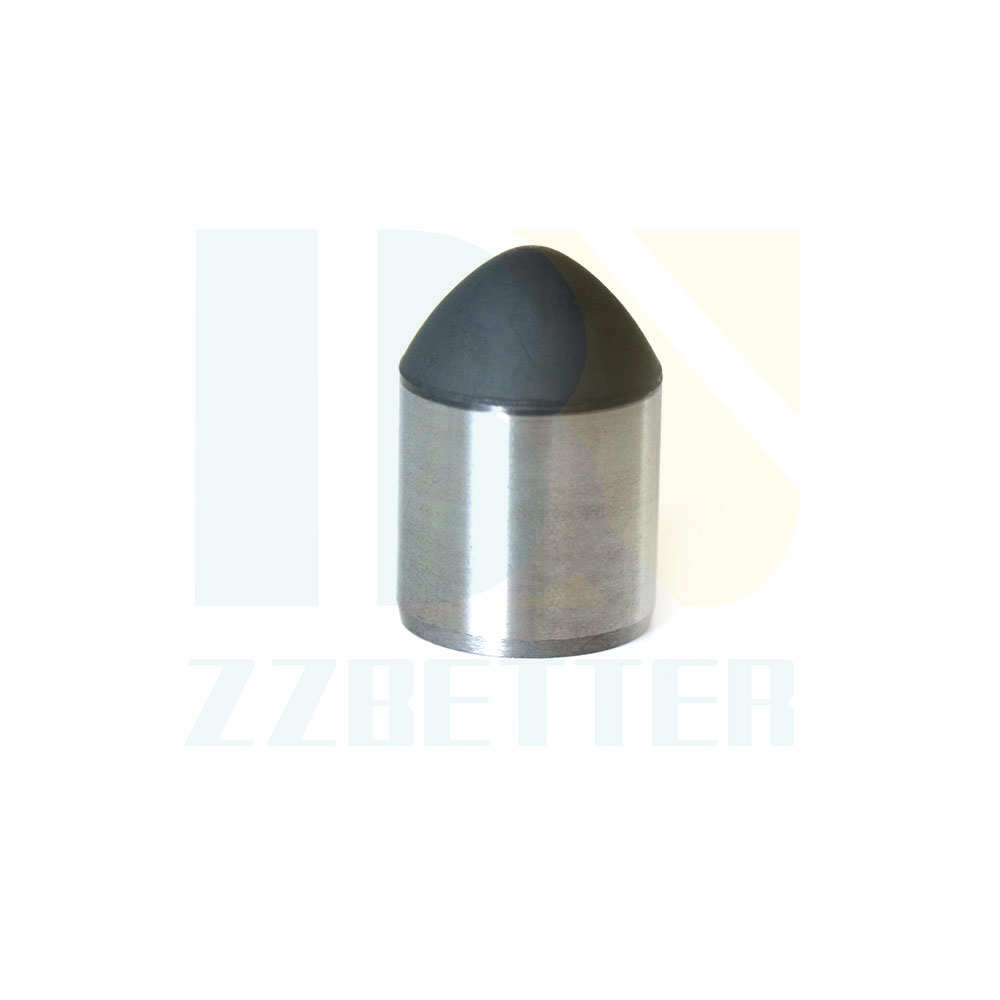

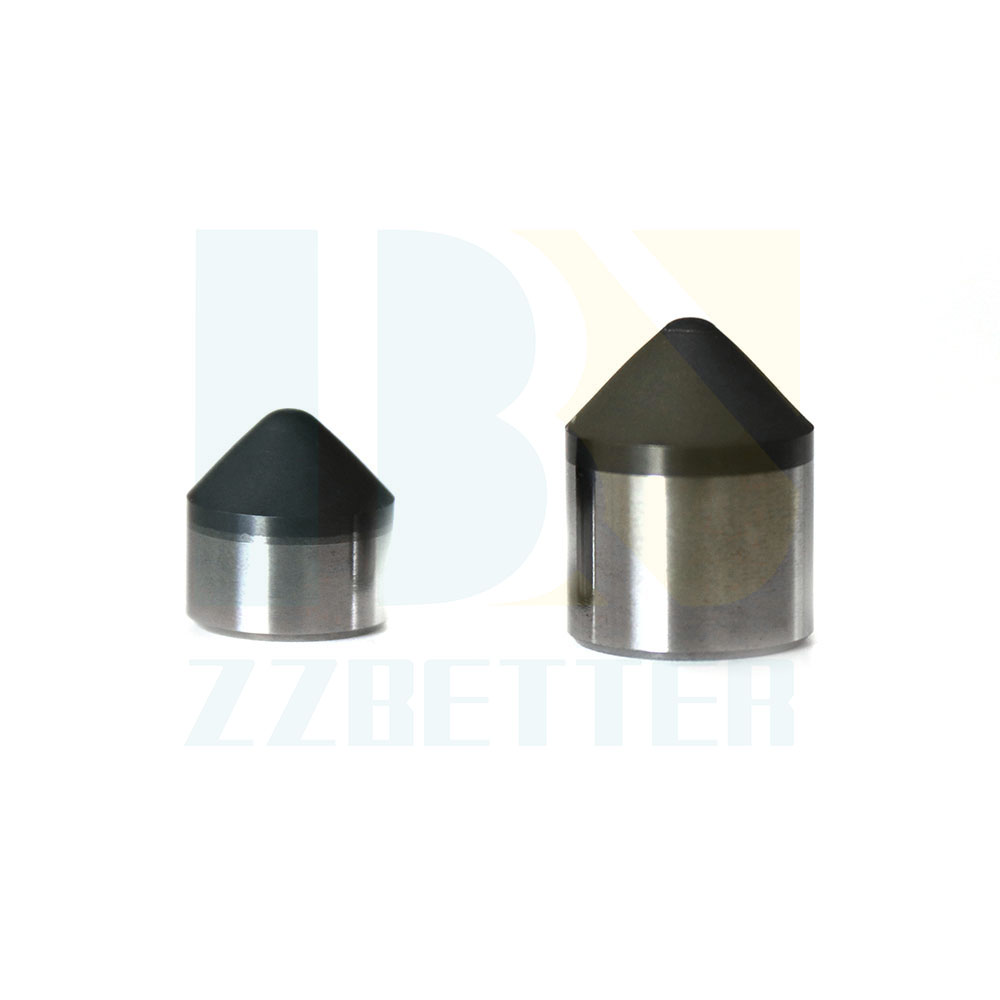

PDC conical cutters are polycrystalline diamond compact cutting elements featuring a tapered profile and a concentrated contact tip. They typically combine a polycrystalline diamond layer with a tungsten carbide substrate to provide a wear-resistant contact surface supported by a carbide base.

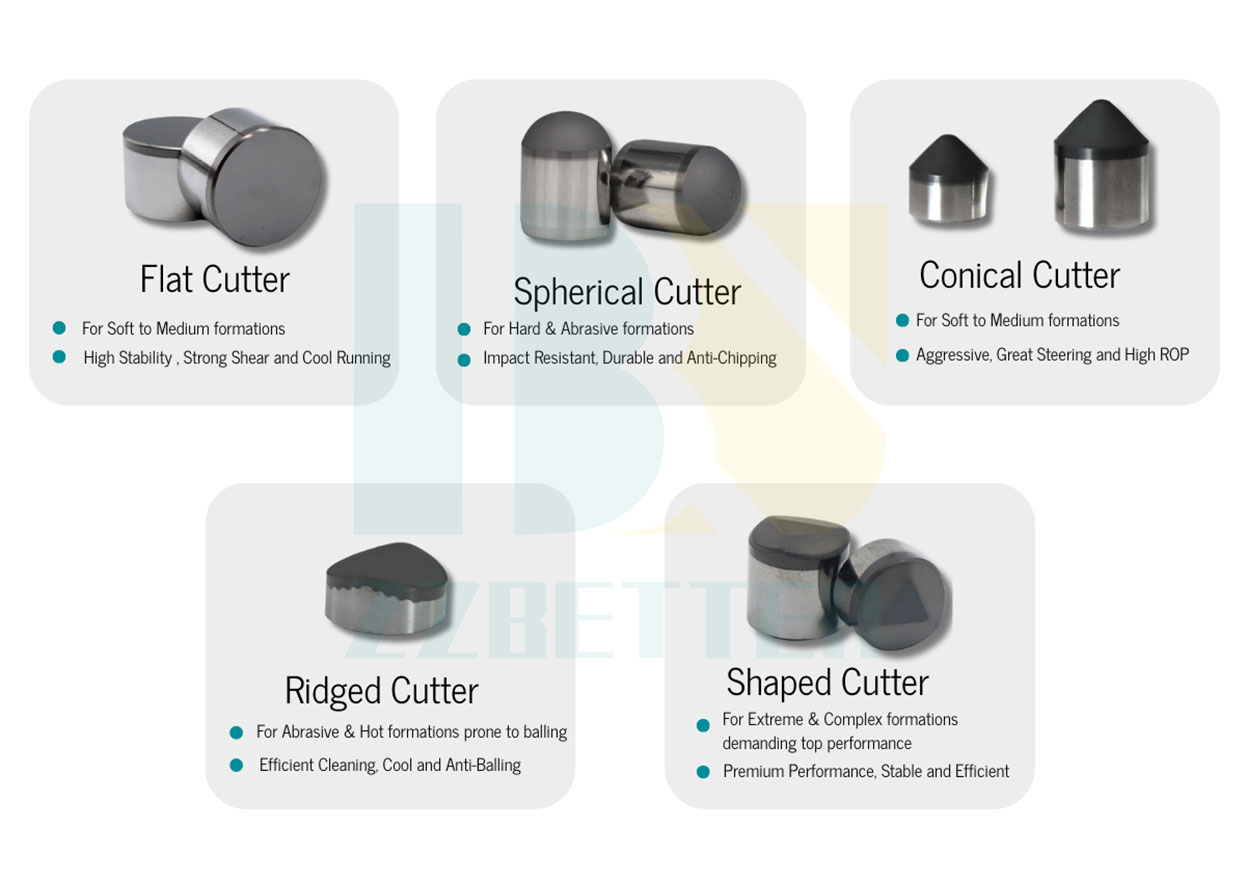

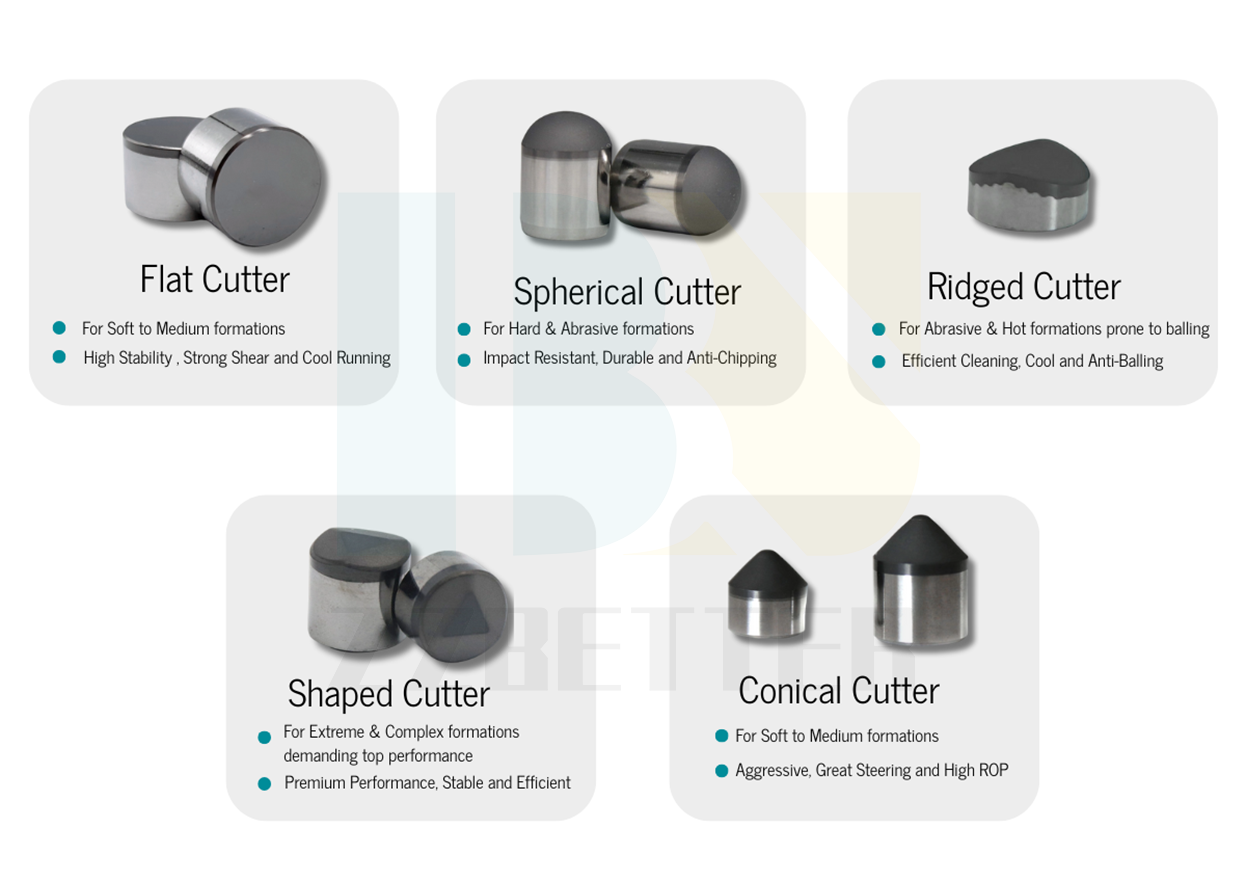

Unlike flat PDC cutters, which primarily remove rock through shearing, conical PDC cutters can generate localized contact stresses that contribute to rock indentation and fracture. The suitability depends on cutter geometry, bit design, formation properties, and operating conditions.

Drillbetter supplies PDC conical cutters for drilling tool manufacturers and industrial buyers. Cutter dimensions and application requirements should be reviewed before selecting a suitable product.

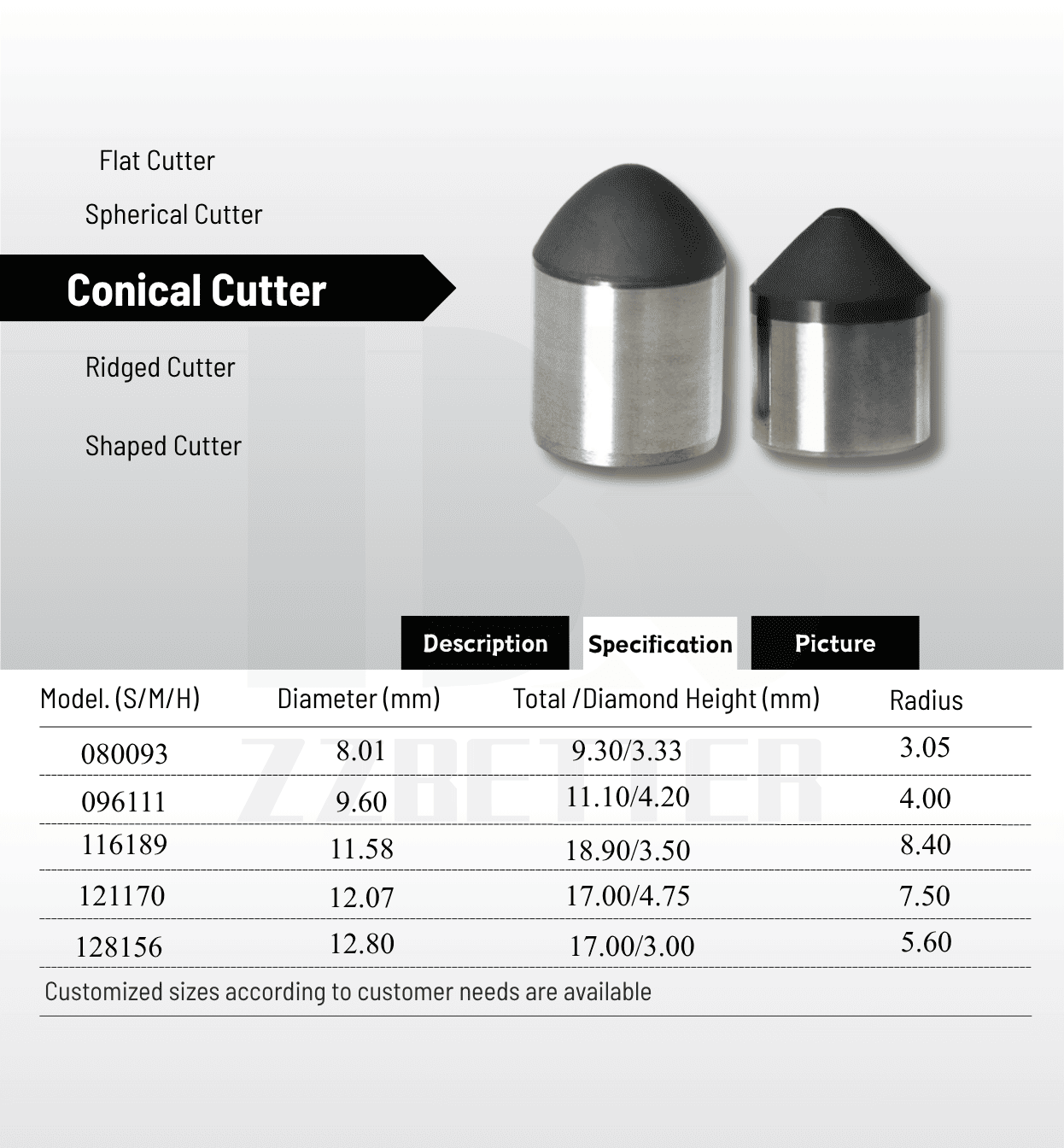

PDC Conical Cutter

Model No.

Diameter

(mm)

Total Height

(mm)

Diamond Height

(mm)

Radius

CC0809

8.01

9.3

3.33

3.05

CC0911

9.60

11.1

4.20

4

CC1119

11.58

18.9

3.50

8.4

CC1217

12.07

17.0

4.75

7.5

CC1317

12.80

17.0

3.00

5.6

How PDC Conical Cutters Work

The tapered geometry of a PDC conical cutter concentrates the applied load near its tip. When the cutter contacts the formation, localized compressive stresses can cause indentation, crushing, and crack initiation in the rock.

As the drill bit moves relative to the formation, the cutter may contribute to further rock fracture and material removal. The extent of these effects depends on cutter orientation, loading conditions, rock properties, and the overall bit cutting structure.

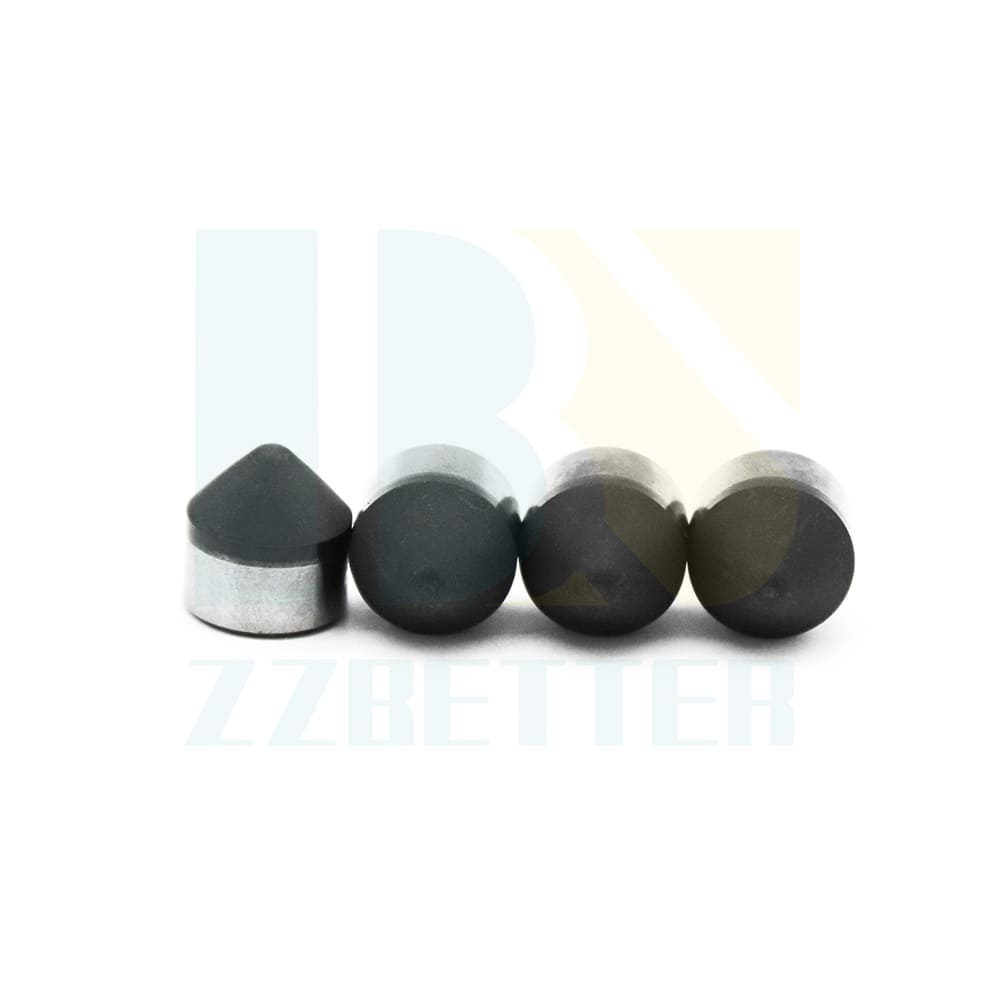

The conical cutter is normally fixed within the drilling tool rather than functioning as an independently rolling cutting element.PDC conical cutters

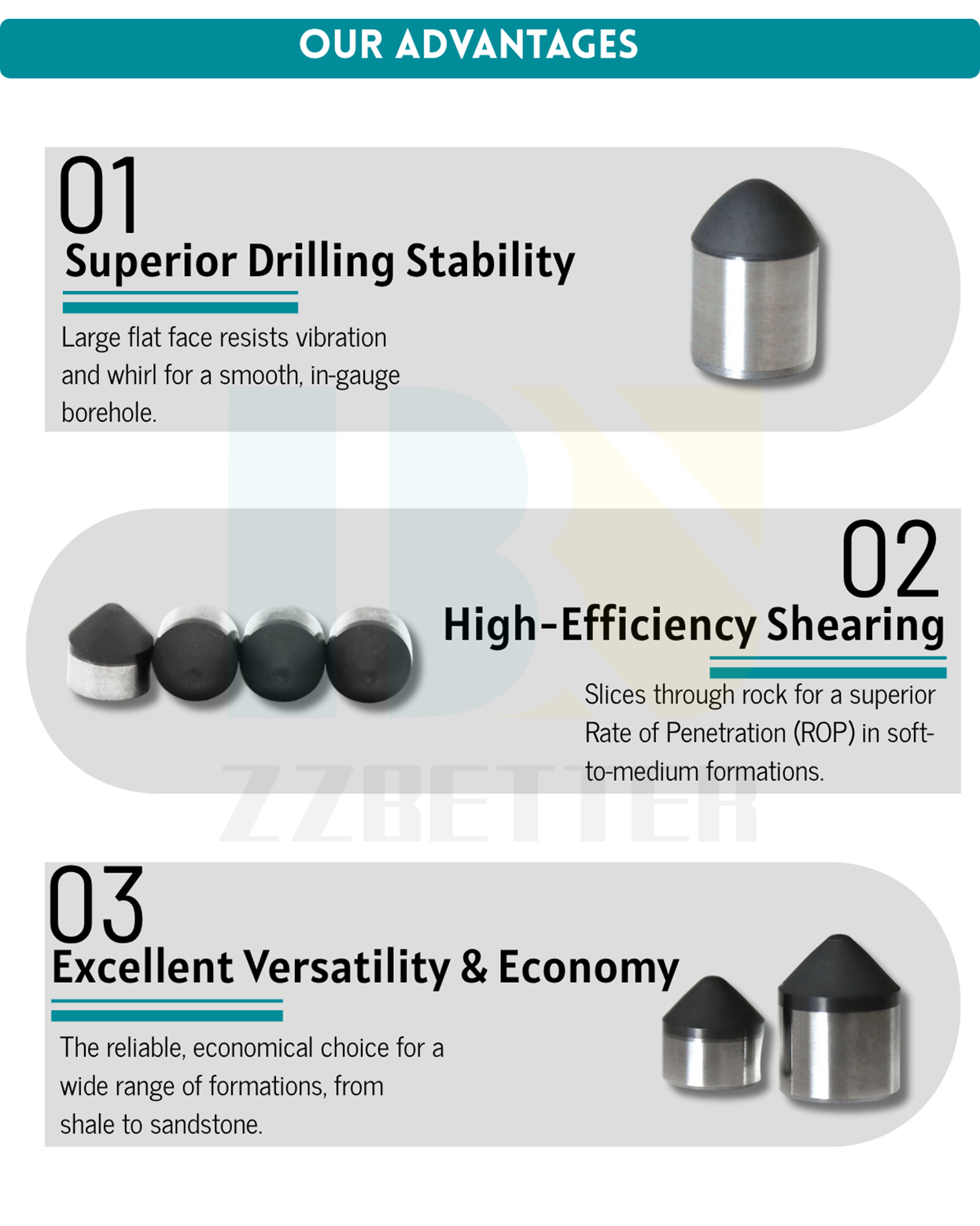

Key Features of PDC Conical Cutters

1. Tapered Cutting Geometry

The conical profile creates a concentrated contact region at the tip. This geometry can be considered for drilling applications where localized loading and rock fracture are important.

2. Polycrystalline Diamond Surface

The diamond layer provides a hard, wear-resistant contact surface. Actual wear behavior depends on the material grade, cutter geometry, formation abrasiveness, and operating conditions.

3. Tungsten Carbide Substrate

The carbide substrate supports the diamond structure and provides a mounting interface for integration into compatible drilling tools.

4. Application-Specific Cutter Selection

Conical cutter performance depends on factors such as tip geometry, cutter dimensions, mounting orientation, applied loads, and drilling parameters. No single cutter geometry is optimal for every rock formation.

PDC conical cutters

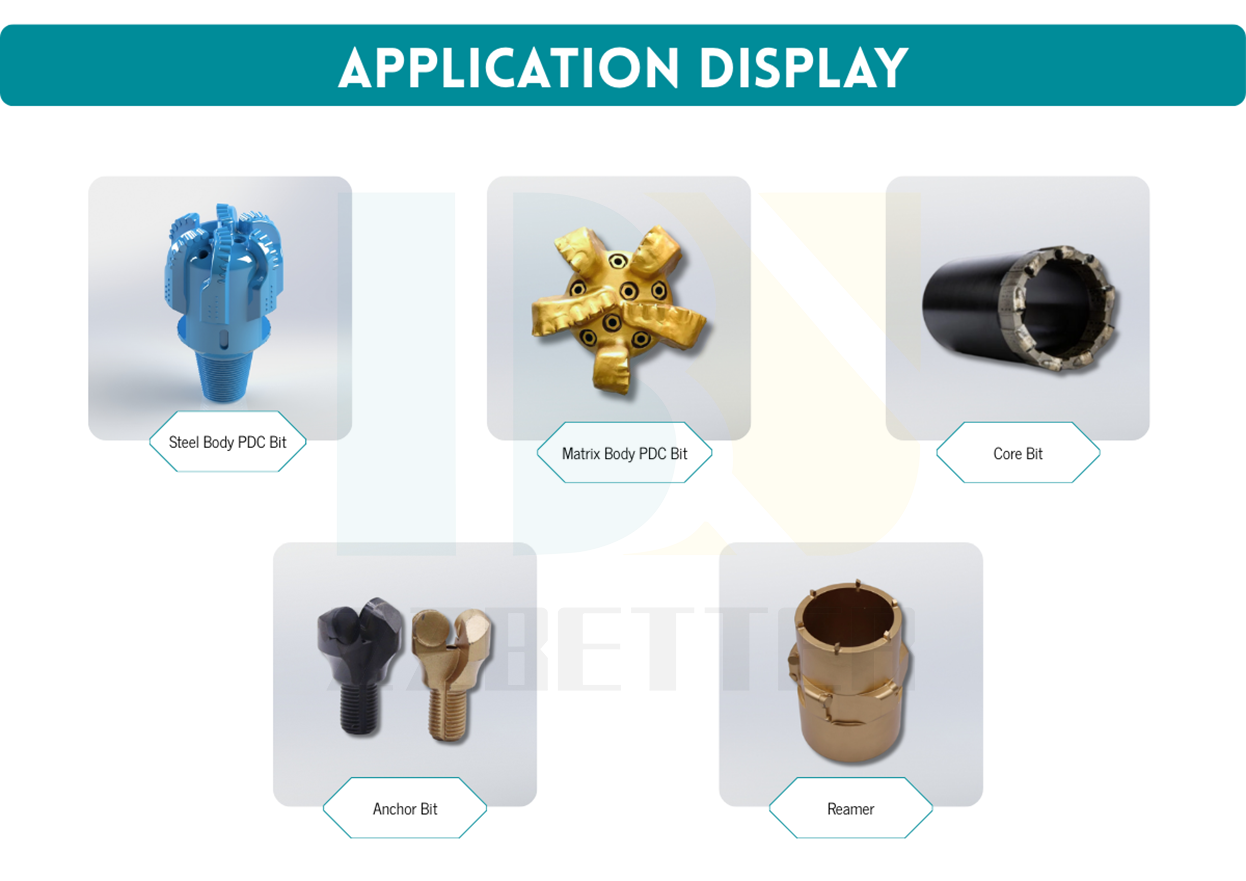

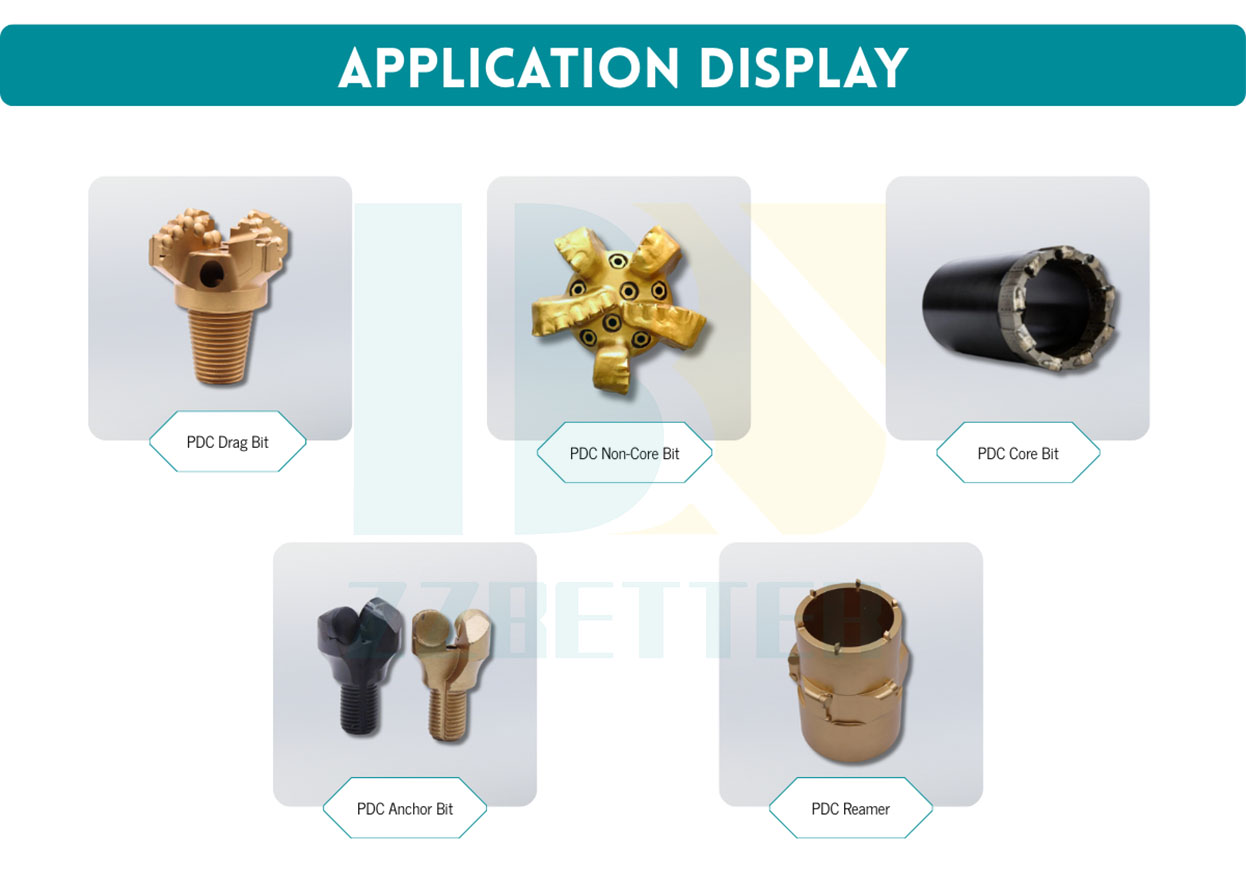

Applications of PDC Conical Cutters

PDC conical cutters may be considered for selected drilling applications, including:

-    Oil and gas PDC drill bits

-    Geothermal drilling tools

-    Selected hard-formation drilling applications

-    Specialized rock drilling cutting structures

-    Drilling tools incorporating different cutter geometries

Conical cutters may also be evaluated as part of specialized or hybrid cutting structures where the bit design requires localized rock indentation or fracture.

The suitability for directional drilling, abrasive formations, or impact-intensive service should be assessed against the specific bit design and operating conditions.

PDC conical cutters

PDC Conical Cutter Specifications

Important specifications to confirm before purchasing include:

-    Cutter diameter

-    Overall height

-    Tip and conical geometry

-    Diamond-layer configuration

-    Tungsten carbide substrate dimensions

-    Dimensional tolerances

-    Intended drilling application

-    Required order quantity

Please refer to the available product specifications or contact Drillbetter with drawings and dimensional requirements for confirmation.

PDC conical cutters

Why Choose Drillbetter for PDC Conical Cutter?

Drillbetter supplies PDC conical cutters for drilling tool manufacturers and industrial buyers.

1. PDC Cutter Selection

We help customers review cutter dimensions and application requirements to identify suitable PDC conical cutter options for their drilling tools.

2. Different Size Requirements

Our conical cutter series includes different diameter options for PDC drill bit types. Customers can provide their required dimensions and specifications for confirmation.

3. Purchasing Support

We assist customers with product information, specification inquiries, and quotations for PDC cutter procurement.


Contact Drillbetter with your required cutter dimensions, quantities, and application details to find suitable options and pricing.
