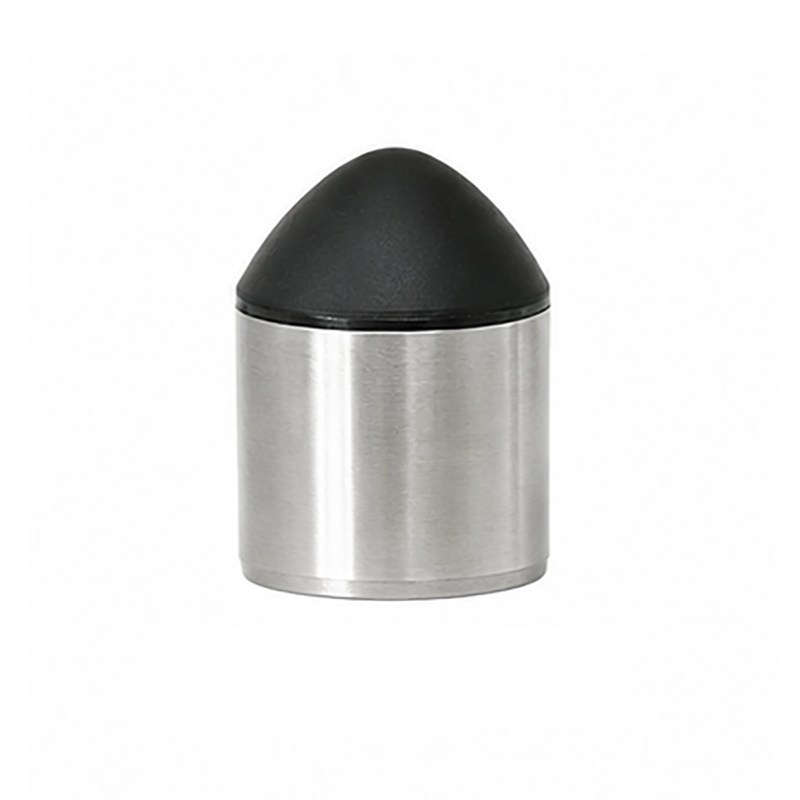

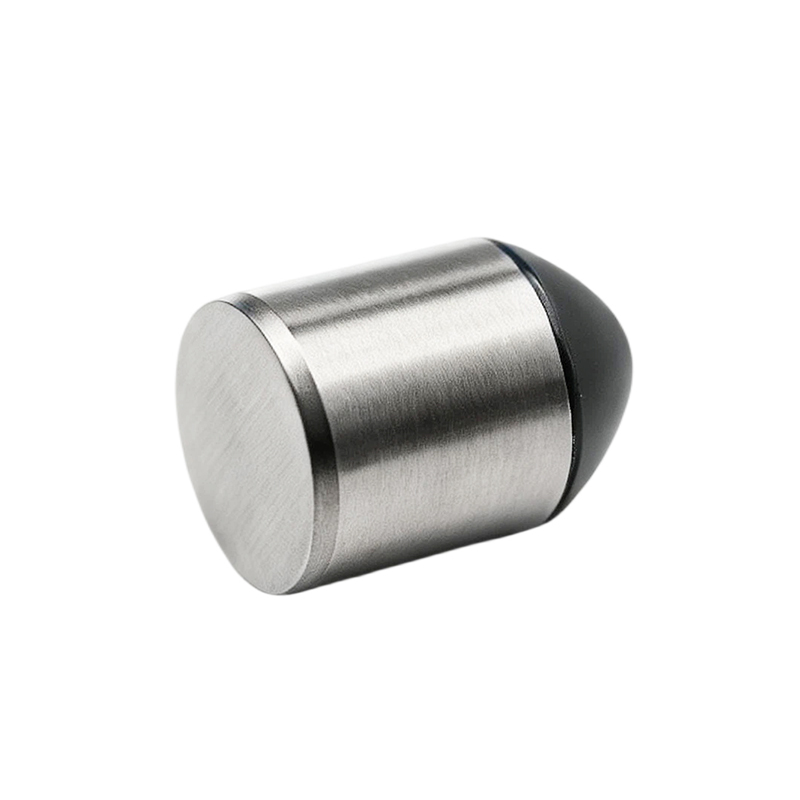

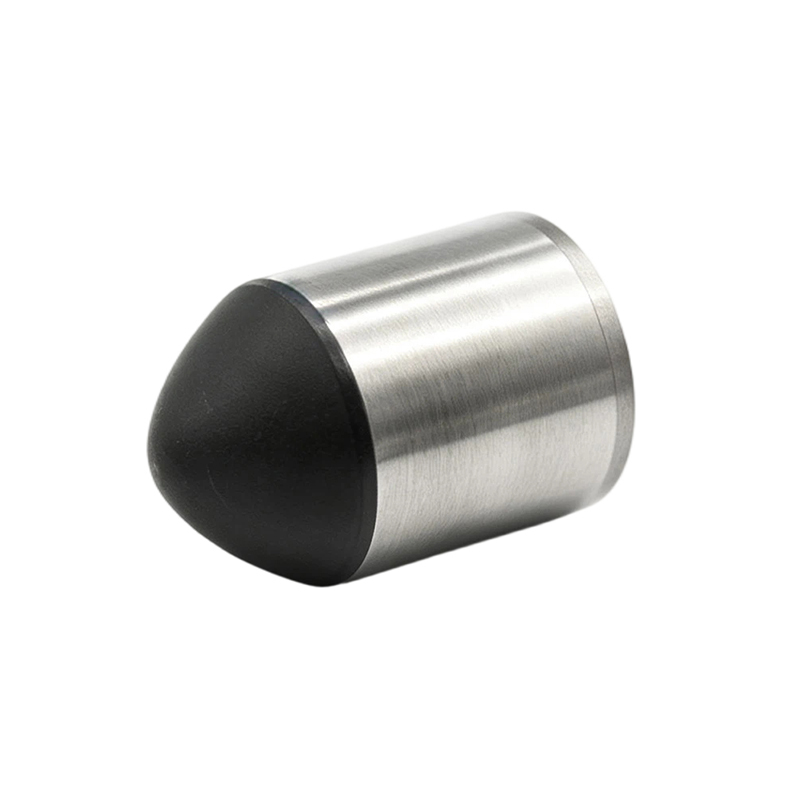

20mm-pdc-parabolic-cutter-pc2028
Diameter: 20.00 mm
Height: 28.0 mm
Diamond layer thickness: 7.64 mm
Quality Certification: ISO 9001
Request a quote for detailed information (MOQ, price, delivery)
Share:
20mm-pdc-parabolic-cutter-pc2028 :
From standard cutters to custom drilling solutions, we provide the industry's most reliable PDC products for extreme conditions.
Product Specification
· Model No.: PC2028
· Product Type: PDC Parabolic Cutter
· Tooth Shape: Parabolic
· Diameter (mm): 20.00
· Total Height (mm): 28.0
· Diamond Height (mm): 7.64
· Manufacturing Process: HPHT Sintering
· Substrate: Tungsten Carbide
· Application: The PC2028 PDC Parabolic Cutter is suitable for:
- Oil and gas drilling
- PDC drill bits
- Oil drilling tools
- Directional drilling tools
- Downhole drilling applications
- Formation cutting
- Rock drilling tools
Product Description
The PC2028 PDC Parabolic Cutter is a 20.00 mm large-size PDC cutting element with a 28.0 mm total height and 7.64 mm diamond height. Its substantial parabolic profile is designed for stable formation engagement, efficient rock cutting, and durable performance in oil drilling applications.
PC2028 PDC Parabolic Cutter for Oil & Gas Drilling
The PC2028 PDC Parabolic Cutter is the largest model in this PC series, developed for PDC drilling tools that require a large-format parabolic cutting element.
With a 20.00 mm diameter and 28.0 mm total height, PC2028 provides a substantial overall cutter configuration for large PDC bit cutting structures. Its size allows it to be considered for drill bit designs where larger shaped cutters are required to match the cutter layout and formation-cutting strategy.
The cutter features a 7.64 mm diamond height, providing a deep PDC working section for formation contact. The parabolic profile creates a curved cutting surface that supports controlled engagement with the rock during drilling.
PC2028 combines a polycrystalline diamond cutting layer with a tungsten carbide substrate. The PDC layer provides the primary cutting function and wear resistance, while the carbide substrate provides mechanical support for the cutter structure.
PC series
The PC series PDC Parabolic Cutters are available in various dimensions to meet different bit designs and rock cutting requirements. Standard models are listed below.
Model No. | Diameter (mm) | Total Height (mm) | Diamond Height (mm) | Radius |
PC0605 | 6.42 | 5.8 | 1.41 | / |
PC0807 | 8.01 | 7.1 | 2.14 | / |
PC1112 | 11.18 | 12.3 | 4.02 | / |
PC1419 | 14.36 | 19.4 | 6.52 | / |
PC1623 | 16.15 | 23.0 | 6.63 | / |
PC1823 | 18.15 | 22.9 | 5.90 | / |
PC1928 | 19.11 | 28.3 | 7.23 | / |
PC2028 | 20.00 | 28.0 | 7.64 | / |
Note: Custom heights and chamfer angles are available for OEM orders. | ||||
Key Features
- 20.00 mm cutter diameter
- 28.0 mm total height
- 7.64 mm diamond height
- Large-format parabolic PDC profile
- Deep diamond working section
- Polycrystalline diamond cutting layer
- High-strength tungsten carbide substrate
- Efficient formation engagement
- Excellent wear resistance
- Stable cutting performance
- Designed for oil drilling applications
Performance Advantages
Large-Format Cutter Design - The 20.00 mm diameter makes PC2028 the largest model in this PC series. Its large working configuration is intended for PDC bit designs that require substantial parabolic cutting elements.
Deep Diamond Working Section - The 7.64 mm diamond height provides a deep PDC working section for repeated contact with the formation and sustained cutting operations.
Controlled Parabolic Engagement - The curved working profile allows the cutter to interact with the formation through a shaped surface rather than a conventional flat cutting face. This geometry supports controlled rock engagement during drilling.
Strong Composite Construction - The PDC diamond layer is bonded to a tungsten carbide substrate, combining the hardness and wear resistance of polycrystalline diamond with the structural support of carbide.
PDC Diamond Cutting Technology
The PC2028 uses a large parabolic PDC cutting profile developed for specialized PDC drilling tools.
Its 20.00 mm diameter, 28.0 mm total height, and 7.64 mm diamond height provide a substantial cutter configuration for large-scale PDC bit designs.
Compared with conventional flat PDC cutters, the curved parabolic working surface provides a different formation-cutting geometry. This gives drill bit designers additional flexibility when developing cutter layouts and cutting structures.
The PDC diamond layer performs the primary formation cutting function, while the tungsten carbide substrate supports the cutter and its integration into the drilling tool.
OEM & Customization
We provide OEM and ODM services for PDC Parabolic Cutters according to specific drill bit designs and application requirements.
Customization options include:
· Cutter diameter
· Total height
· Diamond height
· Parabolic profile
· Diamond specifications
· Tungsten carbide substrate specifications
· Surface finishing
· Custom packaging
Customers can provide their cutter drawings, dimensions, or drill bit requirements for customized PDC cutting solutions.
